processor | |
processor manufacturer | Intel |
processor socket | LGA 1700 |
Compatible processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor slots | LGA 1700 |
Storage | |
Supported memory | DDR5-SDRAM |
Number of memory slots | 4 |
memory type | DIMM |
memory channels | Zweikanalig |
Eigenschaft | Ethernet/LAN |
Supported memory speed | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
RAM memory maximum | 192 GB |
storage controller | |
Supported storage drives | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Maximum supported number of HDD | 4 |
Number of supported storage drives | 7 |
RAID Level | 0, 1, 5, 10 |
graphic | |
Parallel processing technology | Nicht unterstützt |
Internal I/O ports | |
Number of USB 2.0 interfaces | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
SATA III connectors | 4 |
Number of chassis fan plugs | 3 |
Number of Molex connectors 4pin | 1 |
Number of COM connectors | 1 |
Thunderbolt headers | 1 |

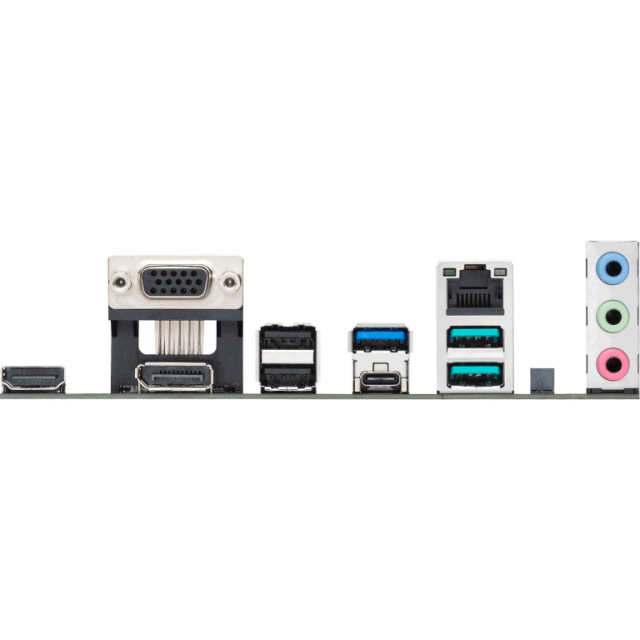

I/O ports on the back | |
Number of USB 2.0 ports | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 2 |
USB 3.2 Gen 2x2 Type-C number of ports | 1 |
Number of Ethernet LAN ports (RJ-45) | 1 |
Number of VGA (D-Sub) connections | 1 |
Number of HDMI ports | 1 |
HDMI-Version | 2.1 |
Number of DisplayPort connections | 1 |
DisplayPorts-Version | 1.4 |
headphone outputs | 1 |
network | |
Ethernet interfaces type | 2.5 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet |
features | |
motherboard chipset | Intel B760 |
audio channels | 7.1 Kanäle |
component for | PC |
Motherboardformfaktor | ATX |
Motherboard chipset family | Intel |
cooling | Passiv |
energy source | ATX |
Supports Windows operating systems | Windows 10 x64, Windows 11 |
expansion slots | |
PCI Express x1 (Gen 3.x) connectors | 2 |
PCI Express x16 slots (Gen 4.x) | 1 |
PCI Express x16 slots (Gen 5.x) | 1 |
Number of M.2 (M) slots | 3 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 128 Mbit |
package weight | 1,2 kg |
weight and dimensions | |
broad | 305 mm |
depth | 244 mm |
height | 36 mm |
scope of delivery | |
Supplied cables | SATA |
Other functions | |
Weight | 760 g |
