| processor | |
| processor manufacturer | Intel |
| processor socket | LGA 1700 |
| Compatible processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor slots | LGA 1700 |
| Maximum internal memory supported by the processor | 192 GB |
| Storage | |
| Supported memory | DDR5-SDRAM |
| Number of memory slots | 4 |
| memory type | DIMM |
| memory channels | Zweikanalig |
| Eigenschaft | Antenne enthalten |
| Supported memory speed | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz |
| Supported memory clock speed (max.) | 8266 MHz |
| RAM memory maximum | 192 GB |
| storage controller | |
| Supported storage drives | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Maximum supported number of HDD | 4 |
| Number of supported storage drives | 9 |
| RAID Level | 0, 1, 5, 10 |
| graphic | |
| Parallel processing technology | Nicht unterstützt |
| Maximum resolution | 4096 x 2304 Pixel |
| DirectX-Version | 12.0 |
| Internal I/O ports | |
| Number of USB 2.0 interfaces | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| SATA III connectors | 4 |
| Number of chassis fan plugs | 8 |
| Thunderbolt headers | 2 |

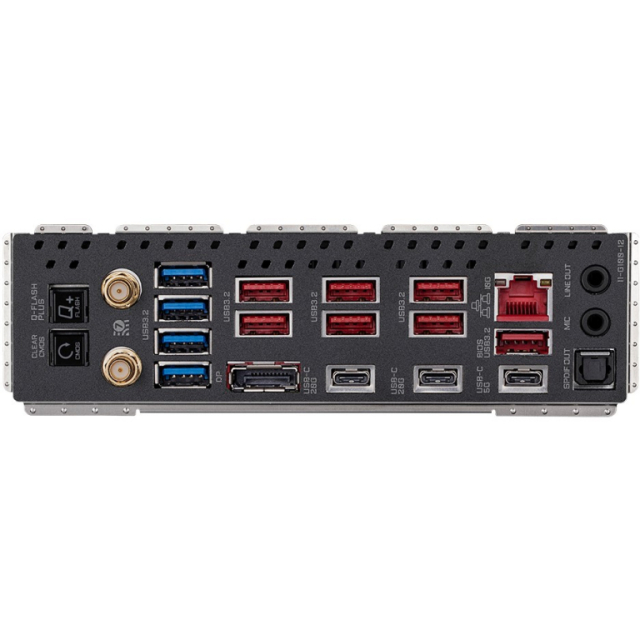

| I/O ports on the back | |
| USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 7 |
| USB 3.2 Gen 2x2 Type-C number of ports | 2 |
| Number of Ethernet LAN ports (RJ-45) | 1 |
| Number of DisplayPort connections | 1 |
| DisplayPorts-Version | 1.2 |
| headphone outputs | 1 |
| Optical audio digital output | 1 |
| WiFi AP antenna socket | 2 |
| USB plug | USB Typ-A, USB Typ-C |
| network | |
| Ethernet interfaces type | 10 Gigabit Ethernet |
| LAN-Controller | Marvell AQtion AQC113C |
| Top WLAN-Standard | Wi-Fi 7 (802.11be) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth-Version | 5.3 |
| features | |
| motherboard chipset | Intel Z790 Express |
| audio chip | Realtek ALC1220-VB |
| audio channels | 7.1 Kanäle |
| Product color | Schwarz |
| PC health monitoring | Ventilator, Geräusch, Temperatur, Spannung, Water cooling |
| component for | PC |
| Motherboardformfaktor | Erweitertes ATX |
| Motherboard chipset family | Intel |
| Supports Windows operating systems | Windows 11 x64 |
| expansion slots | |
| PCI Express x16 (Gen 3.x) connectors | 2 |
| PCI Express x16 slots (Gen 5.x) | 1 |
| Number of M.2 (M) slots | 5 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI-Version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System management BIOS (SMBIOS) version | 2.7 |
| logistic data | |
| Country of origin | Taiwan |
| Quantity per shipping carton | 1 Stück(e) |
| battery | |
| battery weight | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| number of battery cells | 1 |
| Rechargeable battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| battery type | CR2032 |
| package weight | 3,46 kg |
| weight and dimensions | |
| broad | 305 mm |
| depth | 260 mm |
| height | 35 mm |
| scope of delivery | |
| Supplied cables | SATA |
| Included software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
| warranty period | 3 Jahr(e) |
