processor | |
processor manufacturer | Intel |
processor socket | LGA 1700 |
Compatible processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor slots | LGA 1700 |
Maximum internal memory supported by the processor | 192 GB |
Storage | |
Supported memory | DDR5-SDRAM |
Number of memory slots | 4 |
memory type | DIMM |
memory channels | Zweikanalig |
Eigenschaft | Antenne enthalten |
ECC сompatibility | ECC & Nicht-ECC |
Supported memory speed | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
Supported memory clock speed (max.) | 7600 MHz |
RAM memory maximum | 192 GB |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
storage controller | |
Supported storage drives | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Maximum supported number of HDD | 4 |
Number of supported storage drives | 7 |
RAID Level | 0, 1, 5, 10 |
graphic | |
Parallel processing technology | Nicht unterstützt |
Maximum resolution | 4096 x 2304 Pixel |
DirectX-Version | 12.0 |
Internal I/O ports | |
Number of USB 2.0 interfaces | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
SATA III connectors | 4 |
Total number of SATA ports | 4 |
Number of EATX power plugs | 2 |
Thunderbolt headers | 2 |

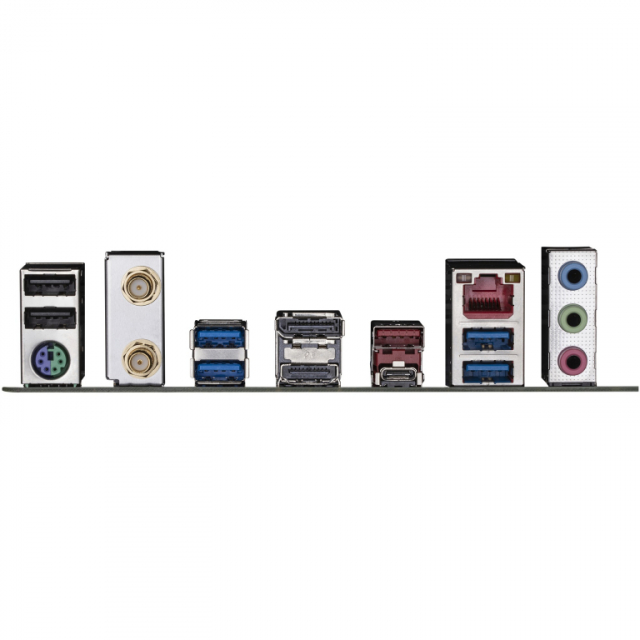

I/O ports on the back | |
Number of USB 2.0 ports | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 1 |
USB 3.2 Gen 2x2 Type-C number of ports | 1 |
Number of Ethernet LAN ports (RJ-45) | 1 |
Number of PS/2 connections | 1 |
Number of HDMI ports | 1 |
HDMI-Version | 2.1 |
Number of DisplayPort connections | 1 |
DisplayPorts-Version | 1.2 |
headphone outputs | 1 |
WiFi AP antenna socket | 2 |
USB plug | USB Typ-A, USB Typ-C |
network | |
Ethernet interfaces type | 2.5 Gigabit Ethernet |
LAN-Controller | Realtek RTL8125 |
Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Bluetooth-Version | 5.3 |
features | |
motherboard chipset | Intel Z790 Express |
audio chip | Realtek ALC897 |
audio channels | 7.1 Kanäle |
Product color | Braun |
PC health monitoring | Ventilator, Temperatur, Spannung, Water cooling |
component for | PC |
Motherboardformfaktor | ATX |
Motherboard chipset family | Intel |
energy source | ATX |
Supports Windows operating systems | Windows 10 x64, Windows 11 x64 |
expansion slots | |
PCI Express x1 (Gen 3.x) connectors | 2 |
PCI Express x16 (Gen 3.x) connectors | 1 |
PCI Express x16 slots (Gen 4.x) | 1 |
PCI Express x16 slots (Gen 5.x) | 1 |
Number of M.2 (M) slots | 3 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI-Version | 5.0 |
Desktop Management Interface (DMI) version | 2.7 |
System management BIOS (SMBIOS) version | 2.7 |
logistic data | |
Country of origin | China |
Quantity per shipping carton | 1 Stück(e) |
battery | |
battery weight | 3 g |
Lithiumgewicht pro Akku | 0,07 g |
number of battery cells | 1 |
Rechargeable battery technology | Lithium-Manganese Dioxide (LiMnO2) |
battery type | CR2032 |
package weight | 1,84 kg |
weight and dimensions | |
broad | 305 mm |
depth | 244 mm |
height | 35 mm |
scope of delivery | |
Supplied cables | SATA |
Included software | Norton® Internet Security (OEM version)LAN bandwidth management software |
Technical details | |
warranty period | 3 Jahr(e) |
