Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen 7000 Series |
Processor Socket | Socket AM5 |
Graphics card family | AMD |
On-board graphics card | Yes |
Graphics card | AMD RDNA 2 |
Certification | FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required) |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 11 |
MOTHERBOARD CHIPSET | AMD A620 |
Motherboard form factor | micro ATX |
Motherboard chipset family | AMD |
Number of memory slots | 4 |
Memory slots type | DIMM |
Maximum internal memory | 128 GB |
Memory channels | Dual-channel |
Supported memory types | DDR5-SDRAM |
Depth | 244 mm |
Width | 244 mm |
LAN controller | Realtek 8111H |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | Wi-Fi 4 (802.11n) |
Bluetooth Version | 5.2 |
Bluetooth | Yes |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
Power fan connector | Yes |
TPM connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 4 |
RGB LED pin header | Yes |
USB 2.0 connectors | 4 |
BIOS Type | UEFI AMI |
RAID levels | 10 |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA |
Number of HDDs supported | 4 |
Number of storage drives supported | 3 |
Raid Support | Yes |

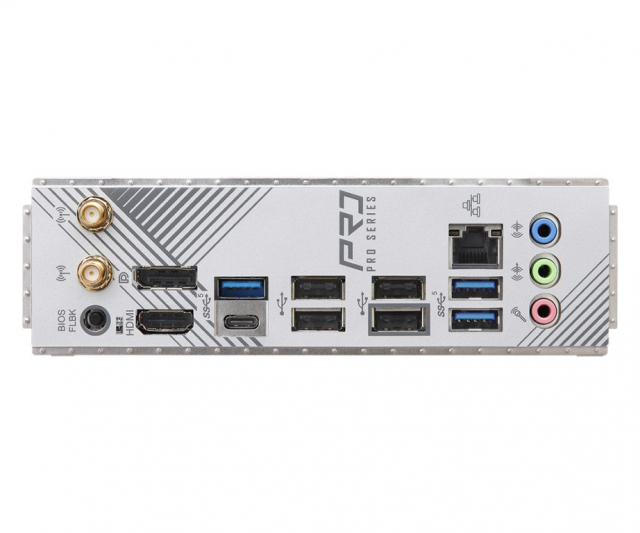

USB 2.0 ports quantity | 4 |
Microphone in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
DisplayPort version | 1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
DisplayPorts quantity | 1 |
Line-in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
WiFi-AP antenna jack | 2 |
HDMI version | 2.1 |
Number of M.2 (M) slots | 3 |
PCI Express x16 (Gen 4.x) slots | 1 |
