Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
Processor manufacturer | AMD |
Processor Socket | Socket AM4 |
Maximum number of SMP processors | 1 |
Graphics card family | AMD |
HDCP | Yes |
DirectX version | 12.0 |
Graphics card | Radeon Vega |
On-board graphics card | Yes |
MOTHERBOARD CHIPSET | AMD B550 |
audio chip | Realtek ALC887 |
Motherboard chipset family | AMD |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Supported memory clock speeds | 4133 |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Maximum internal memory | 64 GB |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Depth | 201 mm |
Width | 230 mm |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Wake-on-LAN ready | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
CPU fan connector | Yes |
TPM connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Number of chassis fan connectors | 2 |
Front panel audio connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |
BIOS Type | UEFI AMI |
Drivers included | Yes |
Supported storage drive interfaces | M.2, Serial ATA III |

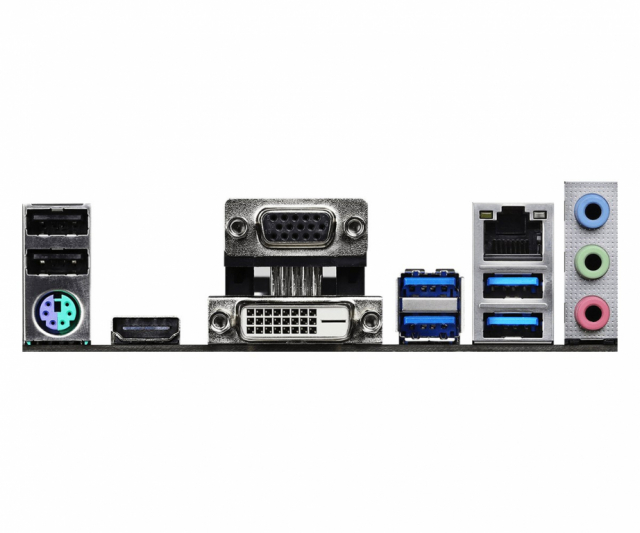

USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
