Compatible processor series | AMD Ryzen™ 7 |
Processor manufacturer | AMD |
Processor Socket | Socket AM5 |
Windows operating systems supported | Windows 10 x64 |
Audio output channels | 7.1 channels |
MOTHERBOARD CHIPSET | AMD B650 |
Motherboard form factor | micro ATX |
audio chip | Realtek ALC897 |
Motherboard chipset family | AMD |
Maximum internal memory | 64 GB |
Number of memory slots | 2 |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Unbuffered memory | Yes |
Width | 244 mm |
Depth | 226 mm |
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
LAN controller | Realtek RTL8125-BG |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
Thunderbolt headers | 1 |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
TPM connector | Yes |
CPU fan connector | Yes |
USB 2.0 connectors | 2 |
BIOS Type | EFI AMI |
RAID levels | 1 |
Raid Support | Yes |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |

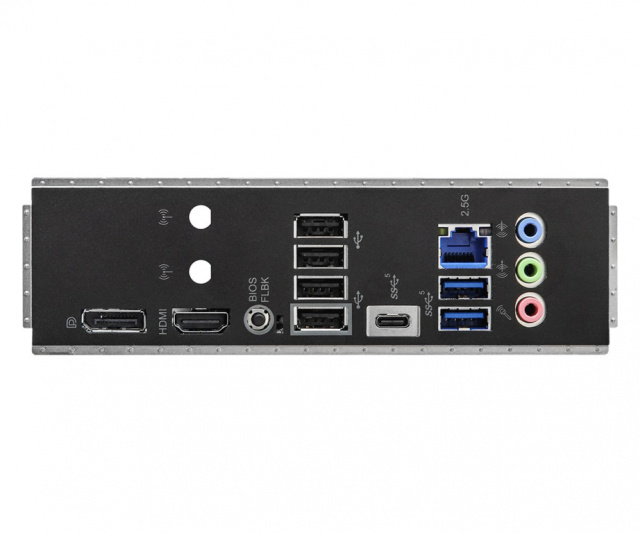

HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Line-in | Yes |
PCI Express x16 (Gen 4.x) slots | 1 |
Number of M.2 (M) slots | 1 |
PCI Express x1 (Gen 4.x) slots | 1 |
