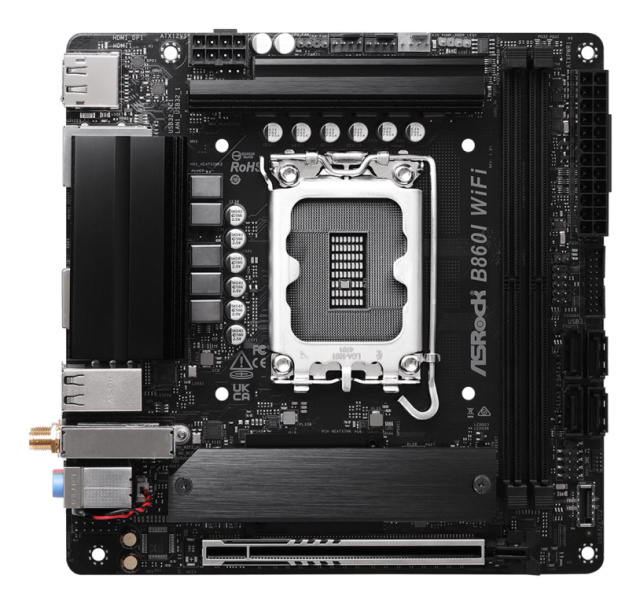

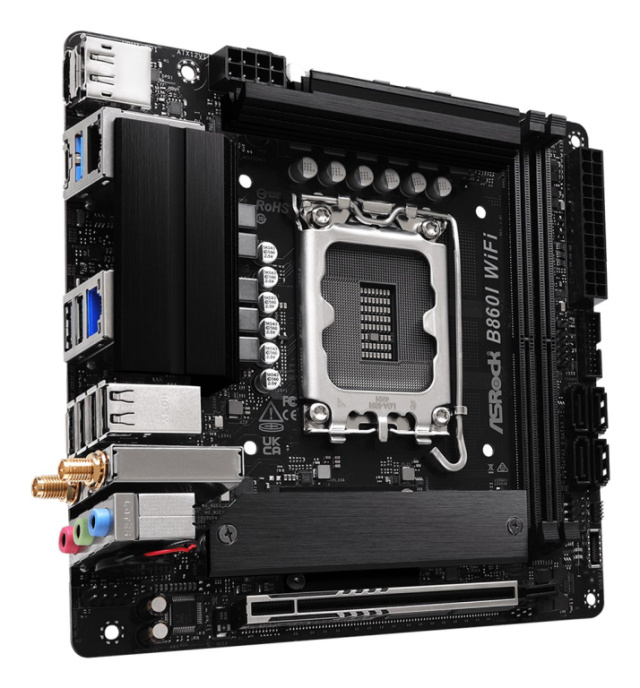

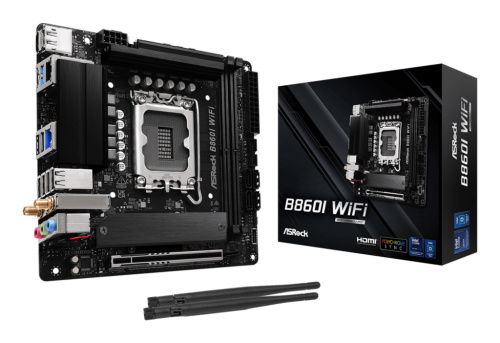

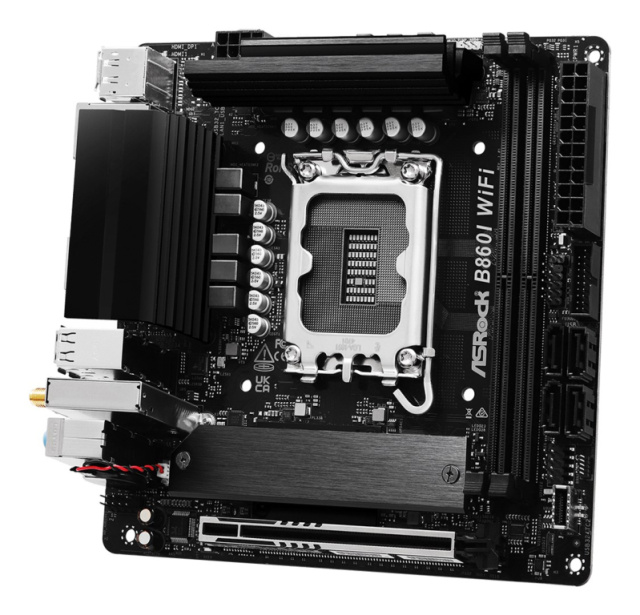

Processor Socket | LGA 1851 (Socket V1) |
Processor manufacturer | Intel |
Graphics card family | Intel |
On-board graphics card | Yes |
audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 11 x64 |
Motherboard form factor | mini ITX |
MOTHERBOARD CHIPSET | Intel B860 |
Motherboard chipset family | Intel |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Maximum internal memory | 128 GB |
Memory slots type | DIMM |
Unbuffered memory | Yes |
Number of memory slots | 2 |
ECC сompatibility | Non-ECC |
Width | 170 mm |
Depth | 170 mm |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth Version | 5.3 |
LAN controller | Dragon RTL8125BG |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Bluetooth | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 4 |
RGB LED pin header | Yes |
EPS power connector (8-pin) | Yes |
Front panel audio connector | Yes |
Number of chassis fan connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of EPS power connectors (8-pin) | 1 |
Number of CPU fan connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 1 |
Number of RGB LED pin headers | 1 |
BIOS Type | UEFI AMI |
CABLES INCLUDED | SATA |
Screws included | Yes |
RAID levels | 0 |
Raid Support | Yes |
Supported storage drive interfaces | M.2, SATA III |
DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Line-in | Yes |
Microphone in | Yes |
DisplayPort version | 1.4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Warnings | When disposing of the product, follow local regulations for the recycling of electronics. |
