Supported processors | Intel® Core™ 10th generation |
Processor manufacturer | Intel |
Processor Socket | LGA 1200 |
Maximum Resolution | 4096 x 2304 pixels |
MOTHERBOARD CHIPSET | Intel® H370 |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 x64 |
Supported memory clock speeds | 2933 |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Memory slots type | DIMM |
Number of memory slots | 2 |
Maximum internal memory | 64 GB |
Width | 226 mm |
Depth | 188 mm |
Wake-on-LAN ready | Yes |
LAN controller | Realtek 8111H |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Front panel audio connector | Yes |
USB 2.0 connectors | 2 |
ATX Power connector (24-pin) | Yes |
TPM connector | Yes |
12V power connector | Yes |
Number of SATA III connectors | 4 |
Number of COM connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
CPU fan connector | Yes |
BIOS Type | UEFI |
RAID levels | 5 |
Raid Support | Yes |
Number of storage drives supported | 4 |
Supported storage drive interfaces | M.2, SATA III |

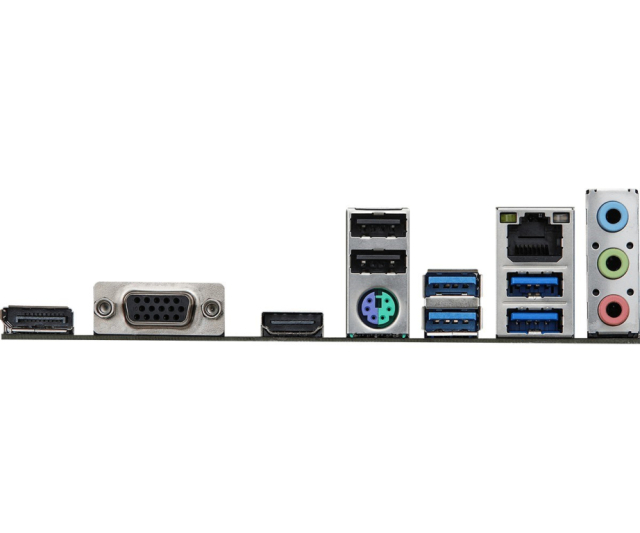

DisplayPorts quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
USB 2.0 ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
PCI Express x1 (Gen 3.x) slots | 1 |
Number of M.2 (E) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
