Processor Socket | LGA 1200 |
Maximum number of SMP processors | 1 |
Processor manufacturer | Intel |
Compatible processor series | Intel® Core™ i7 |
MOTHERBOARD CHIPSET | Intel H470 |
Audio output channels | 7.1 channels |
audio chip | Realtek ALC897 |
Motherboard form factor | micro ATX |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Number of memory slots | 2 |
Memory channels | Dual-channel |
Supported memory clock speeds | 2400 |
Maximum internal memory | 64 GB |
Depth | 198 mm |
Width | 231 mm |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek 8111H |
Wi-Fi | No |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
CPU fan connector | Yes |
TPM connector | Yes |
USB 2.0 connectors | 2 |
BIOS Type | UEFI AMI |
Number of HDDs supported | 4 |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |

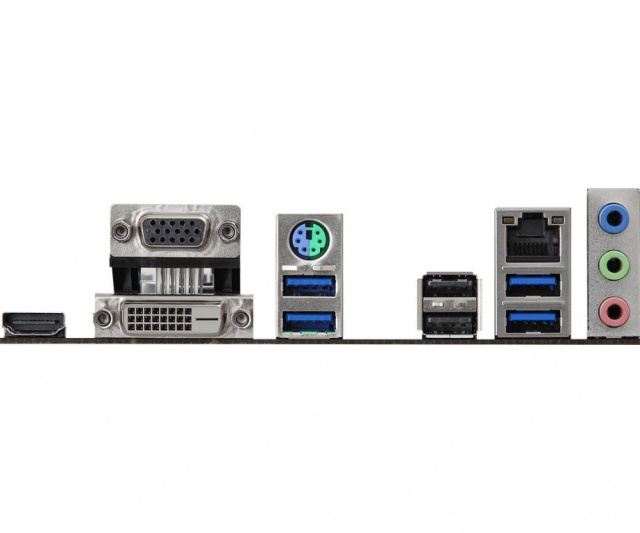

VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
PS/2 ports quantity | 2 |
DVI-D ports quantity | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
