Processor Socket | Socket AM4 |
Compatible processor series | AMD Ryzen™ 5 |
Processor manufacturer | AMD |
Windows operating systems supported | Windows 10 x64 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Motherboard chipset family | AMD |
audio chip | Realtek ALC892 / Realtek ALC897 |
MOTHERBOARD CHIPSET | AMD B450 |
Supported memory types | DDR4 DIMN |
Unbuffered memory | No |
Memory slots type | DIMM |
Maximum internal memory | 128 GB |
Number of memory slots | 4 |
Width | 244 mm |
Depth | 244 mm |
LAN controller | Realtek RTL8111H |
Wi-Fi | Yes |
Ethernet interface type | 1000 Gigabit Ethernet |
Ethernet LAN | Yes |
EPS power connector (8-pin) | Yes |
USB 2.0 connectors | 2 |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 4 |
Front panel audio connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
CPU fan connector | Yes |
TPM connector | Yes |
ATX Power connector (24-pin) | Yes |
BIOS Type | UEFI AMI |
Raid Support | Yes |
Supported storage drive types | HDD & SSD |
RAID levels | 0 |
Supported storage drive interfaces | Ultra M.2 |

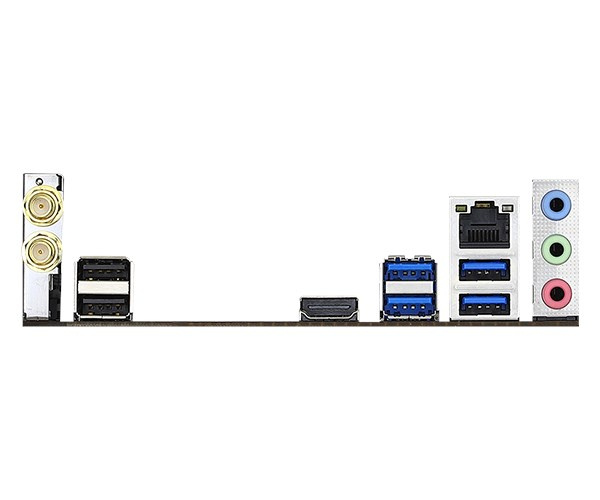

Ethernet LAN (RJ-45) ports | 1 |
Microphone in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Line-in | Yes |
HDMI ports quantity | 1 |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
PCI Express x16 (Gen 4.x) slots | 2 |
PCI Express x1 (Gen 4.x) slots | 1 |
Number of M.2 (M) slots | 1 |
