Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen™ 7 |
Processor Socket | Socket AM5 |
Motherboard form factor | micro ATX |
Windows operating systems supported | Windows 11 |
Power source type | ATX |
MOTHERBOARD CHIPSET | AMD B650 |
Motherboard chipset family | AMD |
Audio output channels | 7.1 channels |
ECC сompatibility | ECC & Non-ECC |
Supported memory clock speeds | 6000 |
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Width | 244 mm |
Depth | 244 mm |
Bluetooth | Yes |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Ethernet LAN | Yes |
Wi-Fi standards | 802.11a |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth Version | 5.2 |
Peripheral (Molex) power connectors (4-pin) | 4 |
Power fan connector | Yes |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA connectors | 4 |
S/PDIF out connector | Yes |
Number of COM connectors | 1 |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 3 |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Front panel connector | Yes |
Total number of SATA connectors | 4 |
TPM connector | Yes |
12V power connector | Yes |
RGB LED pin header | Yes |
Audio connector | Yes |
BIOS Type | UEFI AMI |
Clear CMOS button | Yes |
Bundled software | ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
CABLES INCLUDED | SATA |
RAID levels | 10 |
Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
Supported storage drive types | HDD & SSD |
Raid Support | Yes |
Number of storage drives supported | 2 |
Number of HDDs supported | 4 |

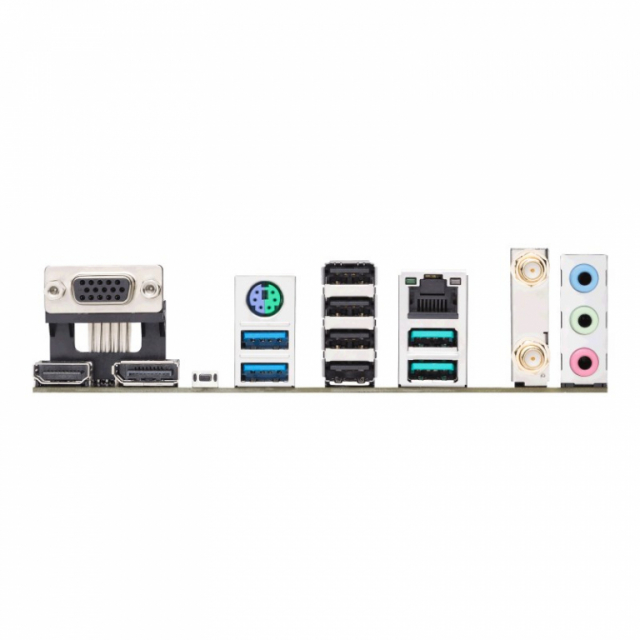

DisplayPorts quantity | 1 |
USB connector type | USB Type-A |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
Microphone in | Yes |
VGA (D-Sub) ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Headphone outputs | 1 |
Line-in | Yes |
PCI Express x16 (Gen 4.x) slots | 3 |
