Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Core™ i3 |
Processor manufacturer | Intel |
Processor Socket | LGA 1700 |
Parallel processing technology support | Not supported |
Audio output channels | 7.1 channels |
MOTHERBOARD CHIPSET | Intel B760 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Windows operating systems supported | Windows 10 x64 |
Supported memory clock speeds | 2933 |
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Supported memory clock speed (max) | 5333 MHz |
Width | 244 mm |
Depth | 244 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
S/PDIF out connector | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 2 |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 4 |
EPS power connector (8-pin) | Yes |
Front panel audio connector | Yes |
USB 2.0 connectors | 2 |
TPM connector | Yes |
Number of COM connectors | 1 |
12V power connector | Yes |
RGB LED pin header | Yes |
BIOS Type | UEFI AMI |
CABLES INCLUDED | SATA |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0 |
Raid Support | Yes |
Number of storage drives supported | 6 |

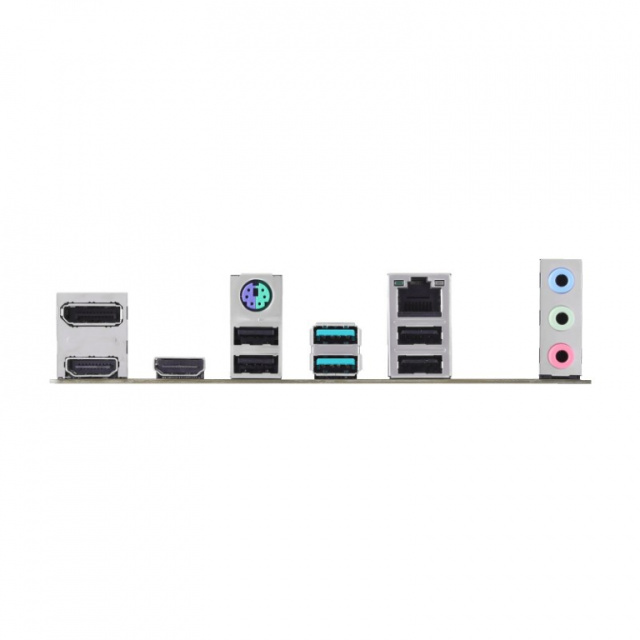

DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Headphone outputs | 3 |
Microphone in | Yes |
PS/2 ports quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 2 |
PCI Express x1 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 3 |
