Supported processor sockets | Socket AM5 |
Processor Socket | Socket AM5 |
Compatible processor series | AMD Ryzen™ 7 |
Processor manufacturer | AMD |
Parallel processing technology support | Not supported |
On-board graphics card | No |
Motherboard form factor | ATX |
Motherboard chipset family | AMD |
audio chip | Realtek ALC4080 |
Product colour | Black |
Audio output channels | 7.1 channels |
MOTHERBOARD CHIPSET | AMD B650 |
Windows operating systems supported | Windows 11 x64 |
Supported memory clock speeds | 6400 |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Number of memory slots | 4 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Width | 305 mm |
Depth | 244 mm |
Bluetooth | Yes |
LAN controller | Intel I225-V |
Bluetooth Version | 5.2 |
Ethernet interface type | 2.5 Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
S/PDIF out connector | Yes |
Thunderbolt headers | 1 |
USB 2.0 connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
EPS power connector (8-pin) | Yes |
Chassis intrusion connector | Yes |
Number of COM connectors | 1 |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 4 |
12V power connector | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
RGB LED pin header | Yes |
BIOS Type | UEFI AMI |
Clear CMOS button | Yes |
Package width | 280 mm |
PACKAGE WEIGHT | 9 kg |
Package depth | 265 mm |
Package height | 71 mm |
CABLES INCLUDED | SATA |
Supported storage drive types | HDD & SSD |
Raid Support | Yes |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0 |

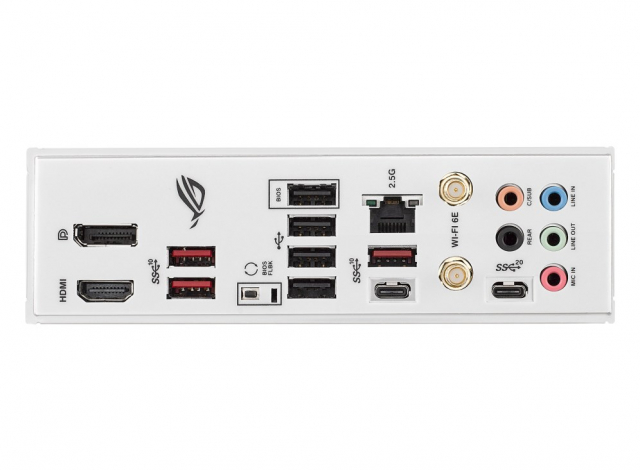

DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
Headphone outputs | 3 |
Microphone in | Yes |
Line-in | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
Number of M.2 (M) slots | 3 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x1 (Gen 4.x) slots | 2 |
