Compatible processor series | AMD Ryzen 5 7th Gen |
Processor manufacturer | AMD |
Processor Socket | Socket AM5 |
On-board graphics card | No |
Motherboard chipset family | AMD |
MOTHERBOARD CHIPSET | AMD A620 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Cooling type | Passive |
Windows operating systems supported | Windows 11 |
Memory channels | Dual-channel |
Supported memory clock speeds | 5000 |
Unbuffered memory | Yes |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Maximum internal memory | 128 GB |
Width | 244 mm |
Height | 50 mm |
Depth | 244 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth | Yes |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11b |
Bluetooth Version | 5.3 |
EPS power connector (8-pin) | Yes |
Front panel audio connector | Yes |
CPU fan connector | Yes |
S/PDIF out connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
RGB LED pin header | Yes |
Number of COM connectors | 1 |
Number of SATA III connectors | 4 |
Number of chassis fan connectors | 2 |
USB 2.0 connectors | 2 |
12V power connector | Yes |
ATX Power connector (24-pin) | Yes |
BIOS Type | UEFI AMI |
PACKAGE WEIGHT | 920 g |
Package depth | 275 mm |
Package width | 275 mm |
Package height | 67.5 mm |
RAID levels | 0 |
Supported storage drive types | HDD & SSD |
Number of HDDs supported | 4 |
Raid Support | Yes |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, SATA III |

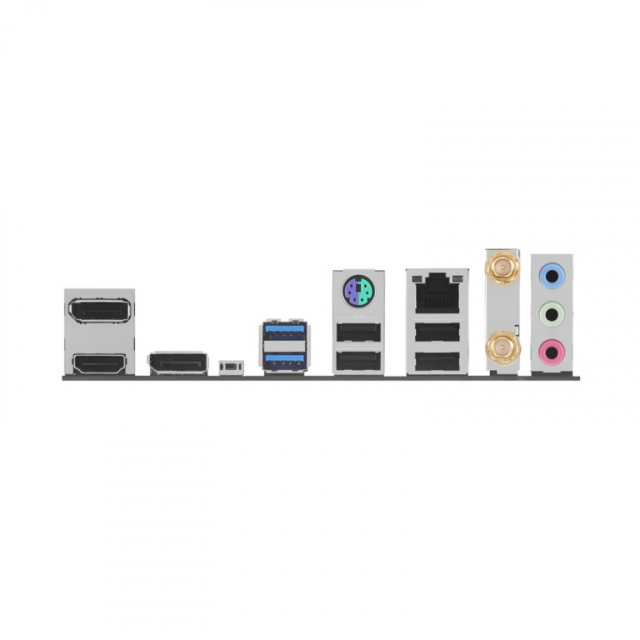

HDMI ports quantity | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
DisplayPorts quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
PS/2 ports quantity | 1 |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
Weight | 800 g |
