Processor manufacturer | AMD |
Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
Processor Socket | Socket AM4 |
Supported processor sockets | Socket AM4 |
Maximum number of SMP processors | 1 |
Parallel processing technology support | 2-Way CrossFireX |
Windows operating systems supported | Windows 10 x64 |
Motherboard form factor | ATX |
audio chip | Realtek ALC S1200A |
Motherboard chipset family | AMD |
MOTHERBOARD CHIPSET | AMD B550 |
Audio output channels | 7.1 channels |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Supported memory clock speeds | 3000 |
Maximum internal memory | 128 GB |
Width | 305 mm |
Depth | 244 mm |
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
LAN controller | Realtek RTL8125B |
EPS power connector (8-pin) | Yes |
TPM connector | Yes |
Number of chassis fan connectors | 3 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 6 |
USB 2.0 connectors | 2 |
Number of SATA connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Front panel audio connector | Yes |
BIOS Type | UEFI AMI |
Clear CMOS jumper | Yes |
CABLES INCLUDED | SATA |
Drivers included | Yes |
Supported storage drive interfaces | M.2, Serial ATA |
RAID levels | 10 |

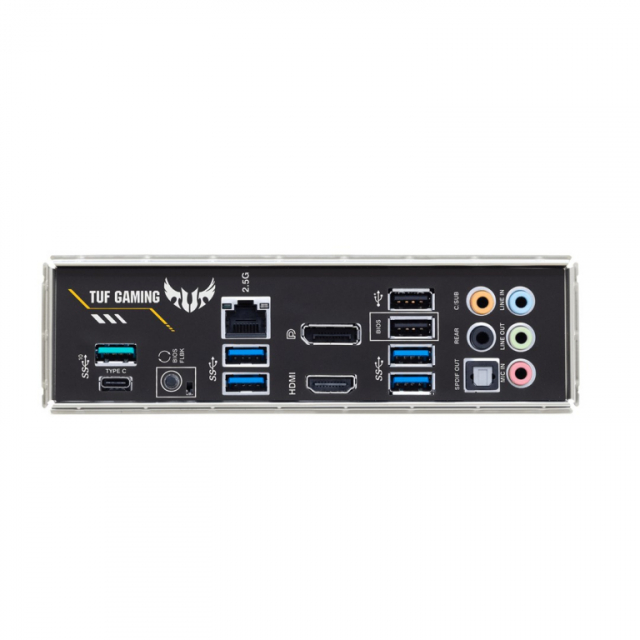

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
PS/2 ports quantity | 1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
S/PDIF out port | Yes |
PCI Express x16 (Gen 4.x) slots | 1 |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 3 |
PCI Express x16 (Gen 3.x) slots | 1 |
