Processor manufacturer | Intel |
Compatible processor series | Intel Core i5 13th Gen |
Processor Socket | LGA 1700 |
Parallel processing technology support | Not supported |
MOTHERBOARD CHIPSET | Intel H610 |
audio chip | Realtek ALC897 |
Windows operating systems supported | Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
ECC сompatibility | Non-ECC |
Supported memory clock speeds | 1866 |
Maximum internal memory | 64 GB |
Memory channels | Dual-channel |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Number of memory slots | 2 |
Depth | 228 mm |
Width | 216 mm |
LAN controller | Realtek RTL8111H |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
ATX Power connector (24-pin) | Yes |
Number of COM connectors | 1 |
Number of SATA III connectors | 4 |
USB 2.0 connectors | 2 |
TPM connector | Yes |
Front panel audio connector | Yes |
CPU fan connector | Yes |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
BIOS Type | UEFI AMI |
Drivers included | Yes |
CABLES INCLUDED | SATA |
Supported storage drive interfaces | M.2, SATA III |

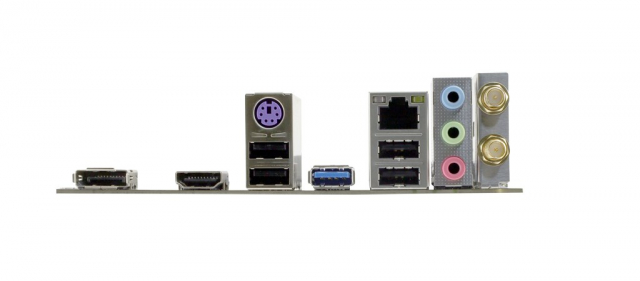

Ethernet LAN (RJ-45) ports | 1 |
PS/2 ports quantity | 1 |
DisplayPorts quantity | 1 |
USB 2.0 ports quantity | 4 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Microphone in | Yes |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
