Compatible processor series | Intel® Pentium® |
Processor Socket | LGA 1200 (Socket H5) |
Processor manufacturer | Intel |
Maximum number of SMP processors | 1 |
HDCP | Yes |
DirectX version | 12.0 |
PC health monitoring | Fan |
Audio output channels | 7.1 channels |
audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
MOTHERBOARD CHIPSET | Intel Z590 |
Motherboard form factor | micro ATX |
Supported memory clock speeds | 2933 |
Maximum internal memory | 64 GB |
Memory channels | Dual-channel |
Memory slots type | DIMM |
ECC сompatibility | Non-ECC |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Depth | 226 mm |
Width | 185 mm |
LAN controller | Intel® I219-V |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Fast Ethernet |
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
CPU fan connector | Yes |
Number of chassis fan connectors | 2 |
Front panel connector | Yes |
Power fan connector | Yes |
Front panel audio connector | Yes |
Number of COM connectors | 1 |
Number of SATA III connectors | 4 |
EPS power connector (8-pin) | Yes |
ATX Power connector (24-pin) | Yes |
Clear CMOS jumper | Yes |
BIOS Type | UEFI |
Bundled software | BullGuard |
CABLES INCLUDED | SATA |
Drivers included | Yes |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0 |
Raid Support | Yes |

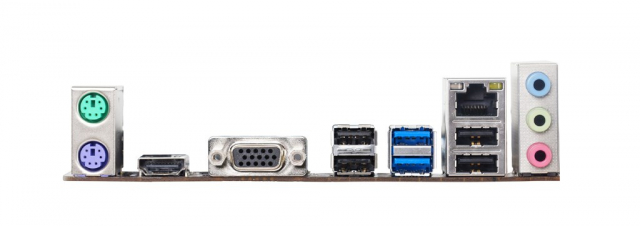

VGA (D-Sub) ports quantity | 1 |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 1.4 |
PS/2 ports quantity | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
