Compatible processor series | Intel Core i5 13th Gen |
Processor manufacturer | Intel |
Processor Socket | LGA 1700 |
MOTHERBOARD CHIPSET | Intel Z690 |
PC health monitoring | CPU |
Windows operating systems supported | Windows 10 x64 |
audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Supported memory clock speeds | 1866 |
Memory channels | Dual-channel |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Maximum internal memory | 64 GB |
Number of memory slots | 2 |
ECC сompatibility | Non-ECC |
Depth | 236 mm |
Width | 208 mm |
LAN controller | Realtek RTL8125B |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Yes |
EPS power connector (8-pin) | Yes |
Front panel connector | Yes |
Number of SATA III connectors | 4 |
TPM connector | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 1 |
BIOS Type | UEFI |
Bundled software | BullGuard |
CABLES INCLUDED | SATA |
Drivers included | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
RAID levels | 0 |
Raid Support | Yes |
Number of HDDs supported | 5 |

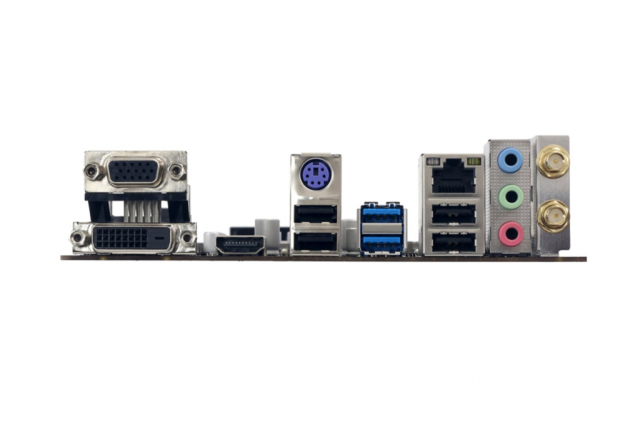

DVI-D ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
PS/2 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
USB 2.0 ports quantity | 4 |
VGA (D-Sub) ports quantity | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 1 |
