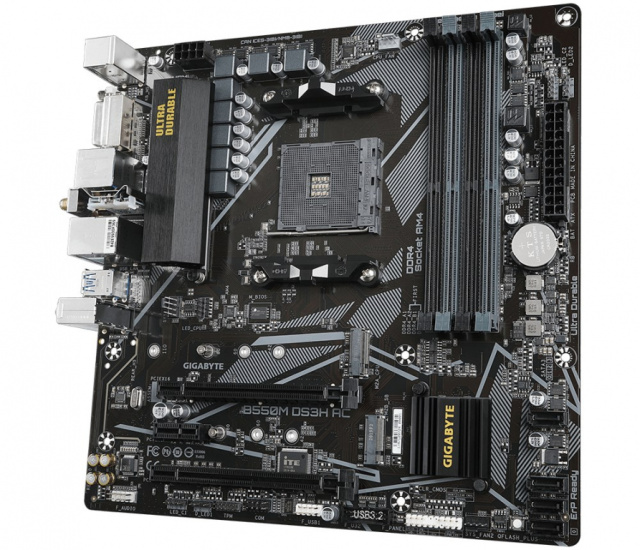

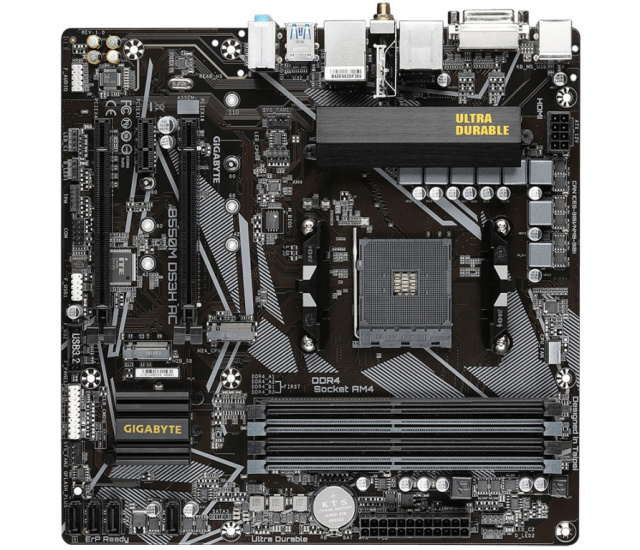

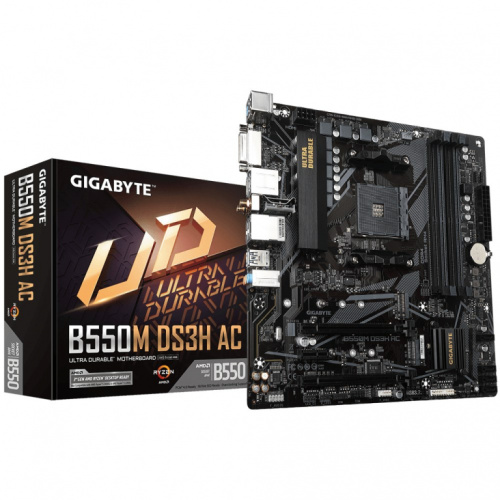

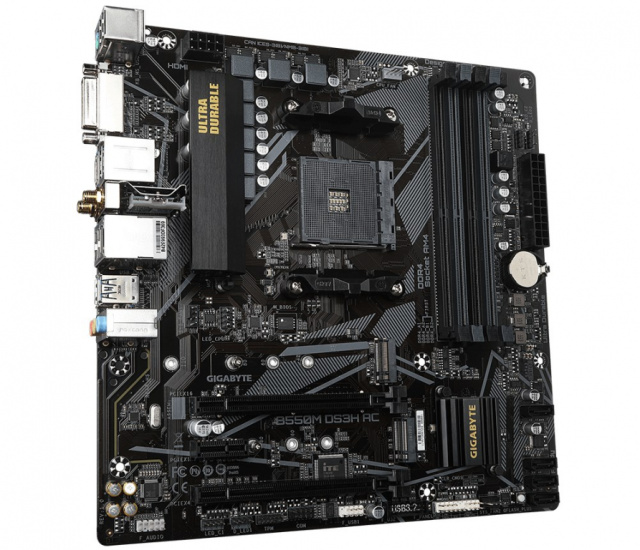

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

€ 105.00
  • Without TAX: € 86.07
  • Brand:Gigabyte Model:B550M DS3H Availability:Pre-order 3-7 W. Days Quantity:27 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series AMD Ryzen 3000 Series
Processor Socket Socket AM4
Supported processor sockets Socket AM4
Processor manufacturer AMD
Parallel processing technology support Not supported
DirectX version 12.0
Maximum Resolution 4096 x 2160 pixels
HDCP Yes
Power source type ATX
PC health monitoring Temperature
audio chip Realtek ALC897
Product colour Bronze
Audio output channels 7.1 channels
Motherboard chipset family AMD
Windows operating systems supported Windows 11 x64
Motherboard form factor micro ATX
MOTHERBOARD CHIPSET AMD B550
Cooling type Passive
Unbuffered memory Yes
Supported memory clock speeds 4133
Memory channels Dual-channel
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Supported memory clock speed (max) 4733 MHz
ECC сompatibility ECC & Non-ECC
Maximum internal memory per slot 32 GB
Width 244 mm
Height 35 mm
Depth 244 mm
Bluetooth Yes
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Ethernet LAN Yes
Wi-Fi standards 802.11b
Bluetooth Version 4.2
LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet
WLAN controller model Realtek RTL8821CE
USB 2.0 connectors 1
Number of SATA III connectors 4
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Serial port headers 1
EPS power connector (8-pin) Yes
Number of chassis fan connectors 2
ATX Power connector (24-pin) Yes
CPU fan connector Yes
RGB LED pin header Yes
Front panel audio connector Yes
Audio connector Yes
12V power connector Yes
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 5
Number of water pump connectors 2
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
Package width 270 mm
Package depth 268 mm
Package height 68 mm
PACKAGE WEIGHT 1.09 kg
Bundled software Norton® Internet Security LAN bandwidth management software
Batteries Included Yes
Screws included Yes
Antenna included Yes
Raid Support Yes
Number of HDDs supported 4
RAID levels 10
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 6
Supported storage drive types HDD & SSD

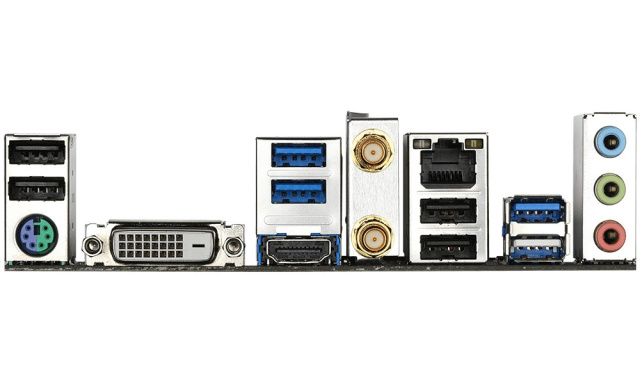

HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Headphone outputs 1
HDMI version 2.1
Line-in Yes
Microphone in Yes
DVI-D ports quantity 1
Ethernet LAN (RJ-45) ports 1
WiFi-AP antenna jack 2
USB 2.0 ports quantity 4
PS/2 ports quantity 1
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 22110
1st M.2 highest PCI Express generation 4.0
2nd M.2 highest PCI Express generation 3.0
2nd M.2 largest key size 2280
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Battery type CR2032
Lithium weight per battery 0.07 g
Country of origin China
