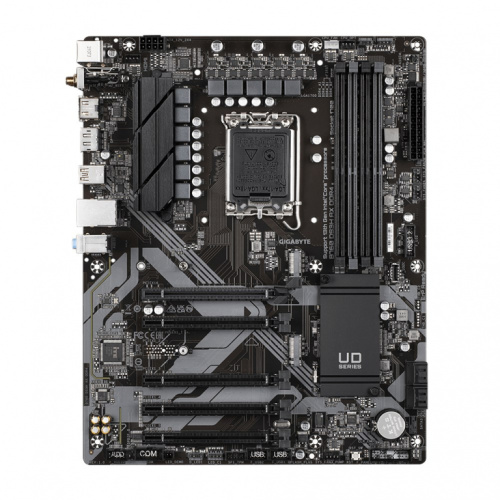

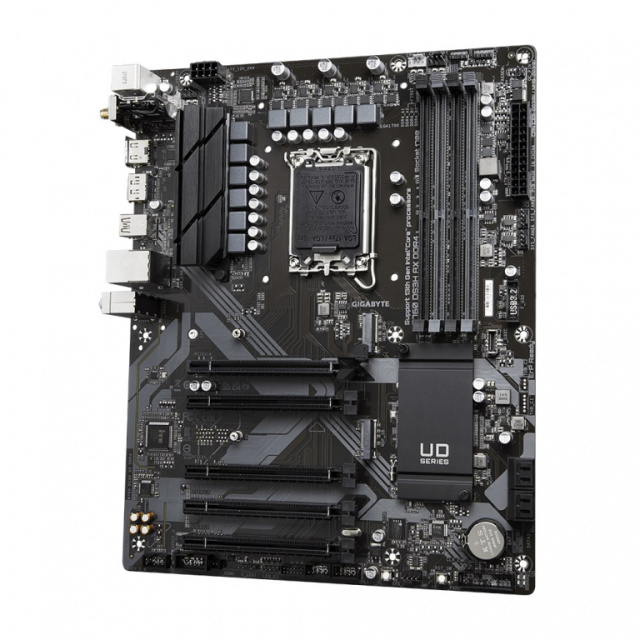

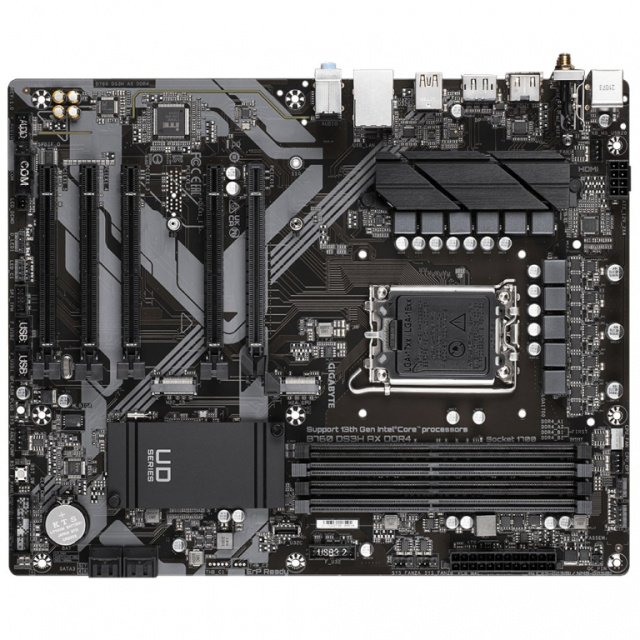

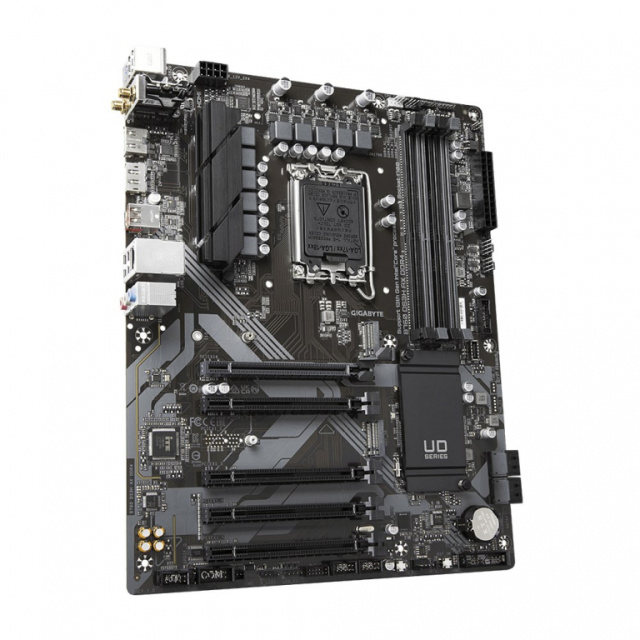

Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

€ 127.00
  • Without TAX: € 102.42
  • Brand:Gigabyte Model:B760 DS3H AX DDR4 Availability:Pre-order 3-7 W. Days Quantity:36 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Processor manufacturer Intel
Compatible processor series Intel® Core™ i7
Processor Socket LGA 1700
Maximum internal memory supported by processor 128 GB
Supported processor sockets LGA 1700
DirectX version 12.0
Maximum Resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
HDCP Yes
PC health monitoring Voltage
MOTHERBOARD CHIPSET Intel B760 Express
Windows operating systems supported Windows 10 x64
Motherboard form factor ATX
Audio output channels 7.1 channels
Motherboard chipset family Intel
Supported memory clock speeds 2933
Supported memory module capacities 16GB
Supported memory clock speed (max) 5333 MHz
Memory channels Dual-channel
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Height 35 mm
Width 305 mm
Depth 244 mm
Bluetooth Yes
WLAN controller model RZ608
Wi-Fi Yes
Bluetooth Version 5.2
Wi-Fi standards 802.11a
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Ethernet interface type Gigabit Ethernet
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Front panel connector Yes
EPS power connector (8-pin) Yes
S/PDIF out connector Yes
USB 2.0 connectors 2
RGB LED pin header Yes
Number of SATA III connectors 4
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Serial port headers 1
CPU fan connector Yes
12V power connector Yes
Desktop Management Interface (DMI) version 2.7
BIOS Type UEFI AMI
Clear CMOS jumper Yes
PACKAGE WEIGHT 1.49 kg
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Bundled software Norton Internet Security
CABLES INCLUDED SATA
Batteries Included Yes
Number of storage drives supported 6
RAID levels 5
Number of HDDs supported 4
Raid Support Yes
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Headphone outputs 3
Microphone in Yes

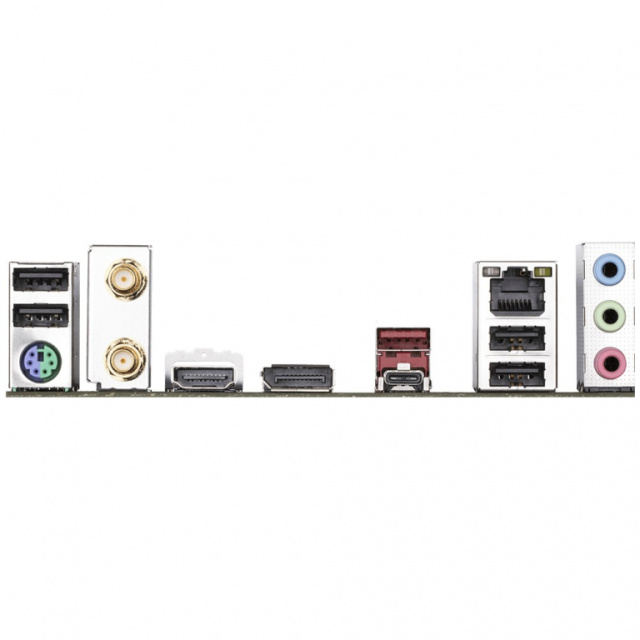

USB connector type USB Type-A
WiFi-AP antenna jack 2
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
DisplayPorts quantity 1
HDMI version 2.0
PS/2 ports quantity 1
DisplayPort version 1.2
HDMI ports quantity 1
PCI Express x16 slots 5
Number of M.2 (M) slots 2
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Battery type CR2032
Lithium weight per battery 0.07 g
Country of origin China
