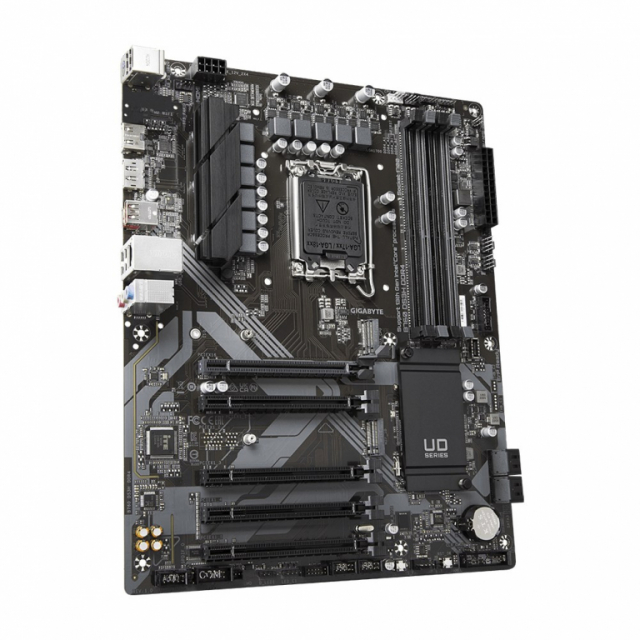

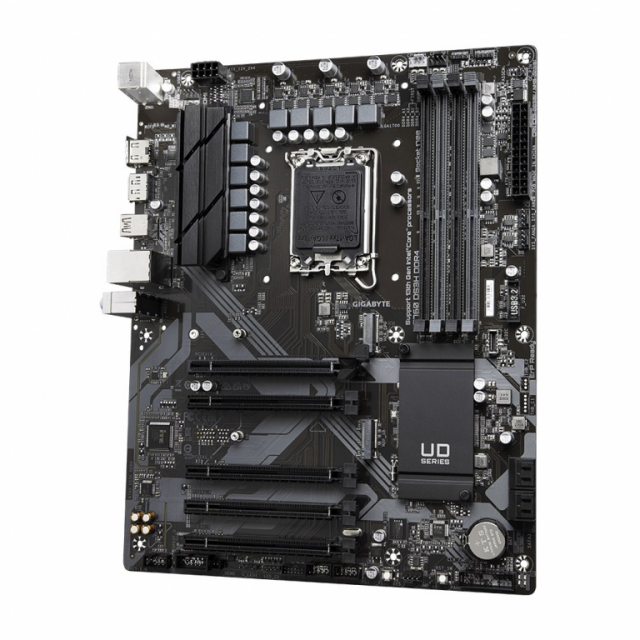

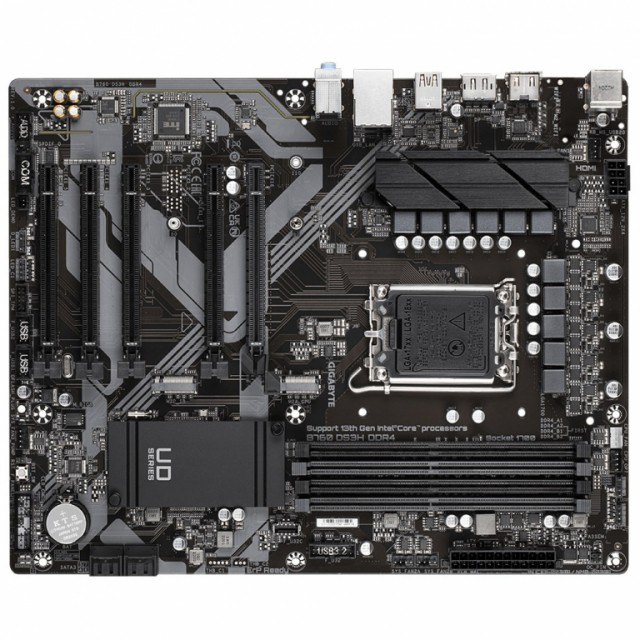

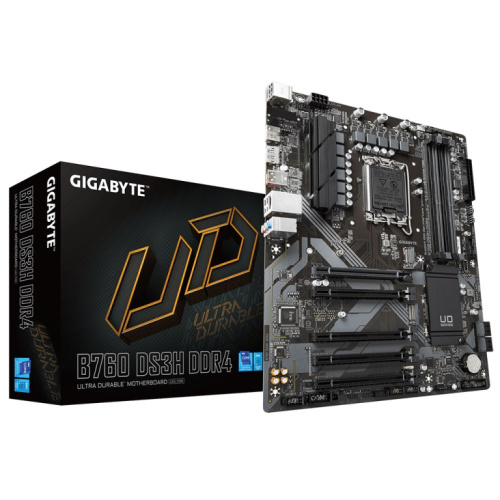

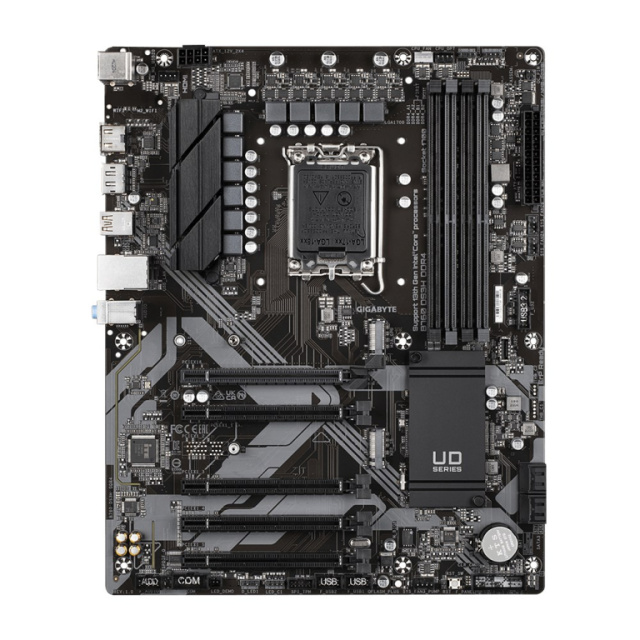

Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

€ 125.50

Add to cart

Without TAX: € 102.87
Brand:Gigabyte Model:B760 DS3H DDR4 Availability:Pre-order 3-7 W. Days Quantity:42 pcs. Warranty:36 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Compatible processor series	Intel® Core™ i7
Maximum internal memory supported by processor	128 GB
Supported processor sockets	LGA 1700
Processor manufacturer	Intel
Processor Socket	LGA 1700
DirectX version	12.0
HDCP	Yes
Maximum Resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
MOTHERBOARD CHIPSET	Intel B760 Express
Audio output channels	7.1 channels
PC health monitoring	Temperature
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
Supported memory clock speeds	4500 MHz
Supported memory module capacities	1GB
Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory clock speed (max)	5333 MHz
Depth	244 mm
Height	35 mm
Width	305 mm
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	4
EPS power connector (8-pin)	Yes
Total number of SATA connectors	4
RGB LED pin header	Yes
Front panel audio connector	Yes
S/PDIF out connector	Yes
Serial port headers	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
CPU fan connector	Yes
TPM connector	Yes
12V power connector	Yes
USB 2.0 connectors	2
BIOS Type	UEFI AMI
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
PACKAGE WEIGHT	1.31 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Bundled software	Norton Internet Security
Batteries Included	Yes
CABLES INCLUDED	SATA
Raid Support	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
RAID levels	10
Number of storage drives supported	6
Number of HDDs supported	4
USB connector type	USB Type-C
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
PS/2 ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI version	2.0
DisplayPort version	1.2
Headphone outputs	3
USB 2.0 ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	1
PCI Express x16 slots	5
Number of M.2 (M) slots	2
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Number of battery cells	1
Battery weight	3 g
Lithium weight per battery	0.07 g
Country of origin	China
