Warranty period | 3 year(s) |
Supported processor sockets | LGA 1700 |
Processor Socket | LGA 1700 |
Maximum internal memory supported by processor | 192 GB |
Processor manufacturer | Intel |
Compatible processor series | Intel® Core™ i5 |
HDCP | Yes |
Maximum Resolution | 4096 x 2304 pixels |
Parallel processing technology support | Not supported |
DirectX version | 12.0 |
PC health monitoring | Fan |
MOTHERBOARD CHIPSET | Intel B760 Express |
Windows operating systems supported | Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Product colour | Bronze |
Supported memory clock speeds | 5800 |
Maximum internal memory | 192 GB |
Supported memory module capacities | 8GB |
Unbuffered memory | Yes |
Supported memory clock speed (max) | 7600 MHz |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Width | 305 mm |
Depth | 244 mm |
Height | 35 mm |
Bluetooth | Yes |
Wi-Fi standards | 802.11b |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth Version | 5.2 |
Ethernet LAN | Yes |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
S/PDIF out connector | Yes |
Serial port headers | 1 |
ATX Power connector (24-pin) | Yes |
EPS power connector (8-pin) | Yes |
Front panel audio connector | Yes |
CPU fan connector | Yes |
USB 2.0 connectors | 2 |
Number of SATA III connectors | 4 |
Front panel connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Total number of SATA connectors | 4 |
12V power connector | Yes |
RGB LED pin header | Yes |
TPM connector | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
BIOS Type | UEFI AMI |
Clear CMOS jumper | Yes |
Desktop Management Interface (DMI) version | 2.7 |
Package width | 335 mm |
Package depth | 270 mm |
PACKAGE WEIGHT | 1.66 kg |
Package height | 80 mm |
Bundled software | Norton Internet Security |
Batteries Included | Yes |
CABLES INCLUDED | SATA |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 5 |
Supported storage drive types | HDD & SSD |
Raid Support | Yes |
Number of storage drives supported | 7 |
Number of HDDs supported | 4 |

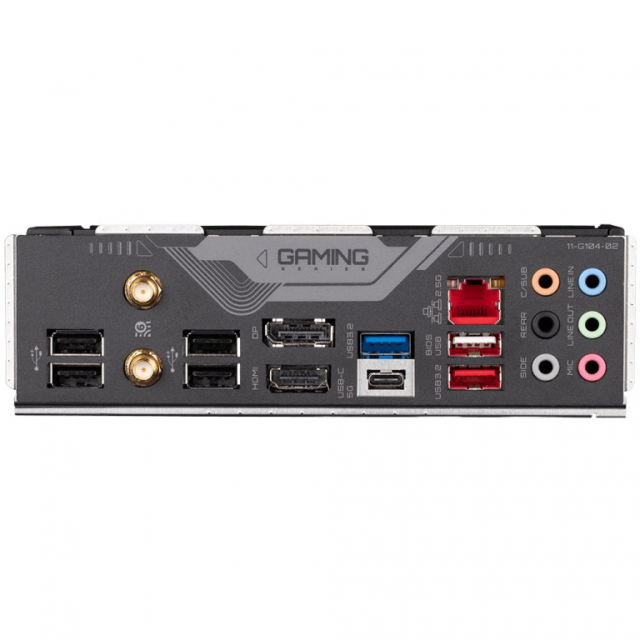

USB connector type | USB Type-C |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 5 |
HDMI version | 2.0 |
Microphone in | Yes |
Headphone outputs | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
WiFi-AP antenna jack | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
HDMI ports quantity | 1 |
Number of M.2 (M) slots | 3 |
PCI Express x16 slots | 3 |
Lithium weight per battery | 0.07 g |
Battery weight | 3 g |
Number of battery cells | 1 |
Battery type | CR2032 |
Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
Country of origin | China |
