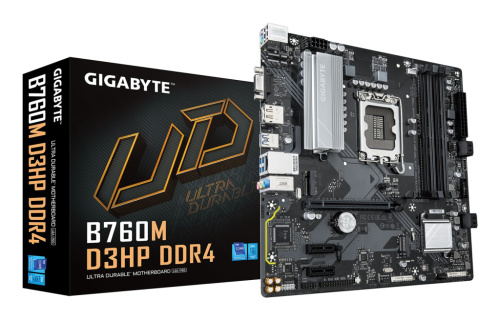

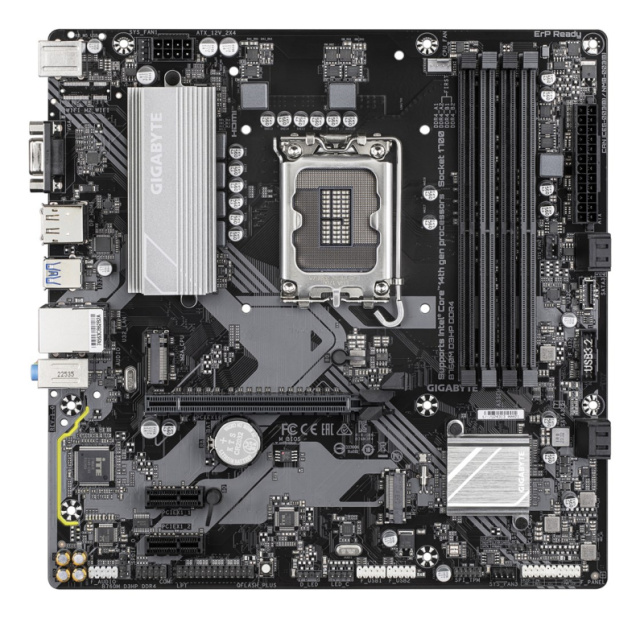

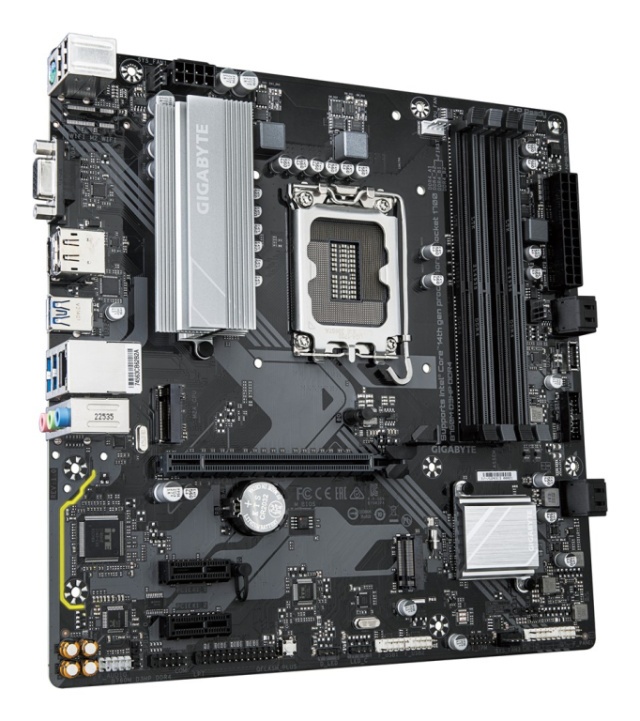

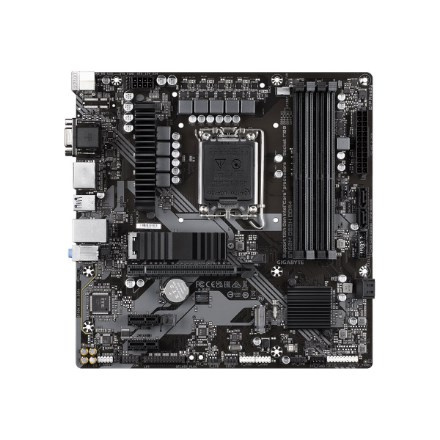

GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1

GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
  • GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
  • GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
  • GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
  • GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
€ 105.00
-+
Add to cart
  • Without TAX: € 86.07
  • Brand:Gigabyte Model:20 Availability:Pre-order 3-7 W. Days Quantity:17 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel® Core™ i7
Processor Socket LGA 1700
Maximum internal memory supported by processor 128 GB
Processor manufacturer Intel
Supported processor sockets LGA 1700
Maximum Resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
HDCP Yes
DirectX version 12.0
Windows operating systems supported Windows 10
Motherboard form factor micro ATX
PC health monitoring Voltage
MOTHERBOARD CHIPSET Intel B760 Express
Motherboard chipset family Intel
Audio output channels 7.1 channels
Power source type ATX
Product colour Bronze
Supported memory clock speeds 2933
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Supported memory module capacities 16GB
Supported memory clock speed (max) 5333 MHz
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Depth 244 mm
Width 244 mm
Height 35 mm
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
RGB LED pin header Yes
12V power connector Yes
Front panel connector Yes
Total number of SATA connectors 4
TPM connector Yes
Audio connector Yes
Front panel audio connector Yes
Power fan connector Yes
ATX Power connector (24-pin) Yes
USB 2.0 connectors 2
S/PDIF out connector Yes
Number of chassis fan connectors 3
Number of Parallel ATA connectors 1
Parallel connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
EPS power connector (8-pin) Yes
Serial port headers 1
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
BIOS Type UEFI AMI
Package height 54 mm
Package depth 265 mm
Package width 265 mm
PACKAGE WEIGHT 990 g
Bundled software Norton Internet Security
Batteries Included Yes
Number of HDDs supported 4
Number of storage drives supported 6
Raid Support Yes
RAID levels 10
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD

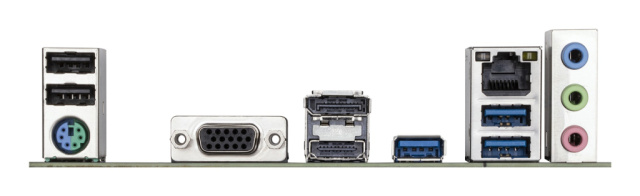

VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Headphone outputs 1
Line-in Yes
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Digital audio optical out 3
DisplayPort version 1.4
DisplayPorts quantity 2
USB connector type USB Type-A
USB 2.0 ports quantity 2
PCI Express x16 slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 slots 1
PCI Express x4 slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x1 (Gen 3.x) slots 1
Number of M.2 (M) slots 2
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Country of origin China
Warnings Do not open the memory module housing.
