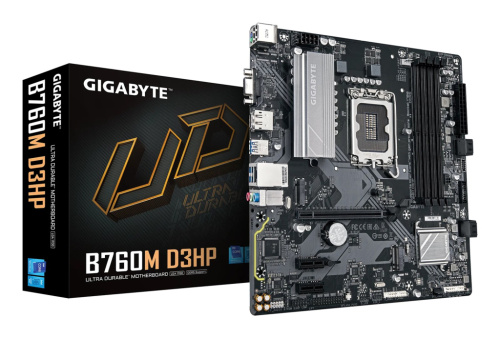

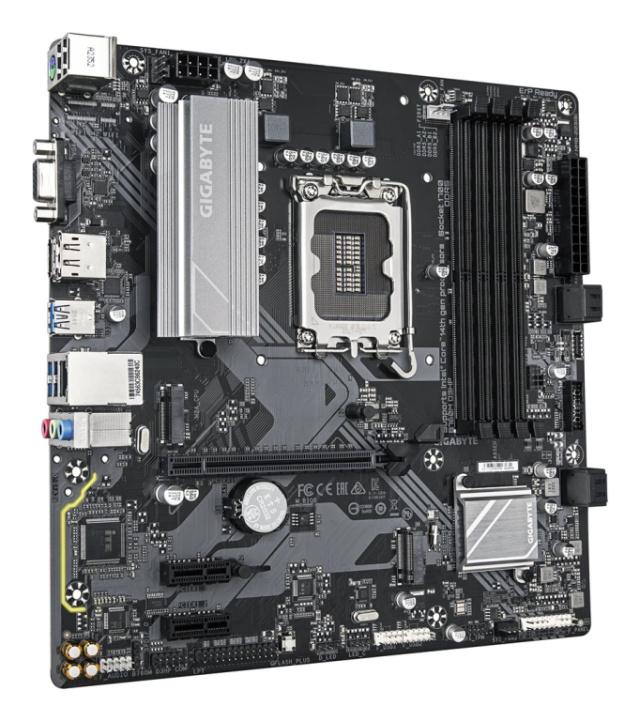

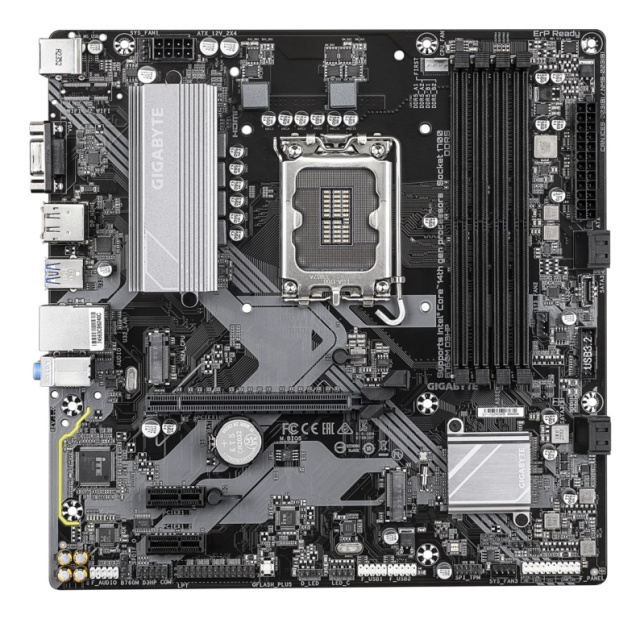

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

€ 105.00
  • Without TAX: € 86.07
  • Brand:Gigabyte Model:B760M D3HP Availability:Pre-order 3-7 W. Days Quantity:7 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel Core i5 13th Gen
Supported processor sockets LGA 1700
Processor manufacturer Intel
Processor Socket LGA 1700
HDCP Yes
Maximum Resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
DirectX version 12.0
PC health monitoring Voltage
Power source type ATX
Audio output channels 7.1 channels
MOTHERBOARD CHIPSET Intel B760 Express
Motherboard form factor micro ATX
Motherboard chipset family Intel
Windows operating systems supported Windows 11
Product colour Bronze
Supported memory clock speeds 4800
Supported memory types DDR5-SDRAM
ECC сompatibility ECC & Non-ECC
Maximum internal memory 256 GB
Unbuffered memory Yes
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 5600 MHz
Memory channels Dual-channel
Maximum internal memory per slot 64 GB
Width 244 mm
Height 35 mm
Depth 244 mm
Wi-Fi No
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Parallel connector Yes
Serial port headers 1
12V power connector Yes
Number of RGB LED pin headers 2
Front panel audio connector Yes
CPU fan connector Yes
S/PDIF out connector Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 3
USB 2.0 connectors 2
Number of SATA III connectors 4
RGB LED pin header Yes
Front panel connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
BIOS Type UEFI AMI
Package depth 268 mm
PACKAGE WEIGHT 1.21 kg
Package height 68 mm
Package width 270 mm
Bundled software Norton Internet Security
Screws included Yes
Batteries Included Yes
RAID levels 5
Supported storage drive interfaces M.2, SATA III
Raid Support Yes
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Number of storage drives supported 6
USB 2.0 ports quantity 2
Line-in Yes

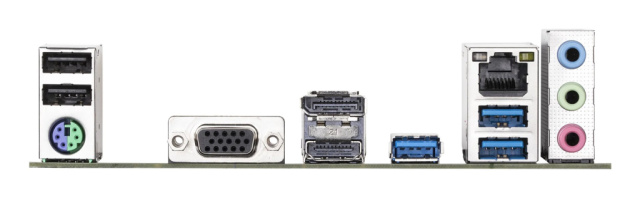

DisplayPort version 1.2
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Microphone in Yes
HDMI ports quantity 1
Headphone outputs 1
DisplayPorts quantity 1
HDMI version 2.1
VGA (D-Sub) ports quantity 1
Number of M.2 (M) slots 2
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 4.0
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
2nd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
Battery type CR2032
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery weight 3 g
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Weight 720 g
