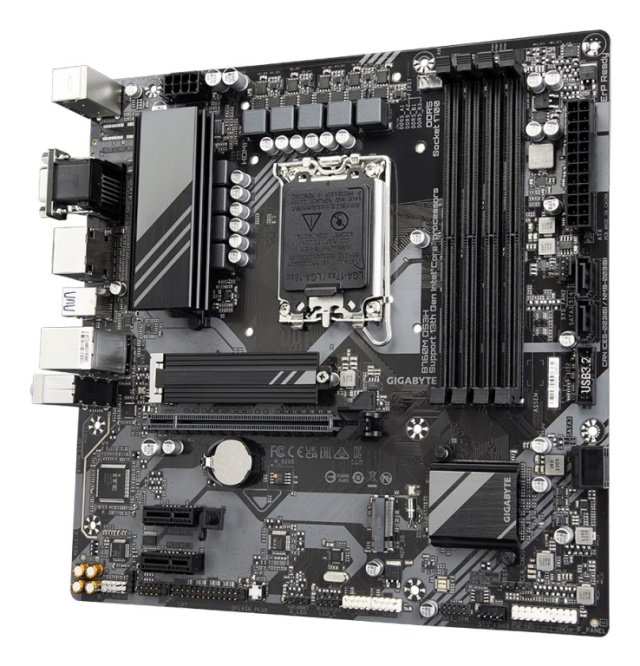

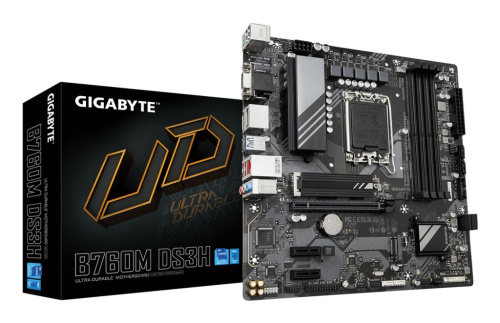

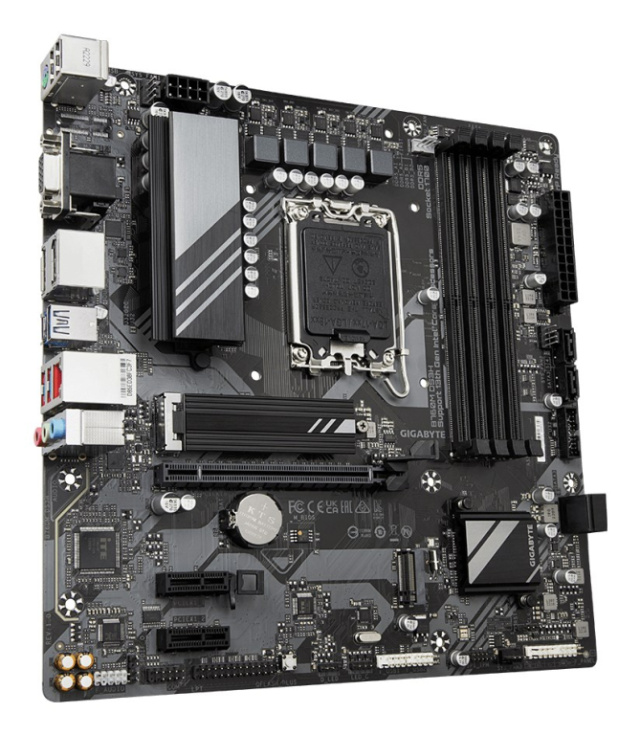

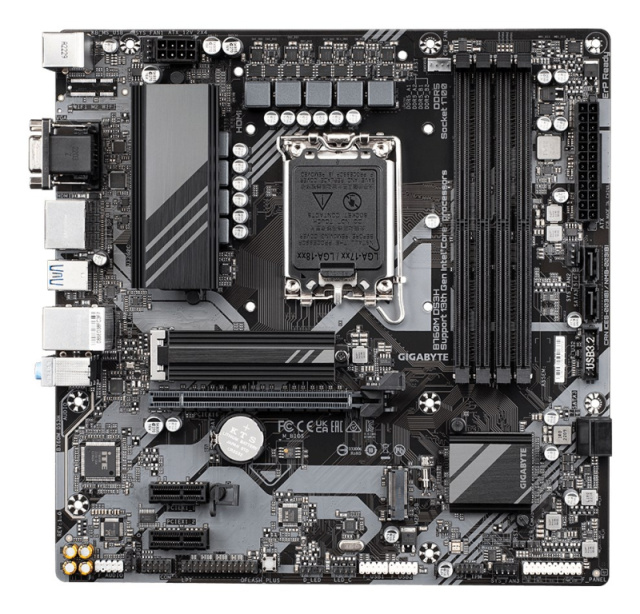

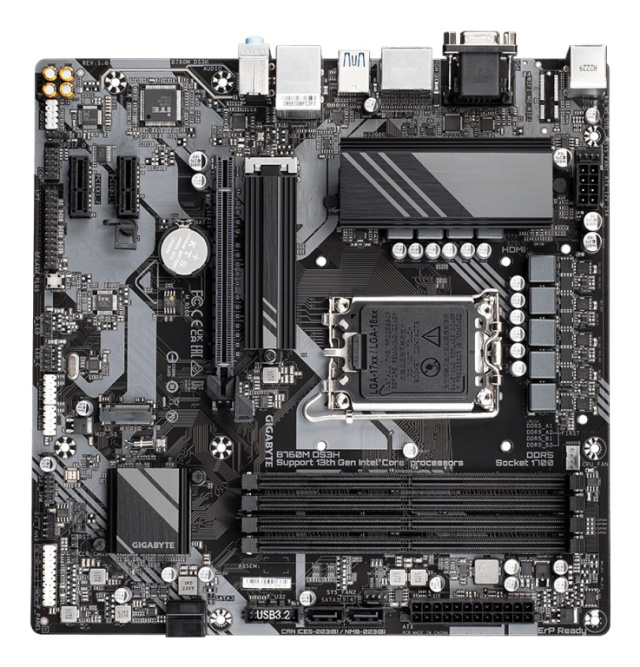

Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX

Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
  • Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
  • Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
  • Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
  • Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
€ 121.00
-+
Add to cart
  • Without TAX: € 99.18
  • Brand:Gigabyte Model:B760M DS3H Availability:Pre-order 3-7 W. Days Quantity:8 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Supported processor sockets LGA 1700
Processor Socket LGA 1700
Compatible processor series Intel® Core™ i7
Processor manufacturer Intel
Parallel processing technology support Not supported
Maximum Resolution 4096 x 2304 pixels
HDCP Yes
DirectX version 12.0
Motherboard form factor micro ATX
PC health monitoring Voltage
Motherboard chipset family Intel
Windows operating systems supported Windows 10 x64
Audio output channels 7.1 channels
MOTHERBOARD CHIPSET Intel B760 Express
Product colour Bronze
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Memory channels Dual-channel
Number of memory slots 4
Supported memory clock speed (max) 7600 MHz
Supported memory clock speeds 6400
Maximum internal memory 256 GB
Unbuffered memory Yes
ECC сompatibility ECC & Non-ECC
Depth 244 mm
Width 244 mm
Height 35 mm
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
Ethernet LAN Yes
Front panel connector Yes
EPS power connector (8-pin) Yes
USB 2.0 connectors 2
Number of SATA III connectors 4
TPM connector Yes
CPU fan connector Yes
S/PDIF out connector Yes
RGB LED pin header Yes
Parallel connector Yes
Total number of SATA connectors 4
12V power connector Yes
Serial port headers 1
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
Package height 54 mm
Package width 265 mm
Package depth 265 mm
PACKAGE WEIGHT 1.03 kg
Bundled software Norton Internet Security
CABLES INCLUDED SATA
Number of storage drives supported 6
RAID levels 0
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 4
Raid Support Yes
Supported storage drive types HDD & SSD
DisplayPorts quantity 2
HDMI version 2.0
PS/2 ports quantity 1
HDMI ports quantity 1
DisplayPort version 1.2
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
USB connector type USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
VGA (D-Sub) ports quantity 1
Microphone in Yes
USB 2.0 ports quantity 2
Number of M.2 (M) slots 2
PCI Express x1 slots 2
PCI Express x16 slots 1
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
Number of battery cells 1
Battery type CR2032
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Lithium weight per battery 0.07 g
Country of origin China
Warnings Do not dispose of the Motherboard in the ordinary rubbish bin; the product requires special disposal.
