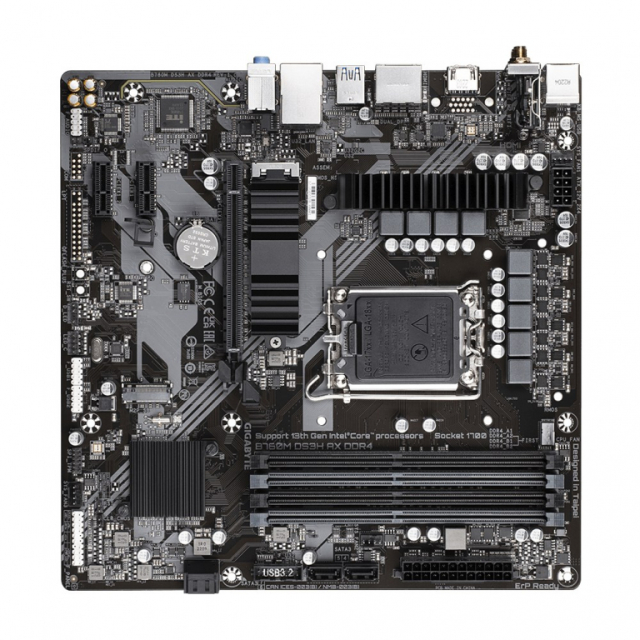

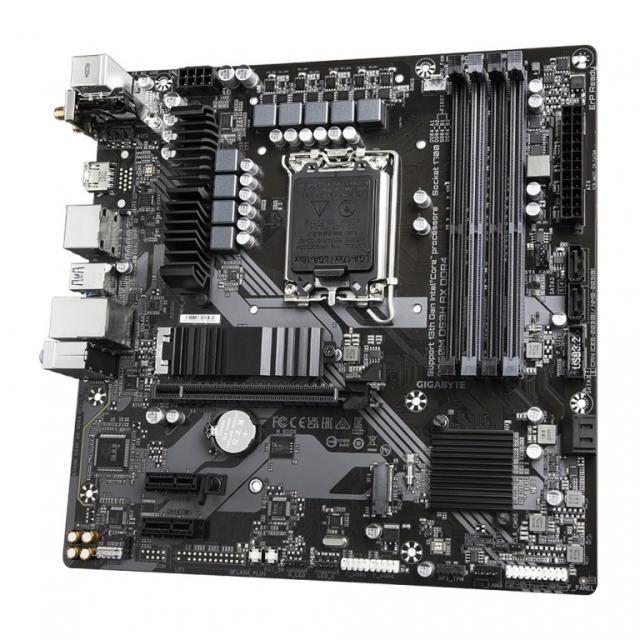

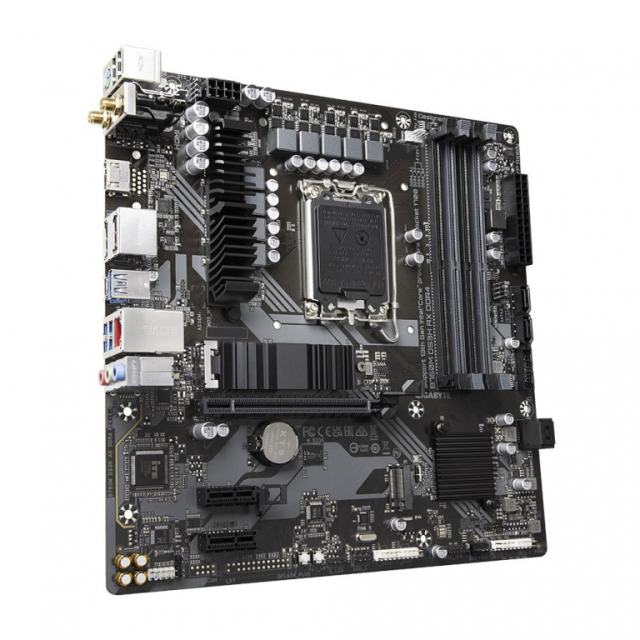

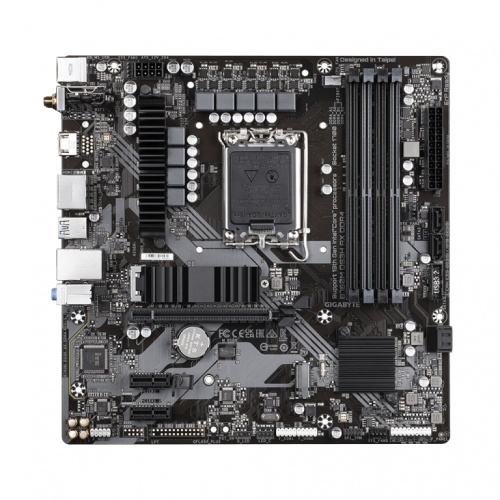

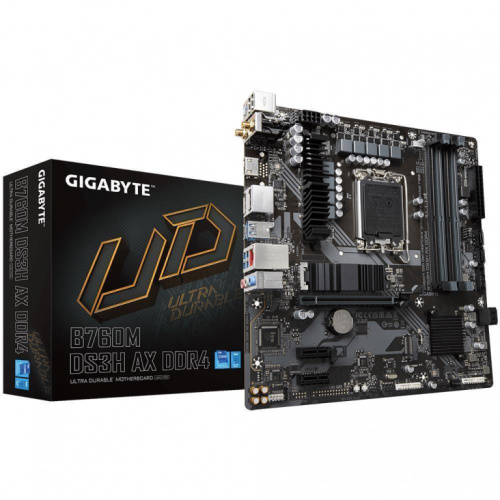

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2

€ 122.50
  • Without TAX: € 100.41
  • Brand:Gigabyte Model:B760M DS3H AX DDR4 Availability:Pre-order 3-7 W. Days Quantity:11 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel® Core™ i5
Processor Socket LGA 1700
Processor manufacturer Intel
Supported processor sockets LGA 1700
HDCP Yes
DirectX version 12.0
Maximum Resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
Product colour Bronze
MOTHERBOARD CHIPSET Intel B760 Express
Audio output channels 7.1 channels
Motherboard chipset family Intel
Motherboard form factor micro ATX
PC health monitoring Water cooling
Windows operating systems supported Windows 10 x64
Supported memory clock speeds 3733
Unbuffered memory Yes
Maximum internal memory 128 GB
ECC сompatibility ECC & Non-ECC
Number of memory slots 4
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Supported memory clock speed (max) 5333 MHz
Width 244 mm
Depth 244 mm
Height 35 mm
Bluetooth Yes
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards Wi-Fi 6E (802.11ax)
Bluetooth Version 5.2
Ethernet interface type 2.5 Gigabit Ethernet
WLAN controller model RZ608
Wi-Fi Yes
S/PDIF out connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
CPU fan connector Yes
USB 2.0 connectors 2
RGB LED pin header Yes
Front panel connector Yes
TPM connector Yes
12V power connector Yes
EPS power connector (8-pin) Yes
Total number of SATA connectors 4
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
PACKAGE WEIGHT 1.1 kg
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Bundled software Norton Internet Security
CABLES INCLUDED SATA
Batteries Included Yes
Raid Support Yes
RAID levels 10
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6

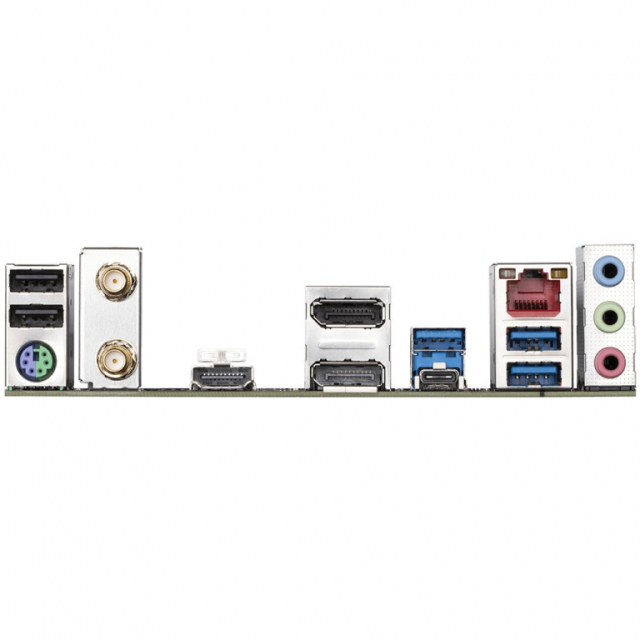

Ethernet LAN (RJ-45) ports 1
USB connector type USB Type-A
DisplayPort version 1.2
USB 2.0 ports quantity 2
DisplayPorts quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI version 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Microphone in Yes
HDMI ports quantity 1
PS/2 ports quantity 1
Headphone outputs 3
WiFi-AP antenna jack 2
PCI Express x16 slots 1
Number of M.2 (M) slots 2
PCI Express x1 slots 2
Lithium weight per battery 0.07 g
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Number of battery cells 1
Country of origin China
Warnings Do not dispose of the Motherboard in the ordinary rubbish bin; the product requires special disposal.
