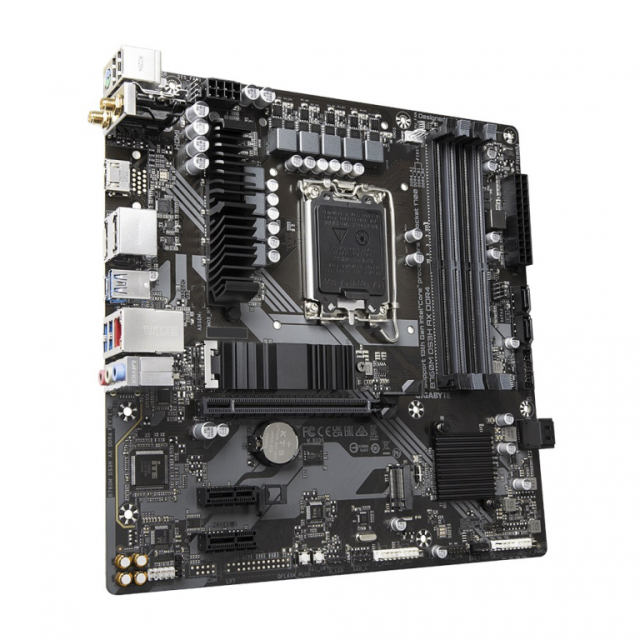

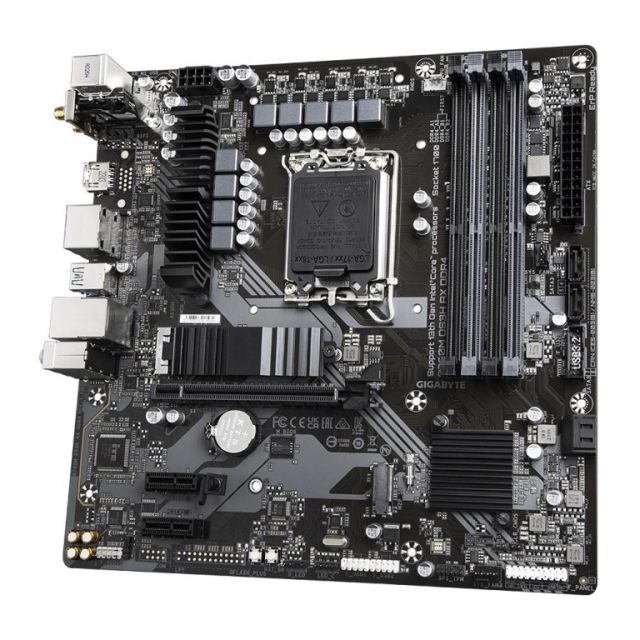

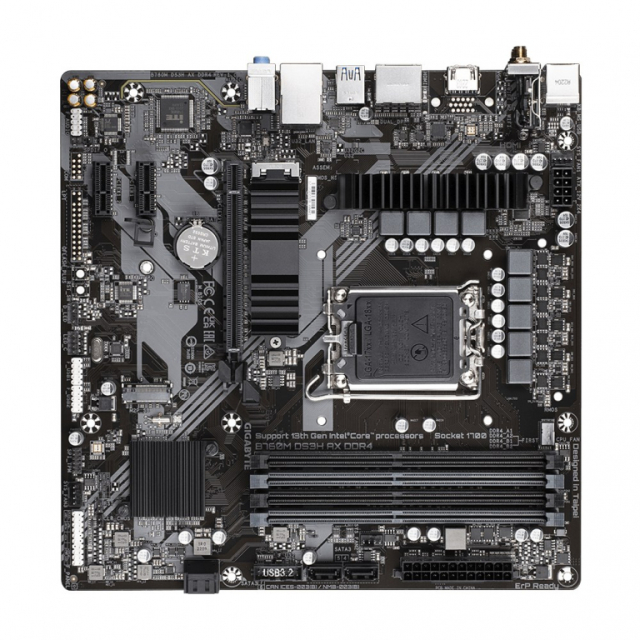

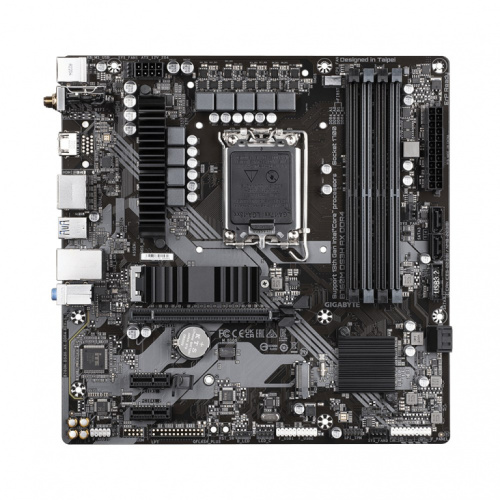

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046
  • GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046
  • GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046
  • GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046
  • GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 PLYGIG1700046
€ 133.00
-+
Add to cart
  • Without TAX: € 109.02
  • Brand:Gigabyte Model:B760M DS3H AX DDR4 Availability:Pre-order 3-7 W. Days Quantity:10 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Processor Socket LGA 1700
Compatible processor series Intel® Core™ i5
Processor manufacturer Intel
Supported processor sockets LGA 1700
Maximum internal memory supported by processor 128 GB
DirectX version 12.0
Parallel processing technology support Not supported
Maximum Resolution 4096 x 2304 pixels
HDCP Yes
Motherboard form factor micro ATX
Audio output channels 7.1 channels
MOTHERBOARD CHIPSET Intel B760 Express
Motherboard chipset family Intel
Product colour Bronze
PC health monitoring Water cooling
Windows operating systems supported Windows 10 x64
Supported memory clock speeds 2133
Maximum internal memory 128 GB
Unbuffered memory Yes
Supported memory clock speed (max) 5333 MHz
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Number of memory slots 4
ECC сompatibility ECC & Non-ECC
Height 35 mm
Depth 244 mm
Width 244 mm
Bluetooth Yes
Wi-Fi standards Wi-Fi 4 (802.11n)
WLAN controller model RZ608
Ethernet LAN Yes
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Bluetooth Version 5.2
Ethernet interface type 2.5 Gigabit Ethernet
Front panel audio connector Yes
S/PDIF out connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of SATA III connectors 4
USB 2.0 connectors 2
Front panel connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
12V power connector Yes
RGB LED pin header Yes
Total number of SATA connectors 4
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
PACKAGE WEIGHT 1.1 kg
Package width 265 mm
Package height 54 mm
Package depth 265 mm
Bundled software Norton Internet Security
Batteries Included Yes
CABLES INCLUDED SATA
Supported storage drive interfaces M.2, SATA III
RAID levels 1
Supported storage drive types HDD & SSD
Raid Support Yes
Number of HDDs supported 4
Number of storage drives supported 6

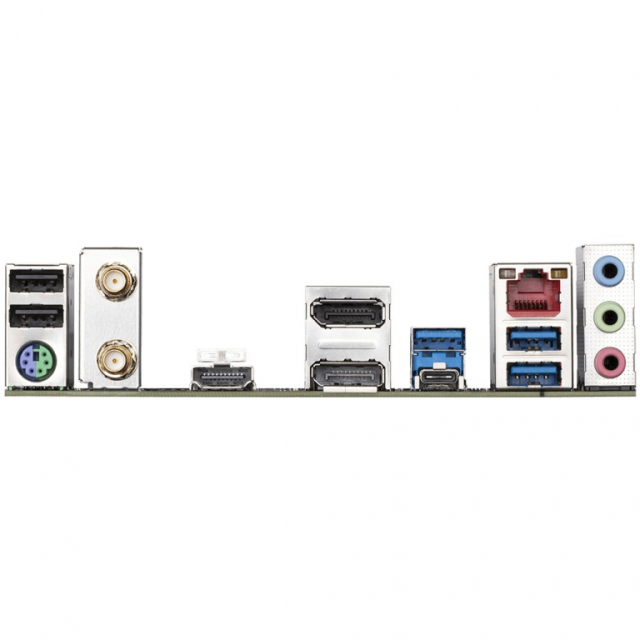

DisplayPorts quantity 2
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
DisplayPort version 1.2
USB connector type USB Type-C
WiFi-AP antenna jack 2
HDMI version 2.0
PS/2 ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Headphone outputs 3
Microphone in Yes
PCI Express x16 slots 1
Number of M.2 (M) slots 2
PCI Express x1 slots 2
Battery weight 3 g
Number of battery cells 1
Battery type CR2032
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.07 g
Country of origin China
