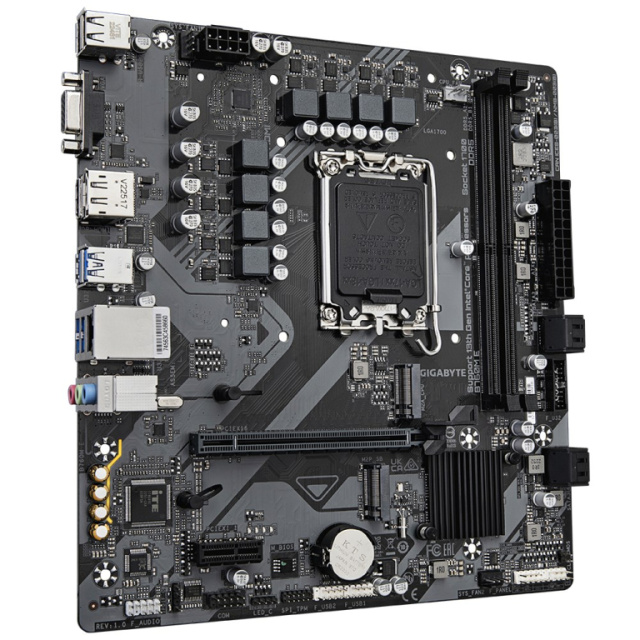

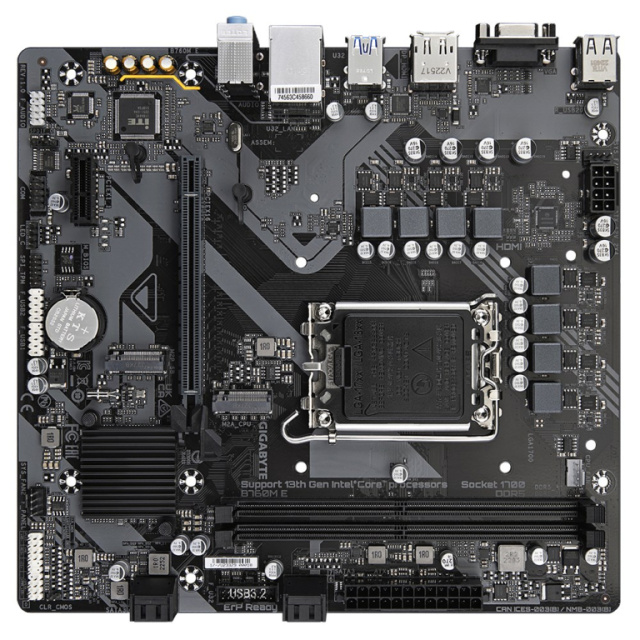

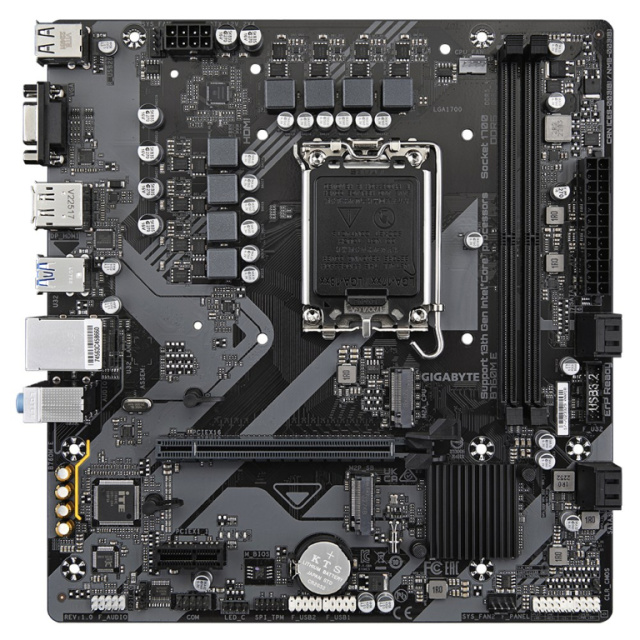

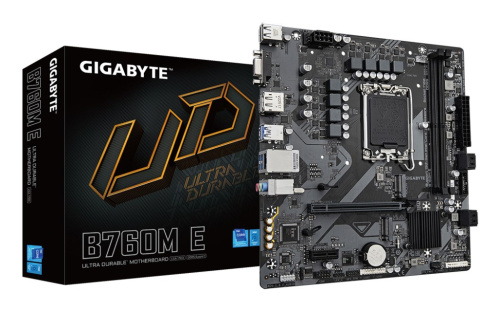

GIGABYTE B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1

GIGABYTE B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1
€ 95.00
-+
Add to cart
  • Without TAX: € 76.61
  • Brand:Gigabyte Model:B760M E Availability:Pre-order 3-7 W. Days Quantity:4 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel® Celeron®
Processor Socket LGA 1700
Processor manufacturer Intel
Supported processor sockets LGA 1700
HDCP Yes
Maximum Resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
MOTHERBOARD CHIPSET Intel B760
audio chip Realtek ALC897
PC health monitoring Fan
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64
Motherboard chipset family Intel
Cooling type Passive
Power source type ATX
Motherboard form factor micro ATX
Supported memory clock speeds 6400
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speed (max) 7200 MHz
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Memory channels Dual-channel
Number of memory slots 2
Maximum internal memory per slot 64 GB
ECC сompatibility ECC & Non-ECC
Depth 215 mm
Width 230 mm
Height 35 mm
LAN controller Realtek RTL8111H
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Number of EPS power connectors (8-pin) 1
Number of CPU fan connectors 1
Number of RGB LED pin headers 1
S/PDIF out connector Yes
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Front panel connector Yes
Number of chassis fan connectors 2
12V power connector Yes
ATX Power connector (24-pin) Yes
TPM connector Yes
USB 2.0 connectors 2
EPS power connector (8-pin) Yes
CPU fan connector Yes
Serial port headers 1
RGB LED pin header Yes
Number of SATA III connectors 4
BIOS Type UEFI AMI
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
PACKAGE WEIGHT 900 g
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Screws included Yes
Supported storage drive types HDD & SSD
RAID levels 5
Number of storage drives supported 6
Raid Support Yes
Number of HDDs supported 4
Supported storage drive interfaces M.2, SATA III
USB 2.0 ports quantity 2
DisplayPort version 1.2
Microphone in Yes
HDMI version 2.1
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Headphone outputs 1
Line-in Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
DisplayPorts quantity 1
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Battery weight 3 g
Battery type CR2032
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.07 g
