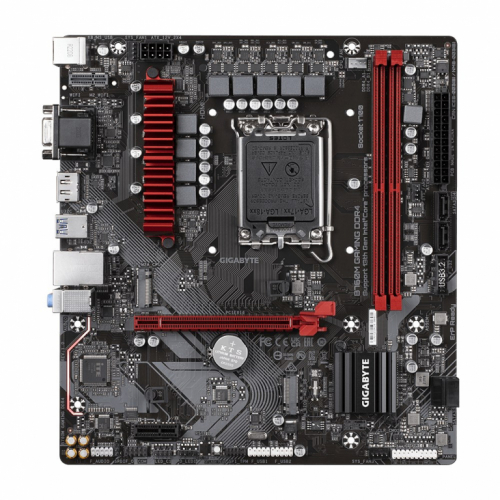

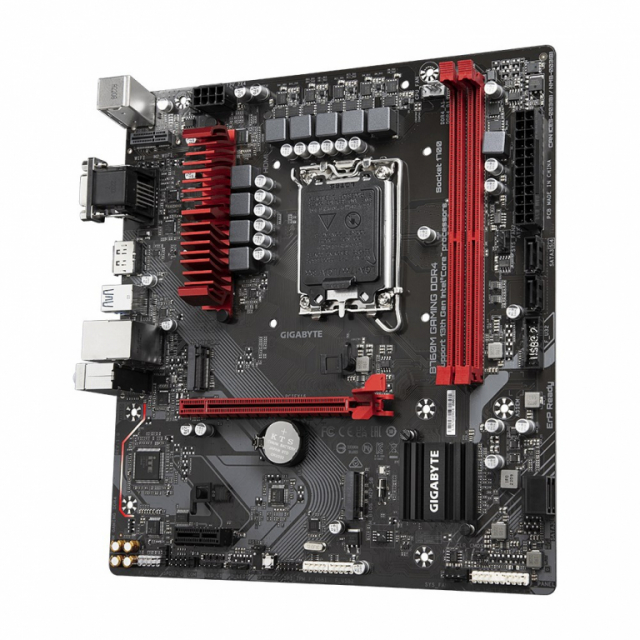

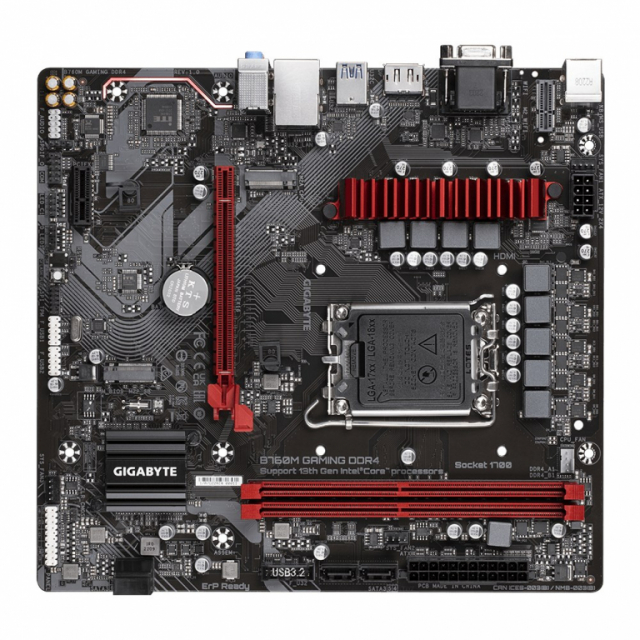

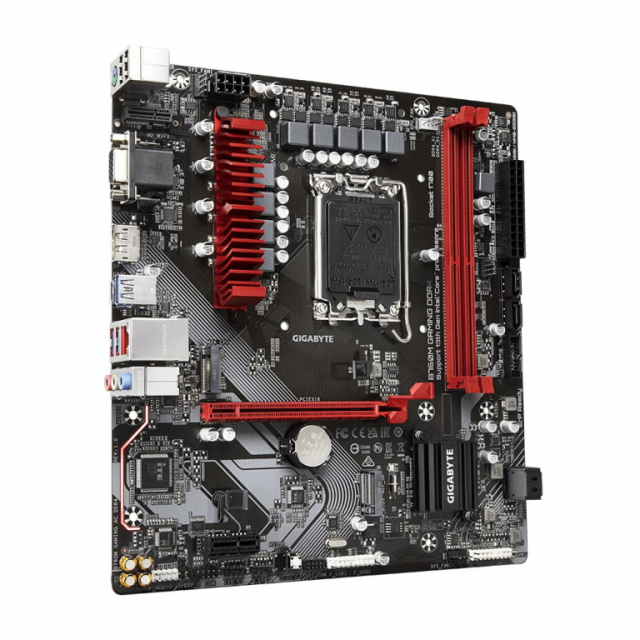

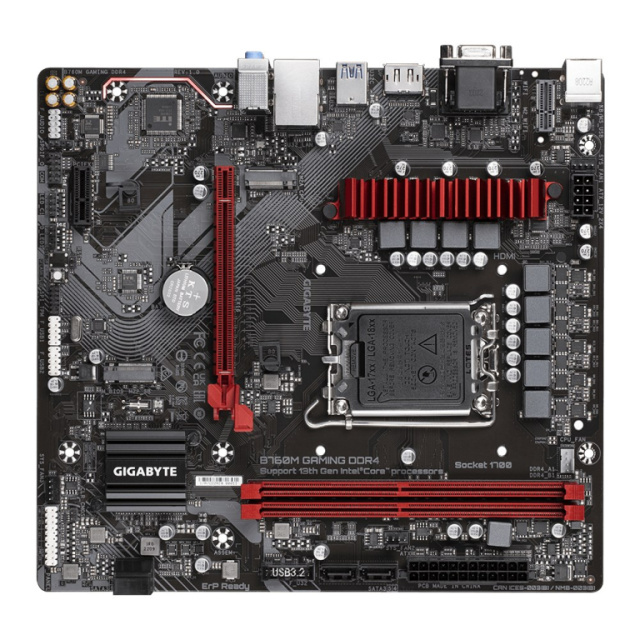

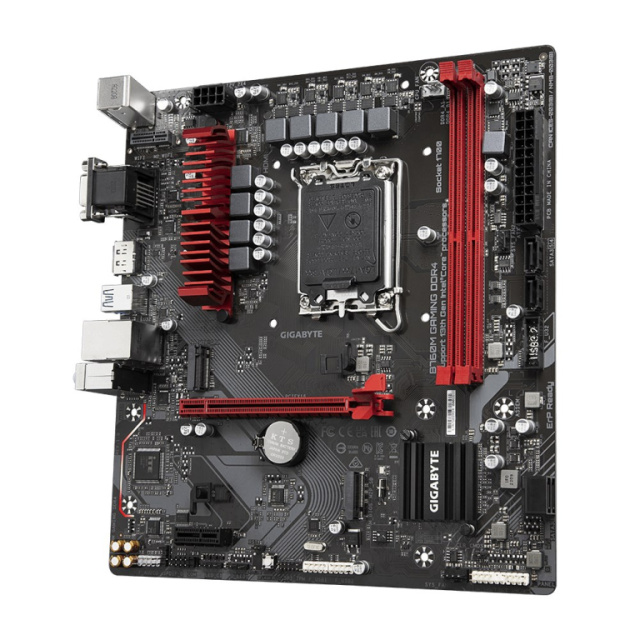

Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Core™ i7 |
Processor manufacturer | Intel |
Processor Socket | LGA 1700 |
Maximum Resolution | 4096 x 2304 pixels |
HDCP | Yes |
Parallel processing technology support | Not supported |
Number of displays supported | 3 |
MOTHERBOARD CHIPSET | Intel B760 Express |
Motherboard chipset family | Intel |
PC health monitoring | Fan |
Windows operating systems supported | Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Supported memory clock speeds | 4600 MHz |
Maximum internal memory | 64 GB |
Unbuffered memory | Yes |
Memory channels | Dual-channel |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Number of memory slots | 2 |
Width | 244 mm |
Depth | 225 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | No |
Ethernet LAN | Yes |
S/PDIF out connector | Yes |
CPU fan connector | Yes |
Number of SATA III connectors | 4 |
ATX Power connector (24-pin) | Yes |
Serial port headers | 1 |
EPS power connector (8-pin) | Yes |
USB 2.0 connectors | 2 |
Front panel audio connector | Yes |
TPM connector | Yes |
Front panel connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
RGB LED pin header | Yes |
12V power connector | Yes |
BIOS Type | UEFI AMI |
Clear CMOS jumper | Yes |
Desktop Management Interface (DMI) version | 2.7 |
Bundled software | Norton Internet Security |
CABLES INCLUDED | SATA |
Supported storage drive types | HDD & SSD |
RAID levels | 5 |
Raid Support | Yes |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |

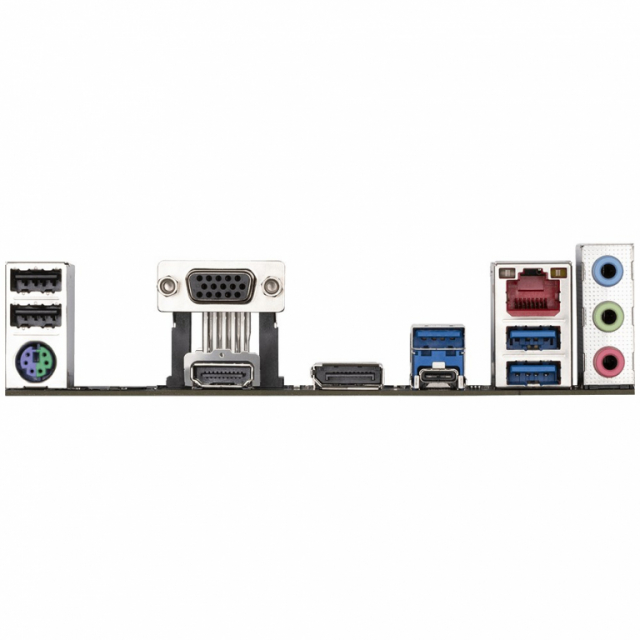

USB connector type | USB Type-A |
Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Microphone in | Yes |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
USB 2.0 ports quantity | 2 |
Headphone outputs | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PCI Express x16 slots | 1 |
Number of M.2 (M) slots | 2 |
PCI Express x1 slots | 1 |
