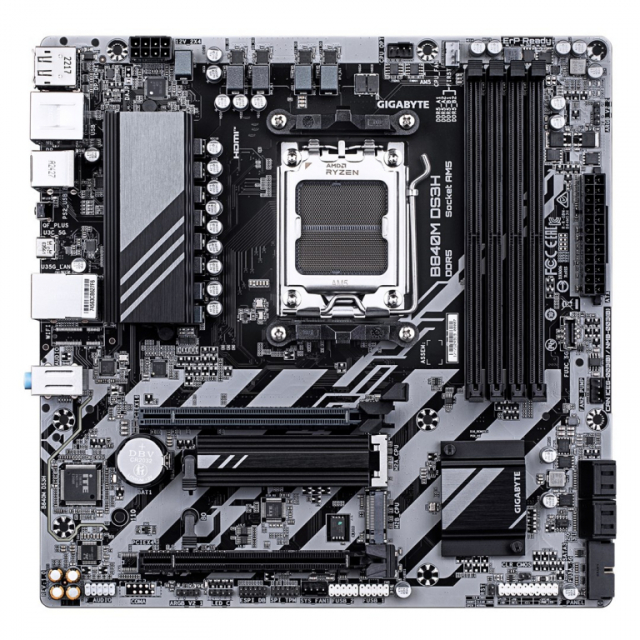

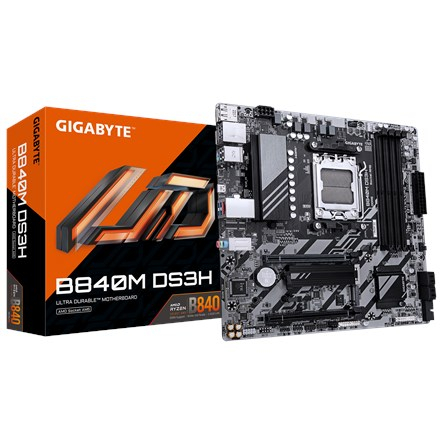

GIGABYTE B840M DS3H Motherboard - AMD Ryzen 9000 CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1

€ 129.50
  • Without TAX: € 104.44
  • Brand:Gigabyte Model:B840M DS3H Availability:Pre-order 3-7 W. Days Quantity:8 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series AMD Ryzen 7000 Series
Processor Socket Socket AM5
Processor manufacturer AMD
Supported processor sockets Socket AM5
HDCP version 2.3
HDCP Yes
Maximum Resolution 4096 x 2160 pixels
Audio output channels 7.1 channels
PC health monitoring Fan
MOTHERBOARD CHIPSET AMD B840
Motherboard chipset family AMD
Windows operating systems supported Windows 11 x64
Motherboard form factor micro ATX
Power source type ATX
Supported memory clock speeds 8000 MHz
Number of memory slots 4
Maximum internal memory 256 GB
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Maximum internal memory per slot 64 GB
Unbuffered memory Yes
ECC сompatibility Non-ECC
Memory channels Dual-channel
Supported memory clock speed (max) 8200 MHz
Depth 174 mm
Width 244 mm
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Number of RGB LED pin headers 3
RGB LED pin header Yes
Number of water pump connectors 2
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
ATX Power connector (24-pin) Yes
Number of SATA III connectors 4
Front panel connector Yes
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of chassis fan connectors 2
USB 2.0 connectors 2
Desktop Management Interface (DMI) version 2.7
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included Yes
Screws included Yes
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Number of HDDs supported 4
Number of storage drives supported 6
Raid Support Yes
RAID levels 1
Number of audio jack connectors 3
DisplayPort version 1.4
DisplayPorts quantity 2
PS/2 ports quantity 1
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Q-Flash Plus Yes
PCI Express x16 (Gen 4.x) slots 1
2nd M.2 highest PCI Express generation 4.0
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2580
2nd M.2 largest key size 25110
Number of M.2 (M) slots 2
PCI Express x16 (Gen 3.x) slots 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
