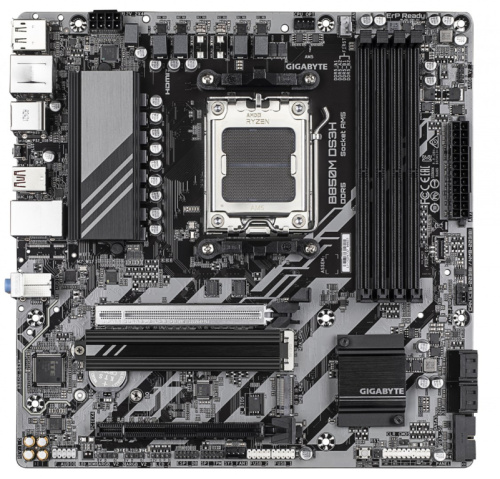

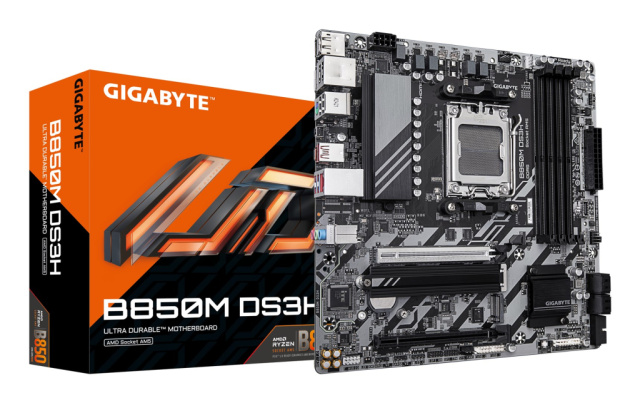

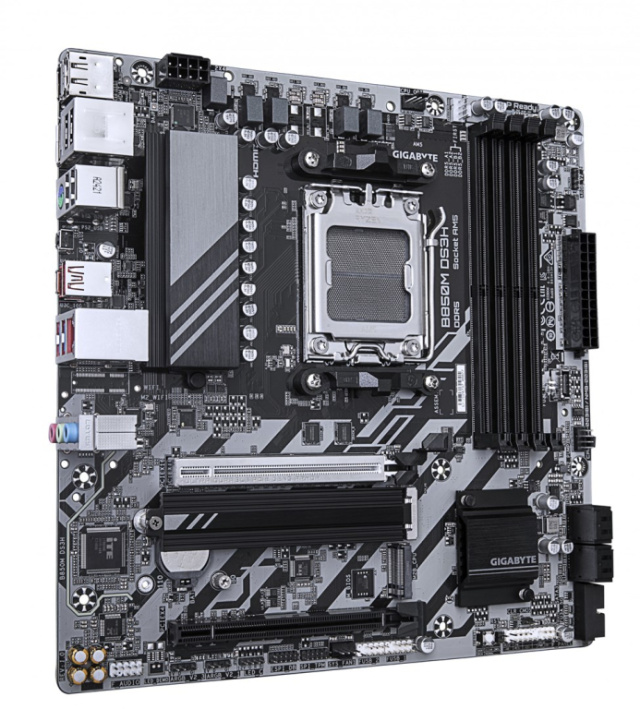

GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2 - Motherboards - Computer Components

€ 169.50

Add to cart

Without TAX: € 136.69
Brand:Gigabyte Model:B850M DS3H Availability:Pre-order 3-7 W. Days Quantity:10 pcs. Warranty:24 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Processor Socket	Socket AM5
Processor manufacturer	AMD
DirectX version	12.0
HDCP	Yes
Maximum Resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
audio chip	Realtek ALC897
PC health monitoring	Water cooling
Motherboard form factor	micro ATX
Product colour	Bronze
MOTHERBOARD CHIPSET	AMD B850
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Power source type	ATX
Component for	PC
Supported memory clock speeds	7000
Unbuffered memory	Yes
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
ECC сompatibility	Non-ECC
Memory slots type	DIMM
Number of memory slots	4
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Supported memory clock speed (max)	8200 MHz
Width	244 mm
Depth	244 mm
Height	35 mm
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of RGB LED pin headers	4
USB 2.0 connectors	2
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	2
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
12V power connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
TPM connector	Yes
EPS power connector (8-pin)	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4
CPU fan connector	Yes
Serial port headers	1
RGB LED pin header	Yes
Front panel connector	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
BIOS Type	UEFI AMI
System management BIOS (SMBIOS) version	2.7
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Package depth	268 mm
Package width	270 mm
PACKAGE WEIGHT	1.34 kg
Package height	68 mm
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Batteries Included	Yes
Antenna included	Yes
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	1
Raid Support	Yes
Number of HDDs supported	4
Number of storage drives supported	6
DisplayPorts quantity	2
HDMI version	2.1
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPort version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Microphone in	Yes
WiFi-AP antenna jack	2
1st M.2 largest key size	25110
2nd M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Weight	1.14 kg
Country of origin	China
