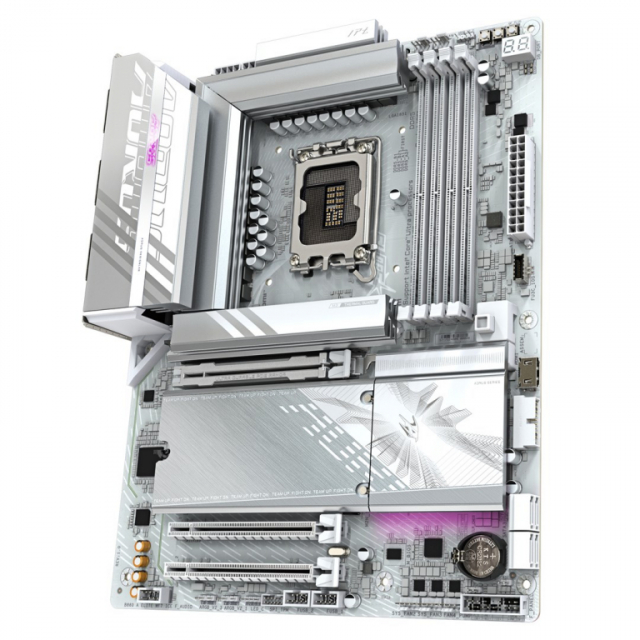

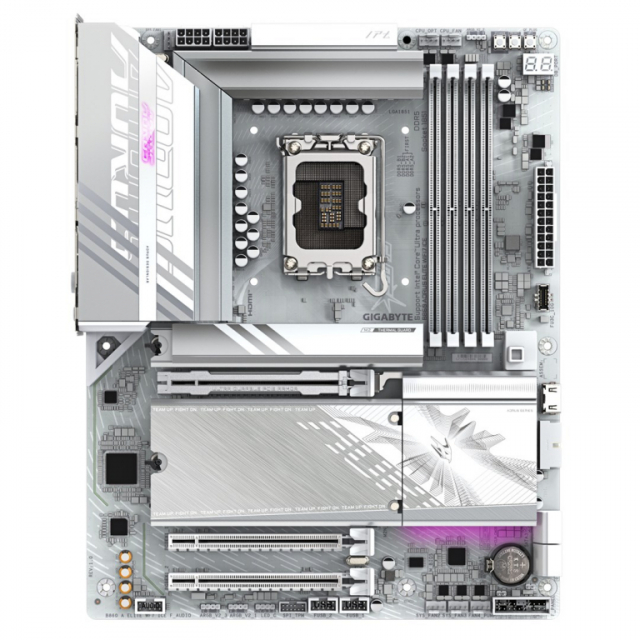

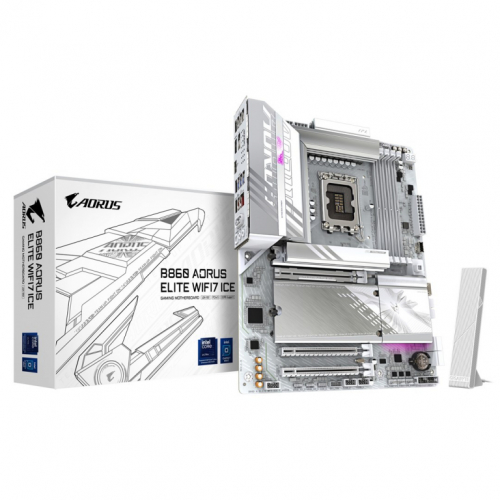

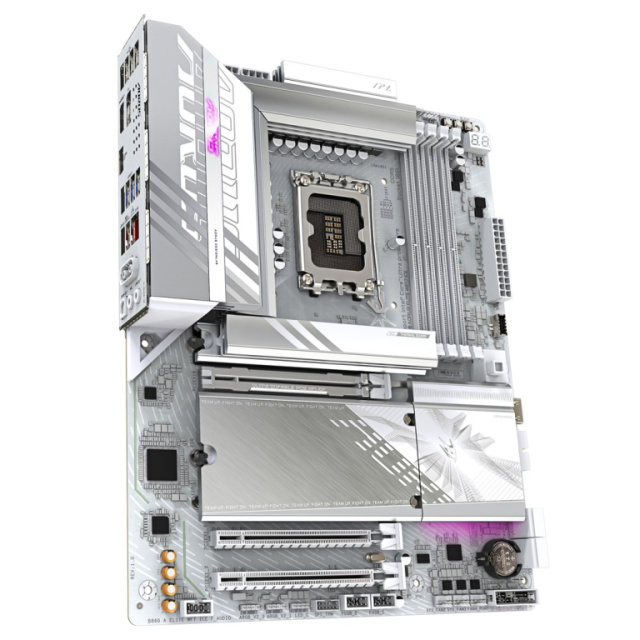

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 7, USB 4

€ 224.00
  • Without TAX: € 180.65
  • Brand:Gigabyte Model:B860 A ELITE WF7 ICE Availability:Pre-order 3-7 W. Days Quantity:1 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Processor manufacturer Intel
Processor Socket LGA 1851 (Socket V1)
Maximum Resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
DirectX version 12.0
HDCP Yes
Motherboard form factor ATX
Motherboard chipset family Intel
Cooling type Passive
Windows operating systems supported Windows 11 x64
Power source type ATX
PC health monitoring Temperature
audio chip Realtek ALC897
MOTHERBOARD CHIPSET Intel B860
Audio output channels 7.1 channels
Product colour White
Supported memory clock speed (max) 9200 MHz
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Number of memory slots 4
Memory channels Dual-channel
Maximum internal memory per slot 64 GB
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 5600
Unbuffered memory Yes
Maximum internal memory 256 GB
Width 305 mm
Depth 244 mm
Height 35 mm
Bluetooth Version 5.4
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi standards Wi-Fi 4 (802.11n)
WLAN controller model Realtek RTL8922AE
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Bluetooth Yes
LAN controller Realtek RTL8125
Front panel audio connector Yes
Number of SATA III connectors 4
CPU fan connector Yes
Number of chassis fan connectors 4
ATX Power connector (24-pin) Yes
TPM connector Yes
Front panel connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
RGB LED pin header Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of RGB LED pin headers 4
Number of EPS power connectors (8-pin) 2
Number of water pump connectors 2
Number of CPU fan connectors 2
USB 2.0 connectors 2
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
BIOS Type UEFI AMI
Package depth 270 mm
Package height 80 mm
PACKAGE WEIGHT 2.49 kg
Package width 335 mm
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Antenna included Yes
Batteries Included Yes
Screws included Yes
RAID levels 0
Raid Support Yes
Number of storage drives supported 7
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III

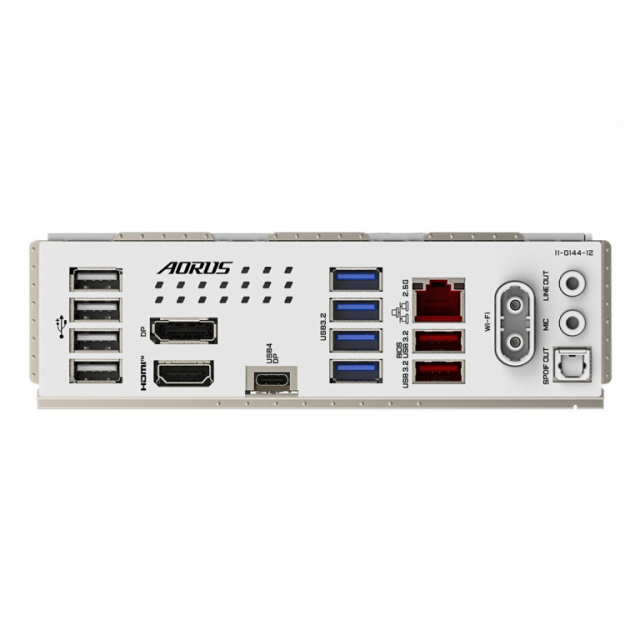

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
DisplayPorts quantity 1
WiFi-AP antenna jack 2
DisplayPort version 2.1
Headphone outputs 1
Digital audio optical out 1
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 4
HDMI version 2.1
Line-in Yes
USB4 Gen 2x2 ports quantity 1
S/PDIF out port Yes
Number of M.2 (M) slots 3
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 25110
3rd M.2 largest key size 22110
1st M.2 highest PCI Express generation 5.0
3rd M.2 highest PCI Express generation 4.0
Battery weight 3 g
Battery type CR2032
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.07 g
Weight 2.21 kg
Country of origin China
Warnings Do not open or modify the Motherboard to prevent damage.
