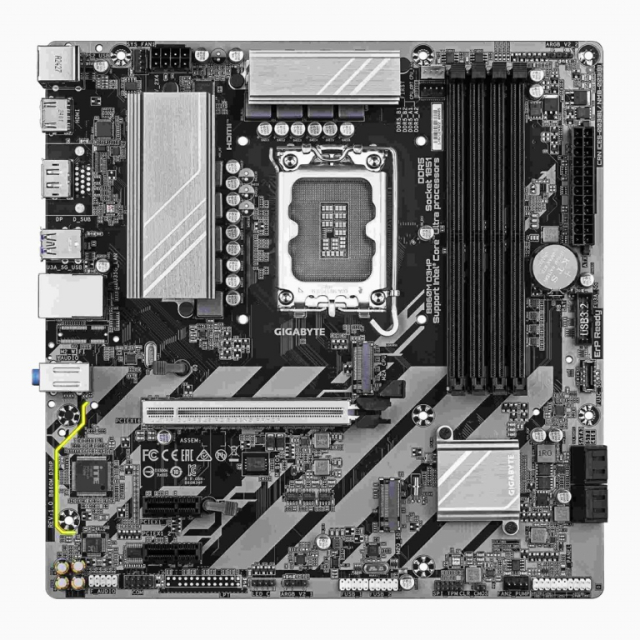

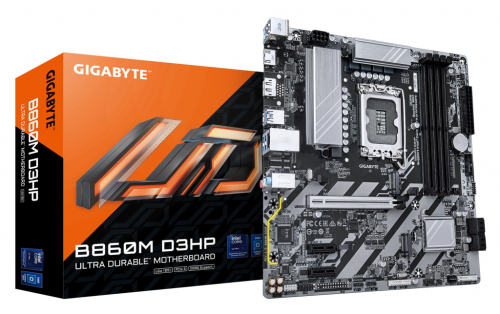

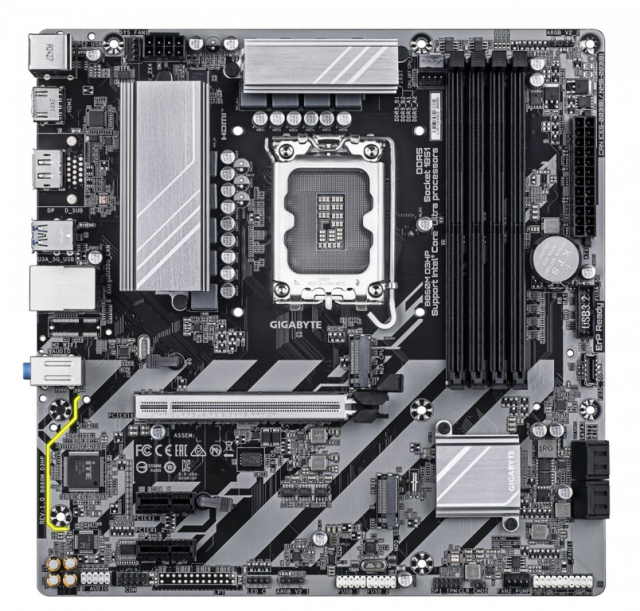

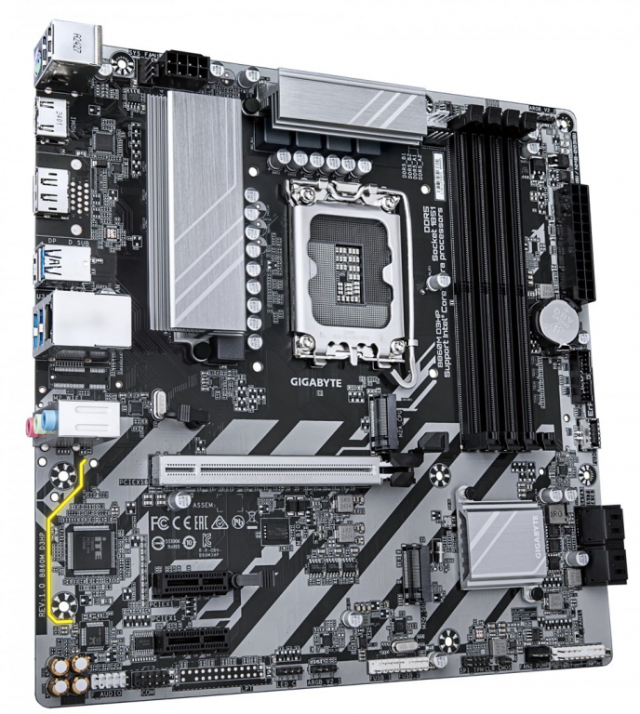

GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
€ 150.00
-+
Add to cart
  • Without TAX: € 122.95
  • Brand:Gigabyte Model:B860M D3HP Availability:Pre-order 3-7 W. Days Quantity:10 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel® Core™ Ultra (Series 1)
Supported processor sockets LGA 1851
Processor manufacturer Intel
Processor Socket LGA 1851 (Socket V1)
Parallel processing technology support Not supported
DirectX version 12.0
HDCP Yes
Maximum Resolution 4096 x 2160 pixels
audio chip Realtek ALC897
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Motherboard chipset family Intel
Component for PC
Power source type ATX
Product colour Dark brown
Windows operating systems supported Windows 11 x64
PC health monitoring Temperature
Cooling type Passive
MOTHERBOARD CHIPSET Intel B860
Supported memory clock speeds 6400
Supported memory clock speed (max) 9066 MHz
Memory slots type DIMM
Memory channels Dual-channel
Unbuffered memory Yes
Number of memory slots 4
Maximum internal memory 256 GB
Supported memory types DDR5-SDRAM
Maximum internal memory per slot 64 GB
ECC сompatibility ECC & Non-ECC
Height 35 mm
Width 244 mm
Depth 244 mm
LAN controller Realtek RTL8111H
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Serial port headers 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Front panel connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
Number of SATA III connectors 4
RGB LED pin header Yes
USB 2.0 connectors 2
Number of chassis fan connectors 2
Front panel audio connector Yes
Number of water pump connectors 2
Number of RGB LED pin headers 3
Number of EPS power connectors (8-pin) 1
Number of CPU fan connectors 2
System management BIOS (SMBIOS) version 2.7
Clear CMOS jumper Yes
BIOS Type UEFI AMI
Desktop Management Interface (DMI) version 2.7
BIOS memory size 256 Mbit
ACPI version 5.0
Package depth 265 mm
Package width 265 mm
Package height 54 mm
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included Yes
Screws included Yes
Raid Support Yes
RAID levels 5
Number of HDDs supported 4
Number of storage drives supported 6
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
HDMI ports quantity 1
DisplayPorts quantity 1
DisplayPort version 2.1
HDMI version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Headphone outputs 1
Ethernet LAN (RJ-45) ports 1
Line-in Yes
USB 2.0 ports quantity 3
PS/2 ports quantity 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
Number of M.2 (M) slots 2
1st M.2 highest PCI Express generation 4.0
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
1st M.2 largest key size 2280
Number of battery cells 1
Battery type CR2032
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight 1.1 kg
Country of origin China
