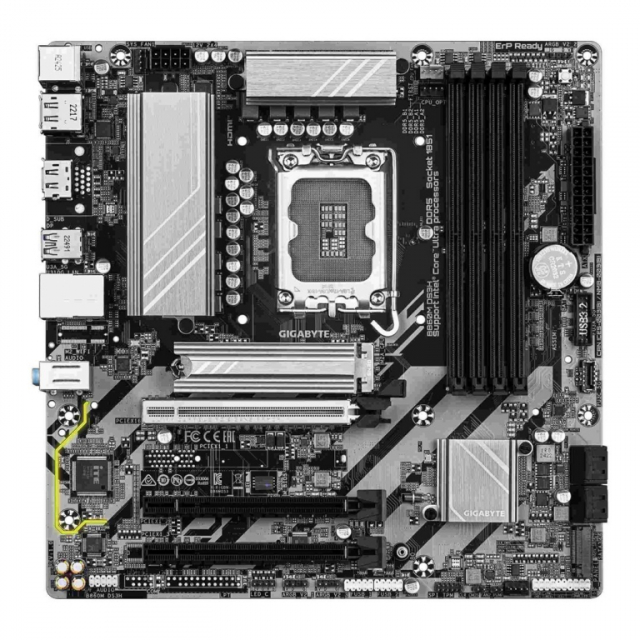

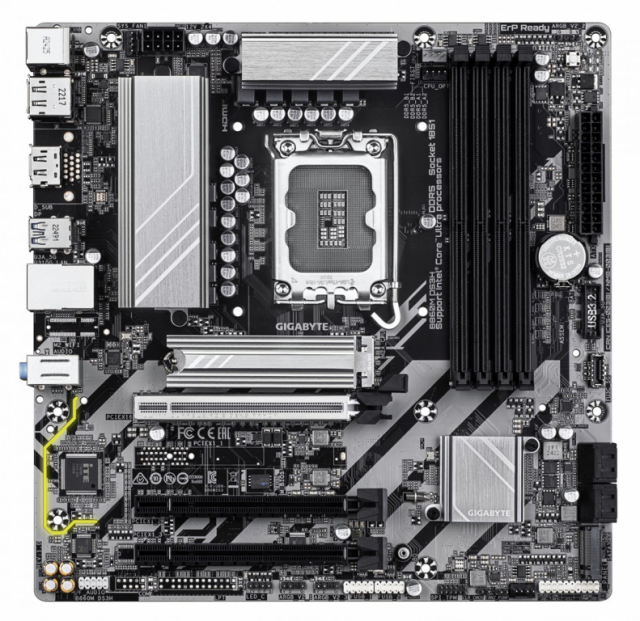

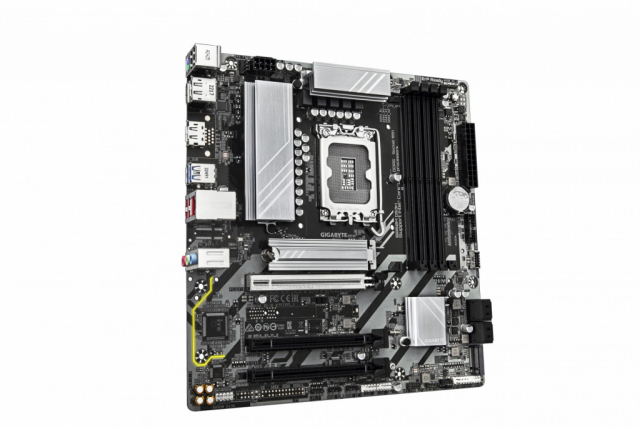

GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2 - Motherboards - Computer Components

€ 152.00

Add to cart

Without TAX: € 122.58
Brand:Gigabyte Model:B860M DS3H Availability:Pre-order 3-7 W. Days Quantity:9 pcs. Warranty:24 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor manufacturer	Intel
Processor Socket	LGA 1851 (Socket V1)
Maximum Resolution	4096 x 2160 pixels
DirectX version	12.0
Parallel processing technology support	Not supported
HDCP	Yes
Product colour	Dark brown
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64
audio chip	Realtek ALC897
Motherboard chipset family	Intel
PC health monitoring	Water cooling
MOTHERBOARD CHIPSET	Intel B860
Power source type	ATX
Component for	PC
Cooling type	Passive
Motherboard form factor	micro ATX
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Supported memory clock speed (max)	9066 MHz
Number of memory slots	4
Supported memory clock speeds	5600
Maximum internal memory per slot	64 GB
Unbuffered memory	Yes
Maximum internal memory	256 GB
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Depth	244 mm
Width	244 mm
Height	35 mm
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Ethernet LAN	Yes
Wi-Fi	No
Front panel connector	Yes
TPM connector	Yes
Number of SATA III connectors	4
EPS power connector (8-pin)	Yes
RGB LED pin header	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
USB 2.0 connectors	2
Number of water pump connectors	2
Front panel audio connector	Yes
Number of chassis fan connectors	2
Number of RGB LED pin headers	4
Number of EPS power connectors (8-pin)	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
System management BIOS (SMBIOS) version	2.7
BIOS Type	UEFI AMI
Desktop Management Interface (DMI) version	2.7
Package width	265 mm
Package depth	265 mm
PACKAGE WEIGHT	1.09 kg
Package height	54 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included	Yes
Screws included	Yes
RAID levels	0
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Raid Support	Yes

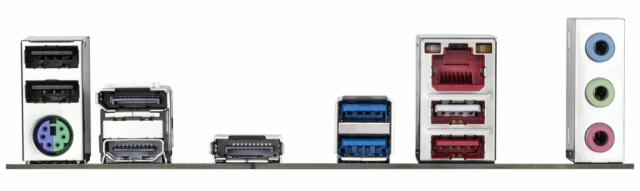

USB 2.0 ports quantity	3
HDMI ports quantity	1
Line-in	Yes
Headphone outputs	1
HDMI version	2.1
Microphone in	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPort version	2.1
PS/2 ports quantity	1
DisplayPorts quantity	2
1st M.2 highest PCI Express generation	5.0
PCI Express x16 (Gen 4.x) slots	5
1st M.2 largest key size	2280
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	2
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
Battery type	CR2032
Lithium weight per battery	0.07 g
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Weight	1 kg
Country of origin	China
