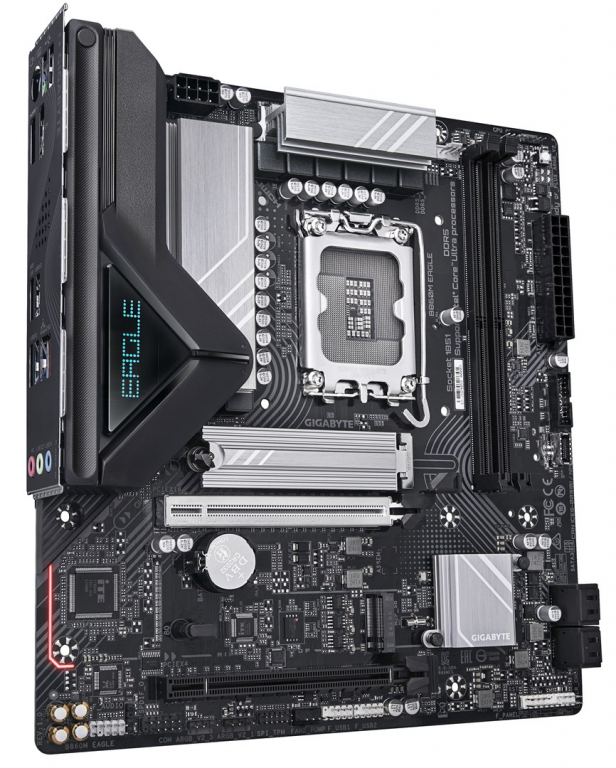

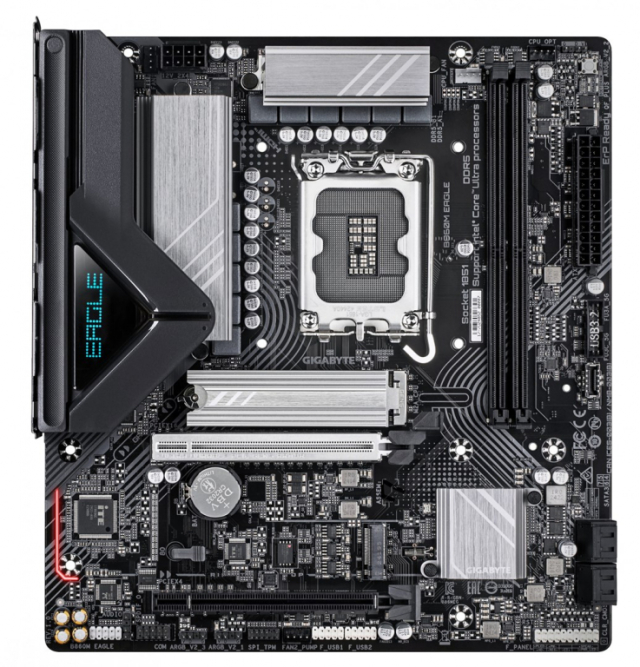

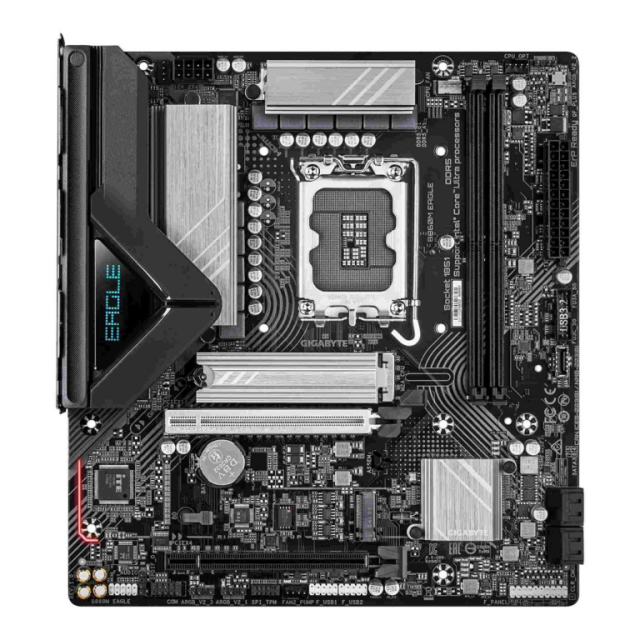

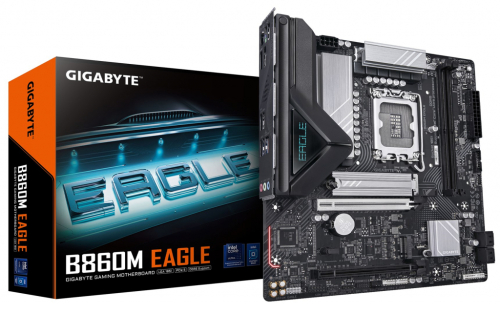

GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1

GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
  • GIGABYTE B860M EAGLE Motherboard - Intel Core Ultra Series CPUs, 6+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
€ 146.50
-+
Add to cart
  • Without TAX: € 120.08
  • Brand:Gigabyte Model:B860M EAGLE Availability:Pre-order 3-7 W. Days Quantity:20 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor Socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851
HDCP Yes
Parallel processing technology support Not supported
DirectX version 12.0
Maximum Resolution 4096 x 2160 pixels
Motherboard chipset family Intel
MOTHERBOARD CHIPSET Intel B860
Windows operating systems supported Windows 11 x64
PC health monitoring Fan
Power source type ATX
audio chip Realtek ALC897
Product colour Dark brown
Audio output channels 7.1 channels
Cooling type Passive
Motherboard form factor micro ATX
Component for PC
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Supported memory clock speeds 9066
Maximum internal memory 128 GB
Unbuffered memory Yes
Memory slots type DIMM
Supported memory clock speed (max) 9066 MHz
Number of memory slots 2
ECC сompatibility ECC & Non-ECC
Supported memory types DDR5-SDRAM
Height 35 mm
Depth 225 mm
Width 244 mm
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
Ethernet LAN Yes
LAN controller Realtek RTL8125
CPU fan connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
S/PDIF out connector Yes
EPS power connector (8-pin) Yes
Serial port headers 1
Number of chassis fan connectors 2
ATX Power connector (24-pin) Yes
Number of water pump connectors 2
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Number of RGB LED pin headers 3
Front panel connector Yes
Front panel audio connector Yes
USB 2.0 connectors 2
RGB LED pin header Yes
Number of CPU fan connectors 2
System management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
BIOS Type UEFI AMI
ACPI version 5.0
Clear CMOS jumper Yes
BIOS memory size 256 Mbit
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included Yes
Screws included Yes
RAID levels 10
Raid Support Yes
Number of storage drives supported 6
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Supported storage drive interfaces M.2, SATA III
Headphone outputs 1

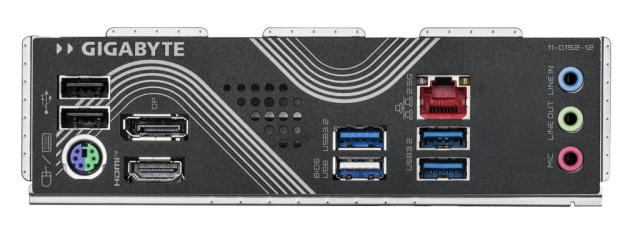

HDMI version 2.1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
DisplayPort version 2.1
Microphone in Yes
Line-in Yes
PS/2 ports quantity 1
DisplayPorts quantity 1
USB 2.0 ports quantity 3
1st M.2 largest key size 2280
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.07 g
Battery type CR2032
Battery weight 3 g
Number of battery cells 1
Weight 1.1 kg
Country of origin China
