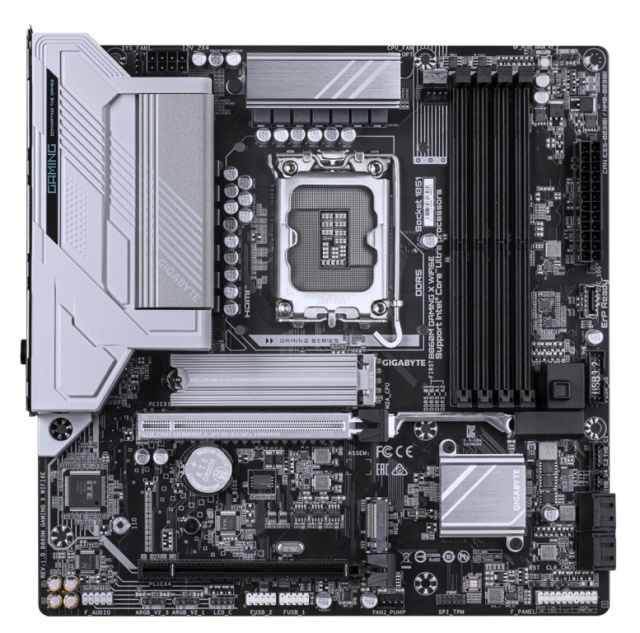

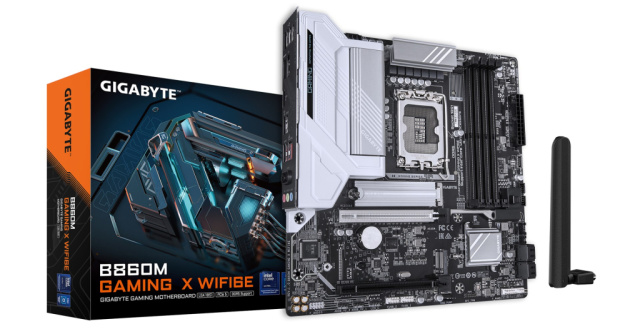

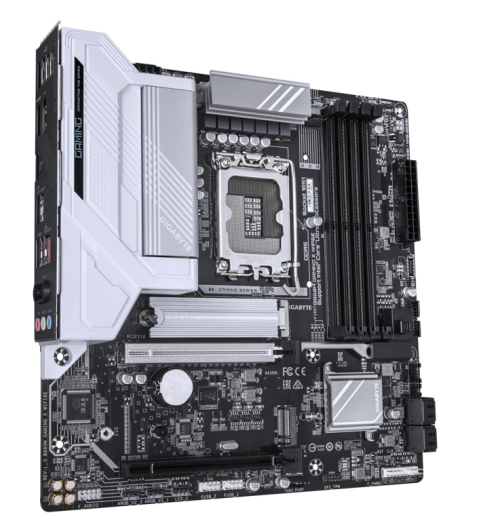

GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
  • GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
  • GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
  • GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
  • GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
€ 198.00
-+
Add to cart
  • Without TAX: € 162.30
  • Brand:Gigabyte Model:B860M GAMING X WIFI6E Availability:Pre-order 3-7 W. Days Quantity:3 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Processor manufacturer Intel
Compatible processor series Intel Core Ultra (Series 2)
Processor Socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851
DirectX version 12.0
Maximum Resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
HDCP Yes
audio chip Realtek ALC897
MOTHERBOARD CHIPSET Intel B860
Product colour Dark brown
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Cooling type Passive
PC health monitoring Temperature
Motherboard chipset family Intel
Power source type ATX
Windows operating systems supported Windows 11 x64
Supported memory clock speed (max) 9200 MHz
Unbuffered memory Yes
Maximum internal memory 256 GB
Supported memory clock speeds 6400
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory per slot 64 GB
ECC сompatibility ECC & Non-ECC
Width 244 mm
Height 35 mm
Depth 244 mm
Bluetooth Yes
LAN controller Realtek RTL8125
Wi-Fi standards Wi-Fi 5 (802.11ac)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Bluetooth Version 5.3
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
WLAN controller model Intel Wi-Fi 6E AX211
Ethernet LAN Yes
Front panel connector Yes
CPU fan connector Yes
TPM connector Yes
Number of SATA III connectors 4
RGB LED pin header Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2
EPS power connector (8-pin) Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 2
Thunderbolt headers 2
Number of water pump connectors 2
Number of RGB LED pin headers 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
BIOS Type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
Package width 270 mm
Package depth 268 mm
PACKAGE WEIGHT 1.43 kg
Package height 68 mm
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included Yes
Screws included Yes
Antenna included Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Raid Support Yes
Number of HDDs supported 4
RAID levels 10
Number of storage drives supported 6

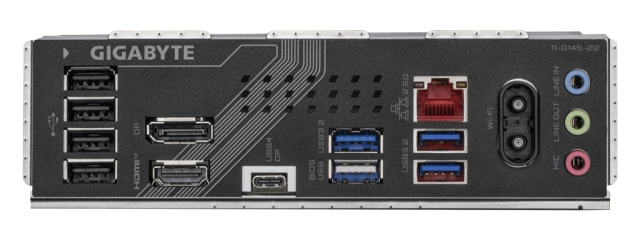

USB4 Gen 2x2 ports quantity 1
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
Line-in Yes
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
DisplayPort version 2.1
USB 2.0 ports quantity 5
HDMI version 2.1
WiFi-AP antenna jack 2
Headphone outputs 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 1
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight 1.23 kg
Country of origin China
Warnings Do not open or modify the Motherboard to prevent damage.
