Warranty period | 3 year(s) |
Processor Socket | LGA 1200 (Socket H5) |
Maximum internal memory supported by processor | 64 GB |
Supported processor sockets | LGA 1200 (Socket H5) |
Processor manufacturer | Intel |
Compatible processor series | Intel® Core™ i3 |
DirectX version | 12.0 |
Product colour | Bronze |
MOTHERBOARD CHIPSET | Intel H410 |
PC health monitoring | Voltage |
Power source type | ATX |
Windows operating systems supported | Windows 11 x64 |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Motherboard chipset family | Intel |
Supported memory module capacities | 12GB |
Maximum internal memory | 64 GB |
Supported memory clock speeds | 2133 |
Unbuffered memory | Yes |
ECC сompatibility | ECC & Non-ECC |
Supported memory clock speed (max) | 2933 MHz |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Width | 226 mm |
Height | 35 mm |
Depth | 185 mm |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
Number of SATA III connectors | 4 |
Power fan connector | Yes |
Total number of SATA connectors | 4 |
EPS power connector (8-pin) | Yes |
USB 2.0 connectors | 1 |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Audio connector | Yes |
CPU fan connector | Yes |
Front panel audio connector | Yes |
12V power connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Clear CMOS button | Yes |
BIOS Type | UEFI |
Package height | 52 mm |
PACKAGE WEIGHT | 728 g |
Package depth | 235 mm |
Package width | 265 mm |
Bundled software | Norton Internet Security (OEM version)
cFosSpeed |
Batteries Included | Yes |
Supported storage drive types | HDD & SSD |
Number of HDDs supported | 4 |
Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
RAID levels | 5 |
Number of storage drives supported | 5 |
Raid Support | Yes |

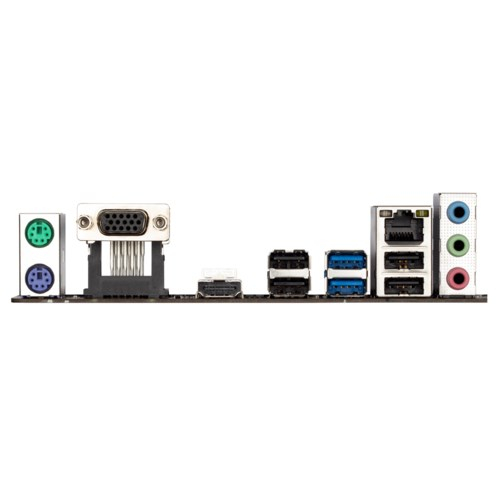

HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
PCI Express x16 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 1 |
PCI Express x1 slots | 2 |
Lithium weight per battery | 0.07 g |
Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
Battery type | CR2032 |
Number of battery cells | 1 |
Battery weight | 3 g |
Country of origin | China |
Harmonized System (HS) code | 84733020 |
