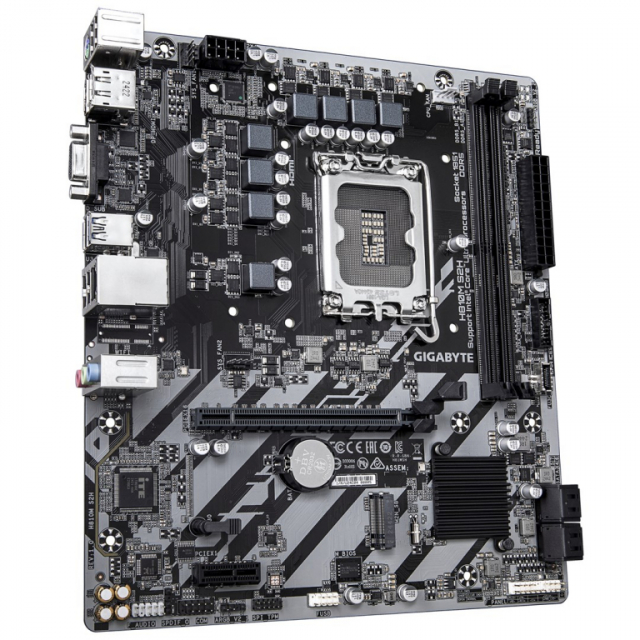

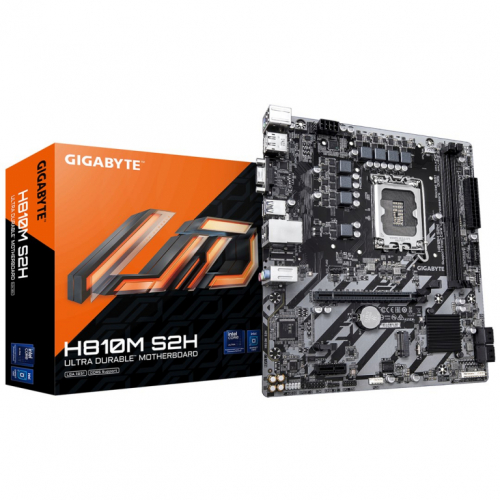

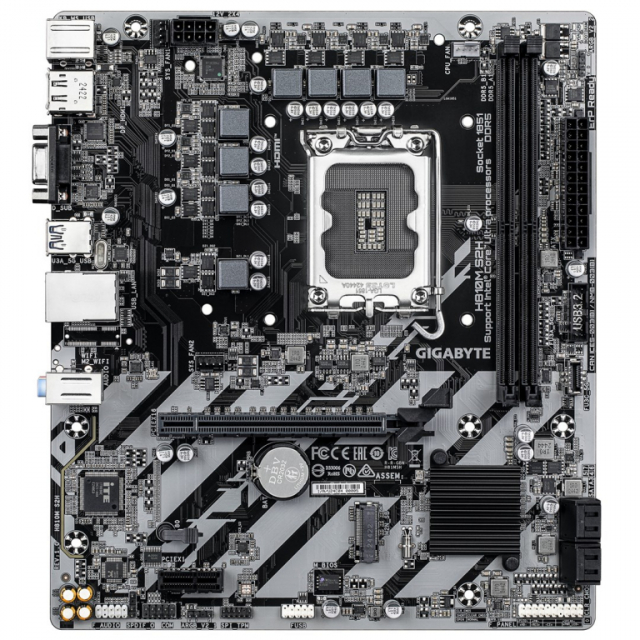

GIGABYTE H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1 - Motherboards - Computer Components

€ 118.00

Add to cart

Without TAX: € 95.16
Brand:Gigabyte Model:521330 Availability:Pre-order 3-7 W. Days Quantity:10 pcs. Warranty:24 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor Socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
HDCP	Yes
Maximum Resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
DirectX version	12.0
Audio output channels	7.1 channels
PC health monitoring	Temperature
MOTHERBOARD CHIPSET	Intel H810
audio chip	Realtek ALC897
Product colour	Dark brown
Windows operating systems supported	Windows 10 x64
Motherboard form factor	micro ATX
Component for	PC
Power source type	ATX
Cooling type	Passive
Motherboard chipset family	Intel
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Supported memory clock speed (max)	6400 MHz
Number of memory slots	2
Maximum internal memory per slot	64 GB
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	6400
Maximum internal memory	128 GB
Unbuffered memory	Yes
Height	35 mm
Width	244 mm
Depth	215 mm
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
RGB LED pin header	Yes
Number of RGB LED pin headers	2
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Serial port headers	1
CPU fan connector	Yes
TPM connector	Yes
Front panel connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
S/PDIF out connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
USB 2.0 connectors	1
Front panel audio connector	Yes
Desktop Management Interface (DMI) version	2.7
System management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
BIOS Type	UEFI AMI
Package height	54 mm
PACKAGE WEIGHT	872 g
Package depth	265 mm
Package width	265 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included	Yes
Screws included	Yes
Number of HDDs supported	4
Number of storage drives supported	5
RAID levels	10
Raid Support	Yes
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Microphone in	Yes
HDMI version	2.1
Line-in	Yes
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPort version	2.1
USB 2.0 ports quantity	5
PCI Express x16 (Gen 4.x) slots	1
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3 g
Battery type	CR2032
Lithium weight per battery	0.07 g
Weight	790 g

Delivery information:

1. Collect in Store, free (Tallinn, Vana-Lõuna 19 street, M-F 9:00-17.00):
Collect in Store	3-7 W. Days	Free

2. SmartPOST automat (3eur / order over 20eur - 2eur / over 200eur - free):
Smartpost	4-8 W. Days	2 EUR

3. Omniva automat (3eur / order over 20eur - 2eur / over 200eur - free):
Omniva	4-8 W. Days	2 EUR

4. DPD Pickup (2 EUR / order over 100 EUR - free):
DPD Pickup	4-8 W. Days	Free

5. Venipak Pickup (2 EUR / order over 100 EUR - free):
Venipak Pakiautomaat	4-8 W. Days	Free

6. Curier:
Curier in Estonia	4-8 W. Days	5 EUR
