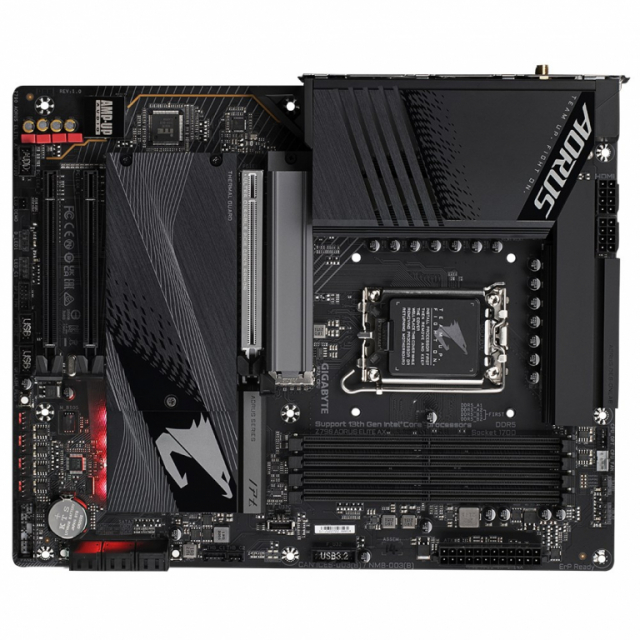

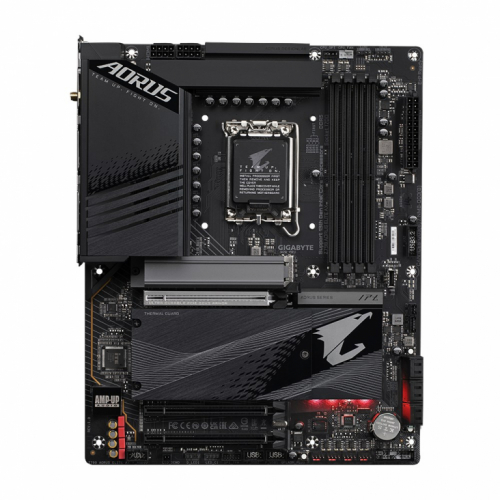

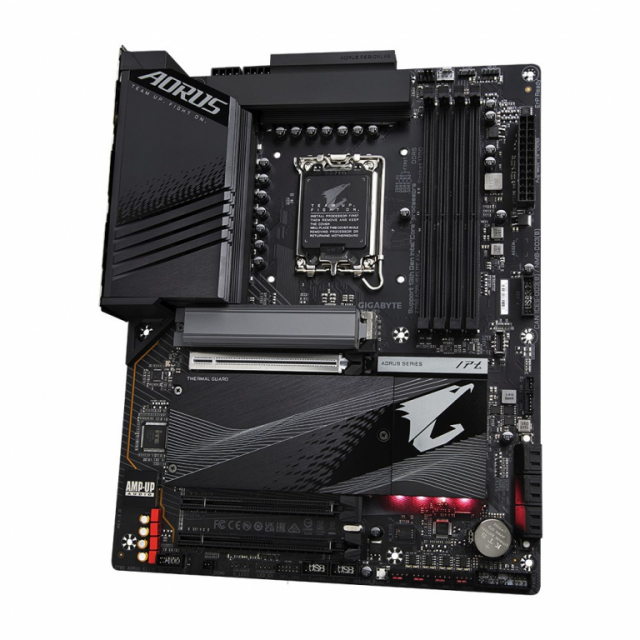

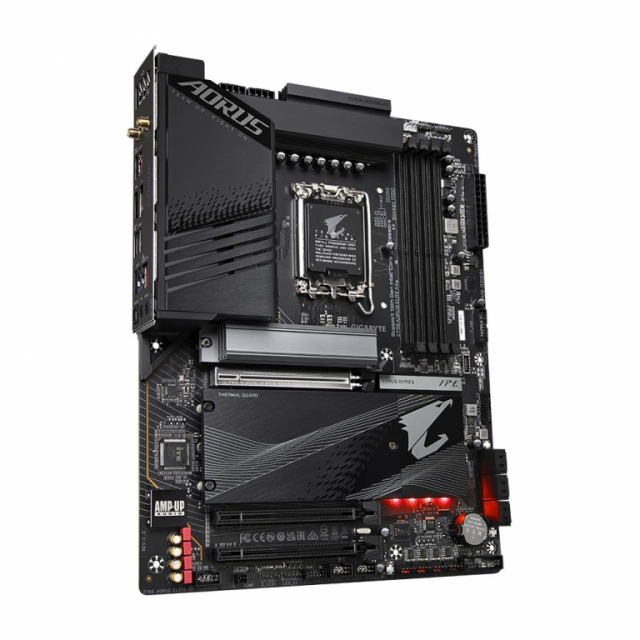

GIGABYTE Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

€ 231.00
  • Without TAX: € 189.34
  • Brand:Gigabyte Model:Z790 AORUS ELITE AX 1.0 Availability:Pre-order 3-7 W. Days Quantity:10 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Compatible processor series Intel® Core™ i7
Processor manufacturer Intel
Supported processor sockets LGA 1700
Processor Socket LGA 1700
Maximum internal memory supported by processor 192 GB
Parallel processing technology support CrossFire
Maximum Resolution 4096 x 2304 pixels
On-board graphics card No
HDCP Yes
DirectX version 12.0
Windows operating systems supported Windows 11 x64
Motherboard chipset family Intel
Audio output channels 7.1 channels
PC health monitoring Voltage
Motherboard form factor ATX
MOTHERBOARD CHIPSET Intel Z790
Product colour Black
Number of memory slots 4
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speed (max) 7600 MHz
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 6000
Maximum internal memory 192 GB
Unbuffered memory Yes
Depth 244 mm
Height 35 mm
Width 305 mm
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi standards 802.11g
Bluetooth Version 5.3
Ethernet LAN Yes
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Bluetooth Yes
RGB LED pin header Yes
12V power connector Yes
CPU fan connector Yes
Front panel audio connector Yes
Front panel connector Yes
Total number of SATA connectors 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
EPS power connector (8-pin) Yes
Number of SATA III connectors 6
ATX Power connector (24-pin) Yes
Thunderbolt headers 2
USB 2.0 connectors 2
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
BIOS Type UEFI AMI
Clear CMOS button Yes
PACKAGE WEIGHT 2.32 kg
Package depth 270 mm
Package height 80 mm
Package width 335 mm
Bundled software Norton Internet Security
CABLES INCLUDED SATA
Batteries Included Yes
RAID levels 1
Number of storage drives supported 10
Number of HDDs supported 6
Raid Support Yes
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
WiFi-AP antenna jack 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Microphone in Yes
USB connector type USB Type-C
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 4
Headphone outputs 2
DisplayPort version 1.2
HDMI version 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
HDMI ports quantity 1
DisplayPorts quantity 1
S/PDIF out port Yes
Number of M.2 (M) slots 4
PCI Express x16 slots 3
Battery weight 3 g
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Lithium weight per battery 0.07 g
Country of origin China
Warnings Before starting any maintenance or installation, disconnect the product from the power supply.
