AMD B650 | SAM5 | ATX | DDR5 | 6400 MHz | Memory slots 4 | 2xPCI-Express 4.0 1x | 2xPCI-Express 4.0 16x | 3xM.2 | 1xHDMI | 1xAudio-In | 1xAudio-Out | 1xMicrophone | 4xUSB 2.0 | 7xUSB 3.2 | 2xUSB-C | 1xRJ45 | SATA | USB 2.0 | USB 3.2 | Video Depending on CPU | Audio Realtek ALC897 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 10 | TPM Header
Description | - Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400+(OC)
- 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2),
4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Rear),
1 USB 3.2 Gen2 Type-C (Front),
9 USB 3.2 Gen1 (7 Rear, 2 Front),
8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN |
Vendor Homepage | www.asrock.com/mb/AMD/B650%20PG%20Lightning/ |

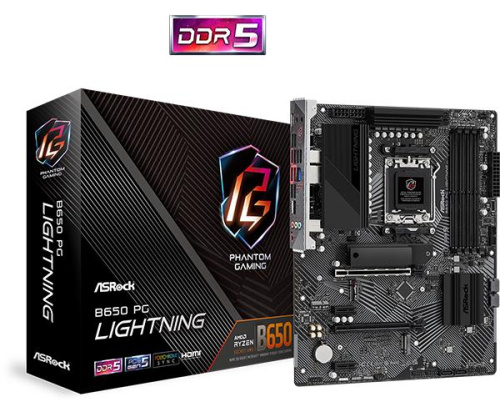

Model | B650 PG Lightning |
Chipset | AMD B650 |
Socket | SAM5 |
Form factor | ATX |
Memory type | DDR5 |
Frequency speed | 6400 MHz |
Memory slots | 4 |
M.2 | 3 |
PCI-Express 4.0 16x | 2 |
PCI-Express 4.0 1x | 2 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
Microphone | 1 |
RJ45 | 1 |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | 2 |
SATA | Yes |
Integrated video | Depending on CPU |
Integrated audio | Realtek ALC897 |
Integrated LAN | 2.5 Gigabit |
RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
Trusted Platform Module (TPM) | Header |
Included Accessories | - 1 x User Manual
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets |
Unit Net Weight | 1.4 kg |
Unit Gross Weight | 1.71 kg |
CnCode | 84733020 |
Unit Box Width | 0.3 |
Unit Box Length | 0.36 |
Unit Box Height | 0.08 |
Full Description Line | AMD B650|SAM5|ATX|DDR5|6400 MHz|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header |
Category Code | MBA |
