AMD A620 | Micro-ATX | DDR5 | 6400/6200/6000/5600/5400/5200/5000/4800 MHz | Memory slots 2 | 1xPCI-Express 3.0 1x | 1xPCI-Express 4.0 16x | 1xM.2 | 1x15pin D-sub | 1xHDMI | 2xUSB 2.0 | 4xUSB 3.2 | 1xPS/2 | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10; PCIe 0, 1, 10 | TPM Header
Description | AMD A620 micro-ATX Motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the Microphone and audio output for crystal-clear communication in games or video conferences
|
Vendor Homepage | www.asus.com/motherboards-components/motherboards/prime/prime-a620m-k/techspec/ |

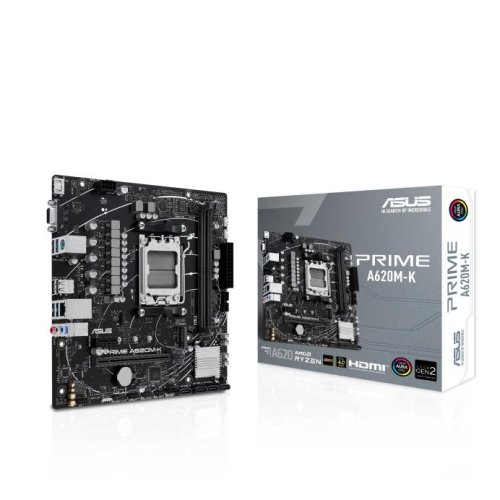

Model | PRIME A620M-K |
Chipset | AMD A620 |
Form factor | Micro-ATX |
Memory type | DDR5 |
Frequency speed | 5400/6200/4800/6400/6000/5200/5000/5600 MHz |
Memory slots | 2 |
PCI-Express 4.0 16x | 1 |
PCI-Express 3.0 1x | 1 |
M.2 | 1 |
HDMI | 1 |
USB 2.0 | Yes |
PS/2 | 1 |
USB 3.2 | Yes |
Audio port | 3 |
15pin D-sub | 1 |
RJ45 | 1 |
SATA | Yes |
Integrated video | Depending on CPU |
Integrated audio | Yes |
Integrated LAN | Gigabit |
RAID | SATA 0, 1, 10; PCIe 0, 1, 10 |
Trusted Platform Module (TPM) | Header |
Included Accessories | Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide |
Unit Net Weight | 0.75 kg |
Unit Gross Weight | 0.959 kg |
Unit Box Width | 0.265 |
Unit Box Length | 0.27 |
Unit Box Height | 0.05 |
Full Description Line | AMD A620|Micro-ATX|DDR5|6400/6200/6000/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10|TPM Header |
Category Code | MBA |
