AMD B650 | SAM5 | ATX | DDR5 | 6400/6200/6000/5800/5600/5400/5200/4800 MHz | Memory slots 4 | 2xPCI-Express 4.0 1x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 6xUSB 3.2 | 2xUSB-C | 1xRJ45 | 5xAudio port | USB 2.0 | USB 3.2 | Bluetooth | WiFi | SATA 3.0 | Video Depending on CPU | Audio Realtek ALC4080 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 10

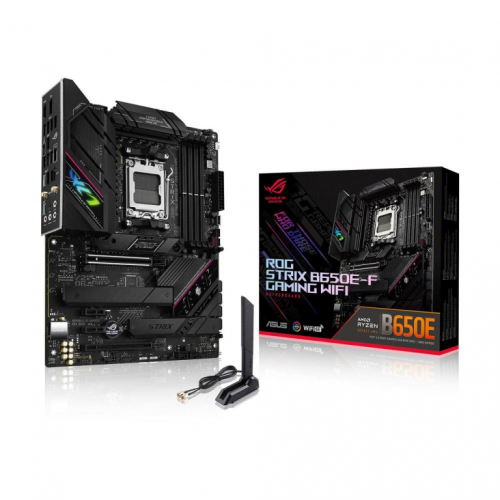

Description | ROG STRIX B650E-F GAMING WIFI
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
|
Vendor Homepage | rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/ |
Model | ROG STRIX B650E-F GAMING WIFI |
Chipset | AMD B650 |
Socket | SAM5 |
Form factor | ATX |
Memory type | DDR5 |
Frequency speed | 4800/5200/5400/5600/5800/6000/6200/6400 MHz |
Memory slots | 4 |
M.2 | 3 |
PCI-Express 4.0 16x | 1 |
PCI-Express 4.0 1x | 2 |
PCI-Express 5.0 16x | 1 |
Audio port | 5 |
DisplayPort | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | 2 |
Bluetooth | Yes |
SATA 3.0 | Yes |
WiFi | Yes |
Integrated video | Depending on CPU |
Integrated audio | Realtek ALC4080 |
Integrated LAN | 2.5 Gigabit |
RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
Included Accessories | Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation
1 x User guide |
Unit Net Weight | 1.7 kg |
Unit Gross Weight | 2.09 kg |
CnCode | 84733020 |
Unit Box Width | 0.075 |
Unit Box Length | 0.34 |
Unit Box Height | 0.275 |
Full Description Line | AMD B650|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10 |
Category Code | MBA |
