AMD B650 | SAM5 | ATX | DDR5 | 7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800 MHz | Memory slots 4 | 1xPCI-Express 16x | 3xPCI-Express 3.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 6xUSB 2.0 | 2xUSB 3.2 | 1xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB-C | USB 2.0 | USB 3.2 | WiFi | Serial | Video Depending on CPU | Audio Realtek ALC897 | LAN Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 10 | TPM Header

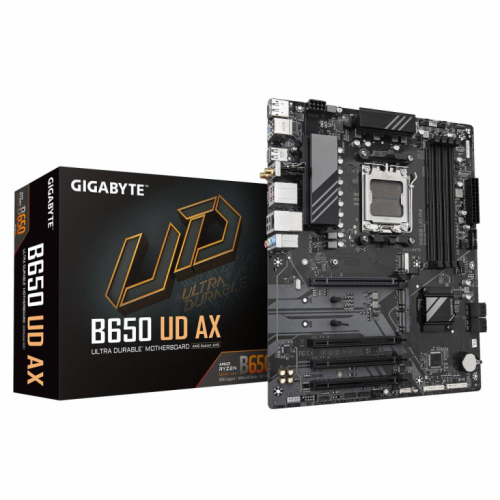

Description | B650 UD AX (rev. 1.0)
AMD B650 Chipset
- AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance:6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6 802.11ax & GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
|
Vendor Homepage | www.gigabyte.com/Motherboard/B650-UD-AX-rev-10#kf |
Model | B650 UD AX (rev. 1.0) |
Chipset | AMD B650 |
Socket | SAM5 |
Form factor | ATX |
Memory type | DDR5 |
Frequency speed | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
Memory slots | 4 |
M.2 | 3 |
PCI-Express 16x | 1 |
PCI-Express 3.0 16x | 3 |
Audio port | 3 |
DisplayPort | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | Yes |
SATA | Yes |
Serial | Yes |
WiFi | Yes |
Integrated video | Depending on CPU |
Integrated audio | Realtek ALC897 |
Integrated LAN | Gigabit |
RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
Trusted Platform Module (TPM) | Header |
Unit Net Weight | 1.2 kg |
Unit Gross Weight | 1.59 kg |
CnCode | 84733020 |
Unit Box Width | 0.27 |
Unit Box Length | 0.34 |
Unit Box Height | 0.08 |
Full Description Line | AMD B650|SAM5|ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5600/5200/4800 MHz|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|WiFi|Serial|Video Depending on CPU|Audio Realtek ALC897|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header |
Category Code | MBA |
