Intel Z790 | LGA1700 | ATX | DDR5 | 7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 1xPCI-Express 1x | 3xPCI-Express 16x | 4xM.2 | 1xHDMI | 1xDisplayPort | 1xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xOptical S/PDIF | 1xRJ45 | 5xAudio port | SATA | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC4080 | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header

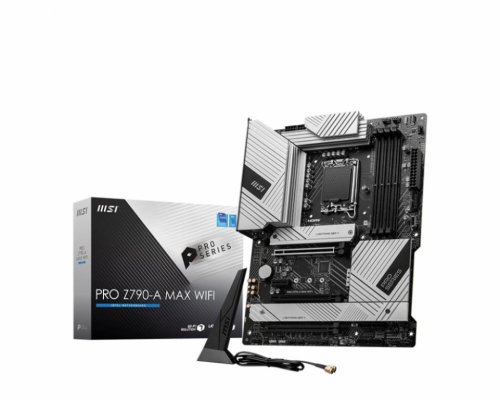

Description | PRO Z790-A MAX WIFI
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience |
Vendor Homepage | www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI |
Model | PRO Z790-A MAX WIFI |
Chipset | Intel Z790 |
Socket | LGA1700 |
Form factor | ATX |
Memory type | DDR5 |
Frequency speed | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz |
Memory slots | 4 |
M.2 | 4 |
PCI-Express 16x | 3 |
PCI-Express 1x | 1 |
Audio port | 5 |
DisplayPort | 1 |
HDMI | 1 |
Optical S/PDIF | 1 |
RJ45 | 1 |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | 1 |
Bluetooth | Yes |
SATA | Yes |
WiFi | Yes |
Integrated video | Depending on CPU |
Integrated LAN | 2.5 Gigabit |
Integrated audio | Realtek ALC4080 |
RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
Trusted Platform Module (TPM) | Header |
Unit Net Weight | 1.5 kg |
Unit Gross Weight | 2.15 kg |
CnCode | 84733020 |
Category Code | MBI |
Full Description Line | Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header |
