Processor manufacturer | Intel |
Maximum number of SMP processors | 1 |
Compatible processor series | Intel Core Ultra (Series 2) |
Processor Socket | LGA1851 |
Motherboard form factor | ATX |
Operating system architecture | 64-bit |
Windows operating systems supported | Windows 11 |
Motherboard chipset family | Intel |
Audio output channels | 7.1 channels |
MOTHERBOARD CHIPSET | Intel B860 |
audio chip | Realtek ALC1220 |
Supported memory types | DDR5-SDRAM |
Maximum internal memory | 256 GB |
Unbuffered memory | Yes |
Number of memory slots | 4 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Width | 305 mm |
Depth | 244 mm |
Ethernet LAN | Yes |
Wi-Fi standards | Wi-Fi 4 (802.11n) |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth Version | 5.3 |
Wi-Fi | Yes |
LAN controller | Killer E3100G |
Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
MU-MiMO | Yes |
RGB LED pin header | Yes |
CPU fan connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
Number of chassis fan connectors | 5 |
USB 2.0 connectors | 2 |
ATX Power connector (24-pin) | Yes |
Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
BIOS Type | UEFI AMI |

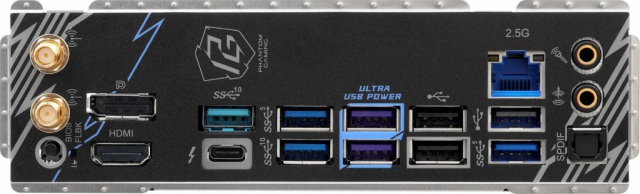

DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Microphone in | Yes |
HDMI version | 2.1 |
S/PDIF out port | Yes |
Line-out | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
DisplayPort version | 1.4 |
Number of USB 2.0 Type-A ports | 3 |
Number of Wi-Fi antenna ports | 2 |
Thunderbolt 4 ports quantity | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Warnings | Dispose of in accordance with local regulations for electronic waste. |
