Supported processor sockets | Socket AM4 |
Maximum number of SMP processors | 1 |
Processor Socket | Socket AM4 |
Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
Processor manufacturer | AMD |
Maximum Resolution | 4096 x 2160 pixels |
Parallel processing technology support | Not supported |
Maximum graphics card memory | 16000 MB |
Product colour | Black |
Motherboard chipset family | AMD |
audio chip | Realtek ALC892 |
Motherboard form factor | micro ATX |
MOTHERBOARD CHIPSET | AMD B550 |
Audio output channels | 7.1 channels |
Number of mounting holes | 8 |
Supported memory clock speeds | 3200 |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Memory channels | Dual-channel |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Number of memory slots | 4 |
Height | 65 mm |
Depth | 244 mm |
Width | 244 mm |
Bluetooth | Yes |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
LAN controller | Realtek 8111HN |
Wi-Fi | Yes |
Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Bluetooth Version | 4.2 |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Serial port headers | 1 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 3 |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |
12V power connector | Yes |
RGB LED pin header | Yes |
Clear CMOS jumper | Yes |
Drivers included | Yes |
CABLES INCLUDED | SATA |
Supported storage drive types | HDD & SSD |
Raid Support | Yes |
Supported storage drive interfaces | SATA III |
RAID levels | 10 |

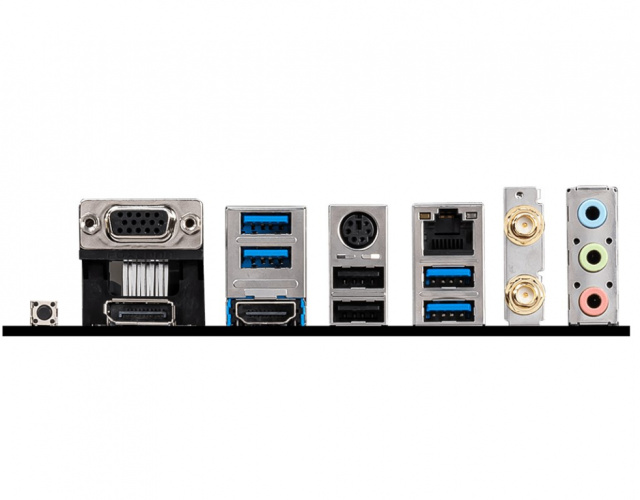

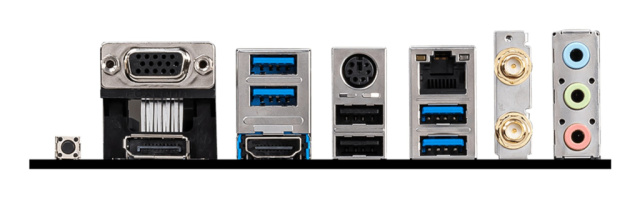

DisplayPorts quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 2 |
PS/2 ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
WiFi-AP antenna jack | 2 |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
Weight | 1 kg |
Harmonized System (HS) code | 84733020 |
