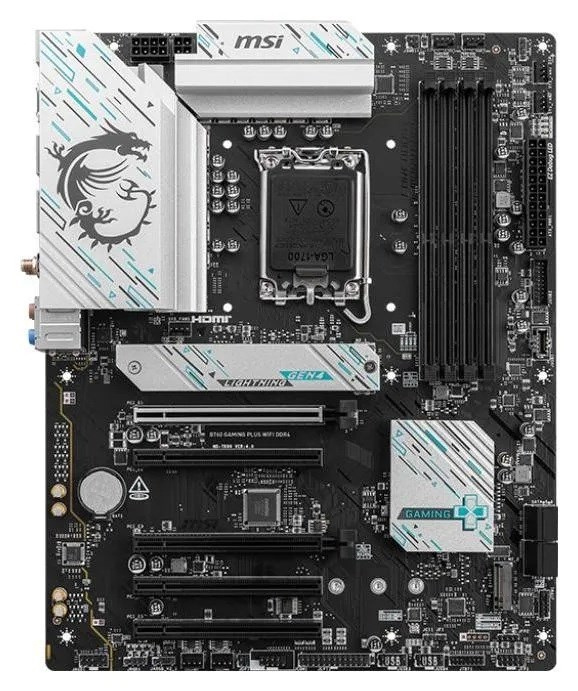

Processor Socket | LGA 1700 |
Compatible processor series | Intel® Celeron® |
Maximum internal memory supported by processor | 128 GB |
Processor manufacturer | Intel |
Supported processor sockets | LGA 1700 |
audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 x64 |
Motherboard form factor | ATX |
MOTHERBOARD CHIPSET | Intel B760 |
Memory slots type | DIMM |
Supported memory clock speeds | 3800 |
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory channels | Dual-channel |
Maximum internal memory | 128 GB |
Width | 243.8 mm |
Depth | 304.8 mm |
Wi-Fi standards | 802.11b |
Wi-Fi | Yes |
LAN controller | Dragon RTL8125BG |
Bluetooth Version | 5.3 |
Bluetooth | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Total number of SATA connectors | 4 |
RGB LED pin header | Yes |
TPM connector | Yes |
USB 2.0 connectors | 4 |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
S/PDIF out connector | Yes |
BIOS Type | UEFI AMI |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
RAID levels | 0 |
Supported storage drive interfaces | M.2, SATA |
Raid Support | Yes |

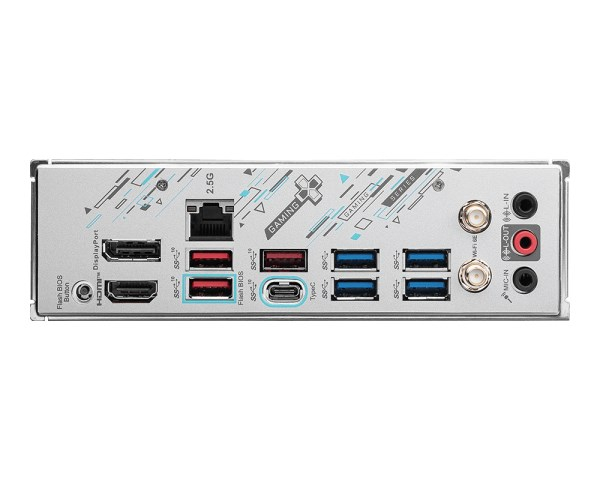

HDMI ports quantity | 1 |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
DisplayPort version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
S/PDIF out port | Yes |
PCI Express x1 slots | 3 |
PCI Express x16 slots | 2 |
PCI Express x16 (Gen 4.x) slots | 2 |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 3 |
