Supported processor sockets | LGA 1700 |
Processor Socket | LGA 1700 |
Compatible processor series | Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Processor manufacturer | Intel |
On-board graphics card | No |
audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Product colour | Black |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Power source type | ATX |
Windows operating systems supported | Windows 11 |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 5000 |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Supported memory clock speed (max) | 7000 MHz |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
ECC сompatibility | Non-ECC |
Width | 243.8 mm |
Depth | 304.8 mm |
Bluetooth | Yes |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Bluetooth Version | 5.3 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |
Number of SATA III connectors | 4 |
CPU fan connector | Yes |
S/PDIF out connector | Yes |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
TPM connector | Yes |
Front panel connector | Yes |
RGB LED pin header | Yes |
BIOS Type | UEFI AMI |
Raid Support | Yes |
RAID levels | 5 |
Supported storage drive interfaces | M.2, SATA III |

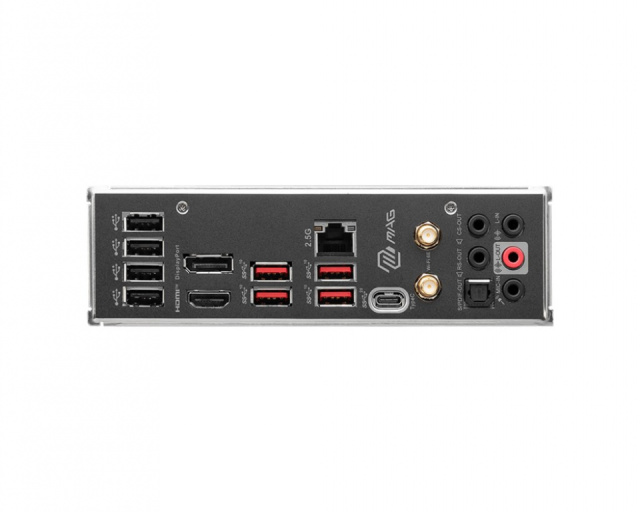

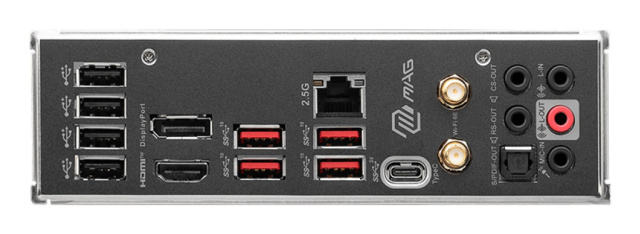

DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
HDMI version | 2.1 |
Number of M.2 (M) slots | 3 |
PCI Express x16 slots | 2 |
PCI Express x1 (Gen 3.x) slots | 1 |
