Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen 9000 Series |
Processor Socket | Socket AM5 |
Supported processor sockets | Socket AM5 |
Maximum internal memory supported by processor | 256 GB |
On-board graphics card | No |
MOTHERBOARD CHIPSET | AMD X870E |
Product colour | Black |
Audio output channels | 7.1 channels |
PC health monitoring | CPU |
Motherboard chipset family | AMD |
Motherboard form factor | ATX |
Memory slots type | DIMM |
Maximum internal memory | 256 GB |
Supported memory clock speeds | 4800 |
Memory channels | Dual-channel |
Supported memory clock speed (max) | 8400 MHz |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
ECC сompatibility | Non-ECC |
Width | 243.8 mm |
Depth | 304.8 mm |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Bluetooth | Yes |
Ethernet interface type | 5 Gigabit Ethernet |
Bluetooth Version | 5.4 |
LAN controller | Realtek RTL8126 |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Ethernet LAN | Yes |
CPU fan connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Total number of SATA connectors | 4 |
EPS power connector (8-pin) | Yes |
USB 2.0 connectors | 4 |
Number of SATA III connectors | 4 |
ATX Power connector (24-pin) | Yes |
Number of storage drives supported | 8 |
Number of HDDs supported | 4 |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |

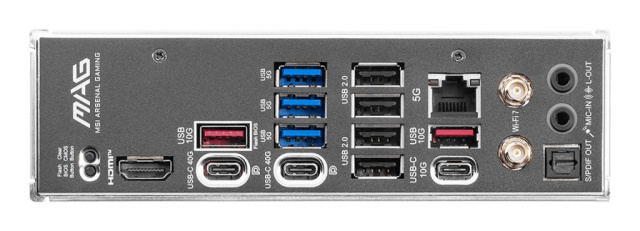

S/PDIF out port | Yes |
HDMI ports quantity | 1 |
USB4 Gen 2x2 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
HDMI version | 2.1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 4 |
Microphone in | Yes |
DisplayPorts quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
3rd M.2 largest key size | 2280 |
2nd M.2 highest PCI Express generation | 5.0 |
1st M.2 largest key size | 22110 |
3rd M.2 highest PCI Express generation | 4.0 |
2nd M.2 largest key size | 2280 |
4th M.2 highest PCI Express generation | 4.0 |
1st M.2 highest PCI Express generation | 5.0 |
4th M.2 largest key size | 2280 |
Warnings | Avoid contact with liquids to prevent electronic damage. |
