Supported processor sockets | Socket AM5 |
Processor Socket | Socket AM5 |
Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen 7000 Series |
On-board graphics card | No |
MOTHERBOARD CHIPSET | AMD B650 |
audio chip | Realtek ALC897 |
Product colour | Black |
Motherboard chipset family | AMD |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 11 x64 |
PC health monitoring | Fan |
Motherboard form factor | micro ATX |
Supported memory clock speeds | 5200 MHz |
Maximum internal memory | 192 GB |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
ECC сompatibility | Non-ECC |
Width | 243.8 mm |
Depth | 243.8 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | No |
Ethernet LAN | Yes |
LAN controller | Realtek RTL8125-BG |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Front panel audio connector | Yes |
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
BIOS Type | UEFI AMI |
RAID levels | 10 |
Raid Support | Yes |
Supported storage drive interfaces | M.2, SATA |

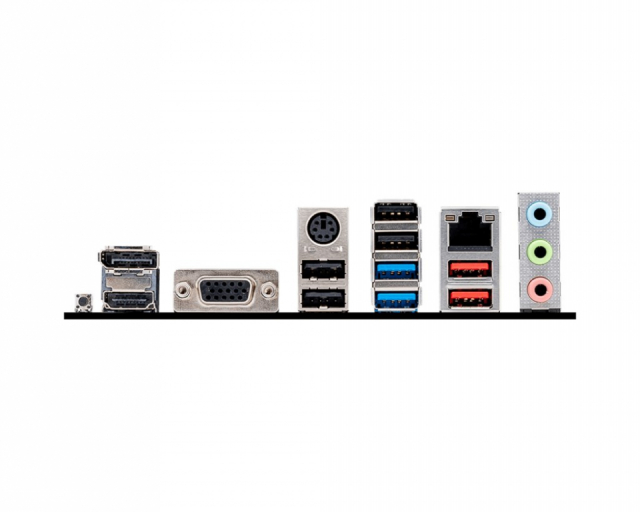

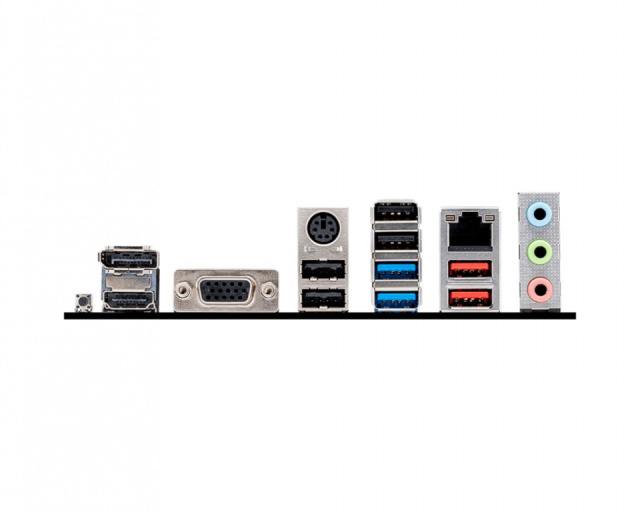

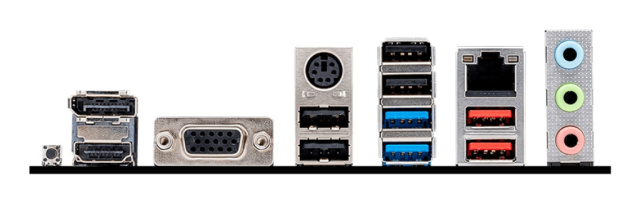

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
Line-in | Yes |
Microphone in | Yes |
USB 2.0 ports quantity | 4 |
HDMI version | 2.1 |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
